Immersion Heater Stainless Steel Cover Heating Tube Water Tank Brewing Water Heater
Immersion Heater Stainless Steel Cover Heating Tube Water Tank Brewing Water Heater
説明
Immersion Heater Stainless Steel Cover Heating Tube Water Tank Brewing Water Heater
Immersion Heater Stainless Steel Cover Heating Tube Water Tank Brewing Water Heater

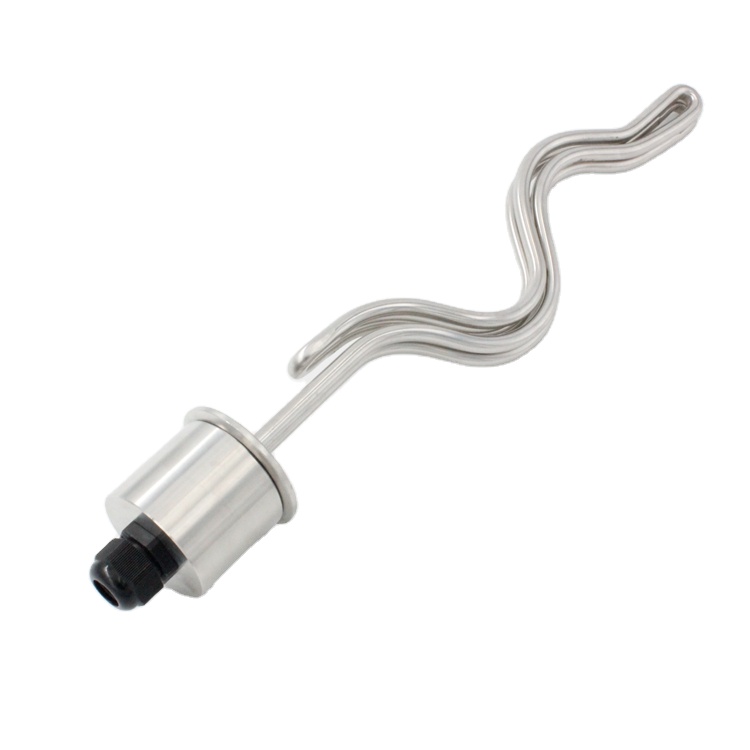

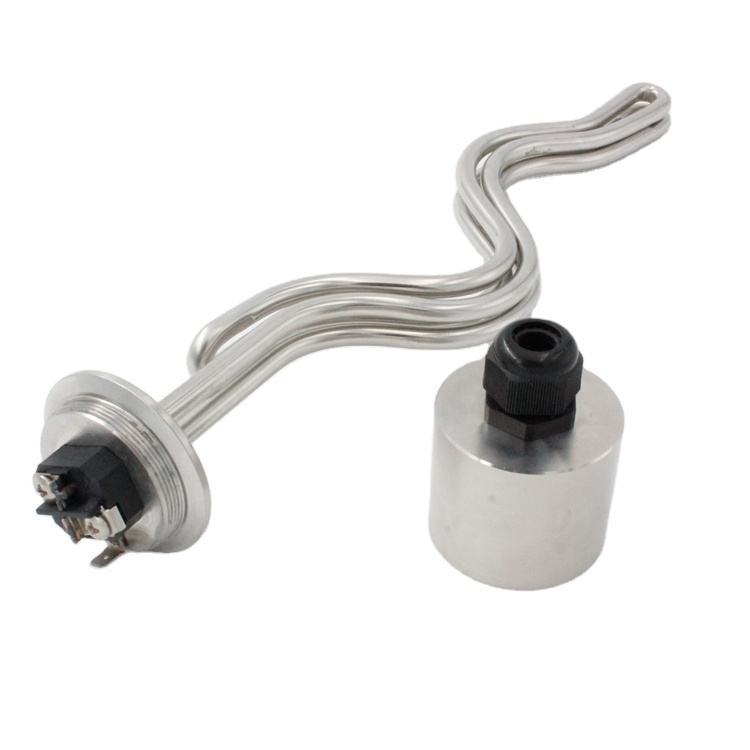

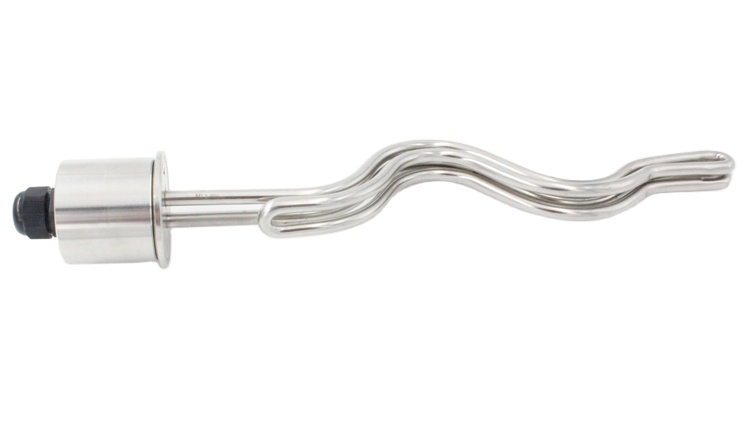

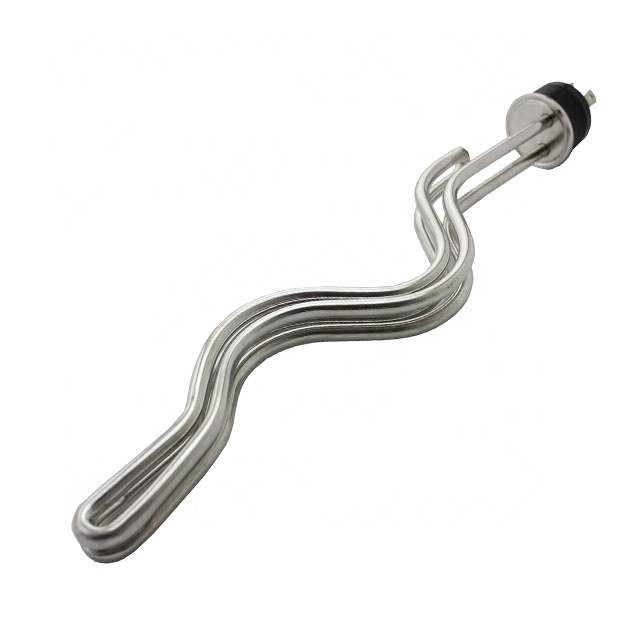

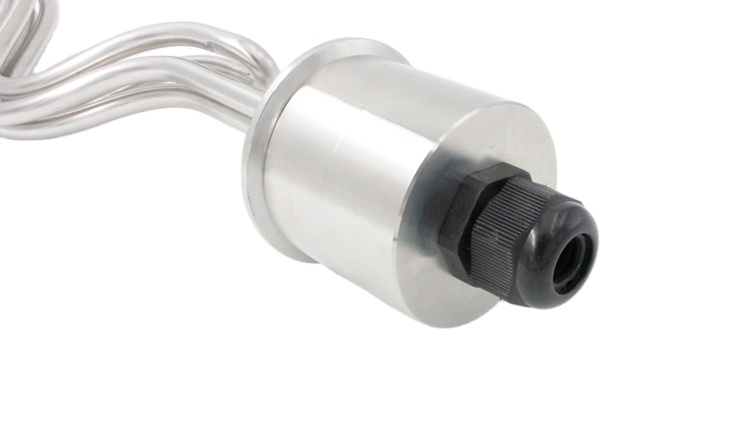

Immersion heating element are constructed by brazing or welding elements into a hex pipe thread. These are intended for direct immersion into fluids and gases.Immersion heating element is to be installed via a threaded port in the tank or vessel. Immersion heating element are available in a variety of pipe thread sizes and materials. Immersion heating element are offered in a number of materials suited to a variety of fluid heating applications. Terminal housings are available for indoor, outdoor and hazardous environments. Many options are available. Since we are a made to order company, we can offer a large selection of sizes and configurations.Please contact us for assistance with your application.
This product is mainly sales to the Occident Such as America and Canada, it’s mainly used in brewing equipment heating.to reduce it’s power density, choose ripple and foldback type, therefore it has much longer life.
仕様
Technical Parameter | |
チューブ径 | Φ6mm – φ20mm |
チューブの長さ | 200んん – 2000んん |
Length Tolerance | ±1.5% |
電圧 | 110V/220V/230V/240V/380V/415V |
ワット数 | Custom made heaters can be supplied with any requested wattage |
Heating Power | 100W – 10KW |
ワット数許容差 | +5% – 10% |
抵抗線 | Ni80Cr20 or Cr25AI5 |
Sheath Materials | 304 ステンレス鋼, , 310 ステンレス鋼, 316 ステンレス鋼, インコロイ 800, インコロイ 840 |
Surface Treatment | Polishing, coating, plating |
注文方法 ?Pls provide this informations as follows:(example)
1.Vottage :220/380V
2.ワット数 :6KW
3.長さ: 600んん
4.糸: 1 1/2″
5. 材料: ステンレス鋼, AISI 321 304, SUS 316L
応用
1. Livestock water tank deicer (low amp draw means you won’t drain your battery as fast)
2. For keeping dog, cat, and other domestic animals water from freezing
3. Standard American water heater element replacement
4. 水の予熱
5. キャンピングカー, Motor homes
6. Emergency hot water
7. Portable commercial, 産業用機械および装置
8. 車のバッテリーを使用してどこでもポータブル給湯が可能
9. Direct wind and solar applications
