Flexible 220v High Temperature Fiberglass Braid Strip Pipe Heating Belt
$6.42
説明
製品説明

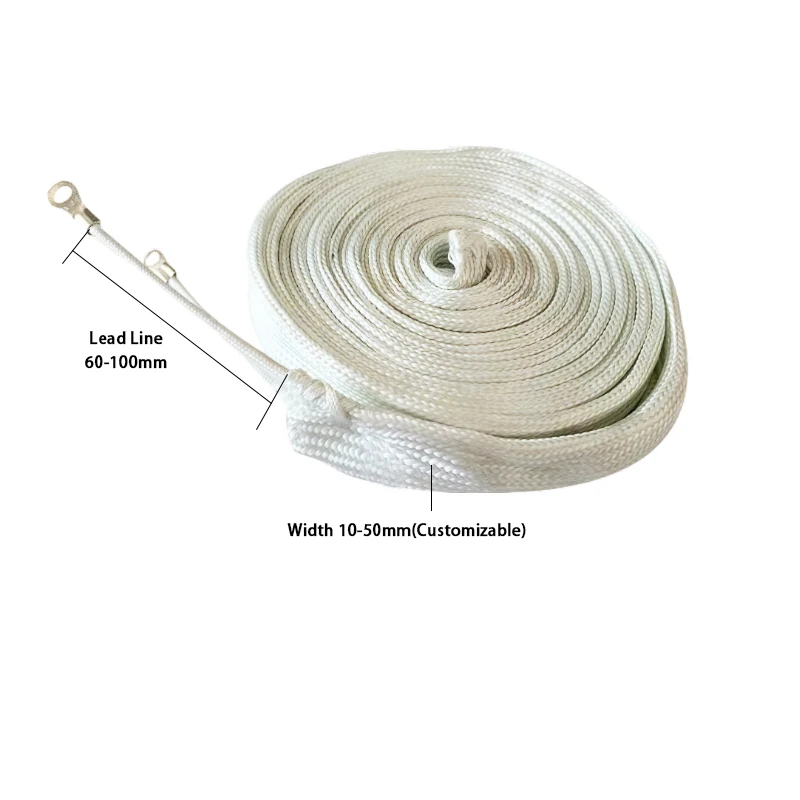

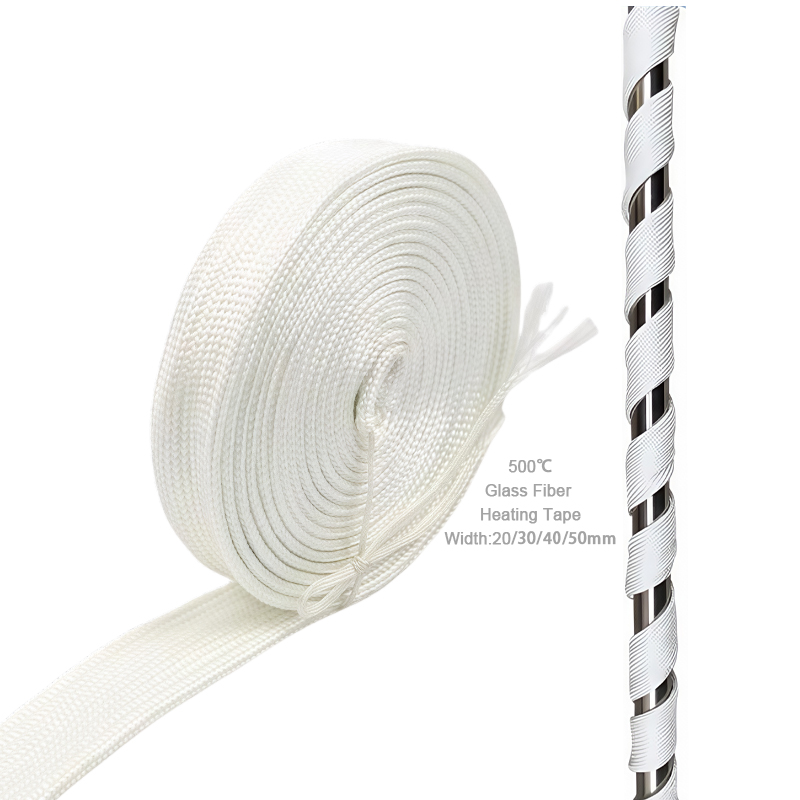

Fibergalss Electric Heating Cable
Fiberglass electric heating cable is suitable for heating and heat preservation of tanks, tubes, tanks and other containers ofvarious industrial equipments. It is mainly composed of electrothermal materials and insulating materials. The electrothermalmaterials are nickel-chromium alloy belts, which have fast heat generation and high thermal efficiency.
Long service life, the insulation material is multi-layer alkali-free glass fiber, with good temperature resistance and reliableinsulation performance. The utility model has the advantages of soft structure, can be directly wound on the surface of the heatedpart when used, and has uniform temperature, simple installation, convenient use, safety and reliability.
仕様
Structural Performance(1) It is mainly composed of nickel-chromium alloy wires and insulating material, and has fast heating speed, high heat efficiency and long service life.(2) Alkali-free glass fiber core rack is wound with electric heating wires, fiberglass is used as main insulation, the heatresistance performance is excellent, and the insulation performance is reliable.(3) It has great flexibility, and can be directly wound on a to-be-heated device, with good contact and uniform heating.Note: fiberglass heating cable do not have the functions of waterproof and moistureproof .
電圧 | 12V～480V | Max Temperature | 500 程度 |
ワット数 | 10w/m 15W/m~customized | ||
widthSize | 15mm 20mm 30mm and so one | ||
Max Size | 30メートル | ||
コントローラ | ダイヤル | ダイヤル | Anti-explosion |
プラグ | US/ British….. | ||
熱電対の種類 | K/J/Without |
インストール手順

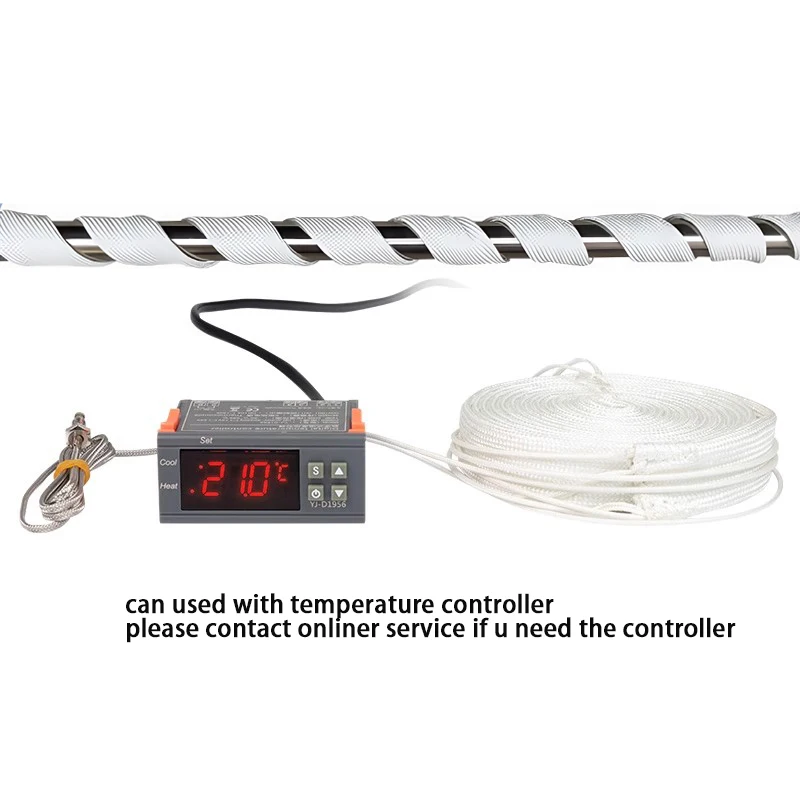

Step 1: Pipe Surface PreparationPrepare surface to be heated: Wipe the surface making sure there is no foreign material, like liquid, on the surface. Foreignmaterial inhibits heat transfer and liquid can damage select models of heating tape (つまり. HighTemperature Heating Tapes).Make a visual inspection of heating tape: We recommend that you replace the heating tape if it becomes torn or damaged. Damaged heating tape is a safety hazard and will not operate correctly.Step 2: Heating Tape Installation (wrap)Heating tape can be installed on nearly any surface due to its flexibility. Spiral wrap the heating tape onto the surface to beheated so that the length of one entire side of the heating tape is in full contact with the surface .The distance between spiral wraps is dependent on the uniformity requirements and the amount of available heating tape. A minimum distance of 1/8” is required between spiral wraps to avoid damage to the heating tape.Attach the heating tape to the surface by either using built-in tie straps, high-temperature adhesive tape or mechanical clamping devices that will not cause damage to the heating tape.Ensure the heating tape is not kinked, twisted, or hanging free from the surface.Do not overlap heating tape on itself.This can cause damage to the heating tape due to overheating.Step 3: Connecting Your Heating Tape to a Temperature Controlling DeviceYour heating tape must be connected to an external temperature control device. Ensure your temperature controller is protected by a properly sized circuit breaker or fuse. Use of a ground fault circuit interrupter is highly recommended and may be required for your installation.For proper temperature control, secure a thermocouple, RTD, or other sensing device with one strip of adhesive tape so that it is in close proximity to the heater to prevent overheating.
よくある質問
1. 私たちは誰ですか?私たちは江蘇省に拠点を置いています, 中国, start from 2021,sell to North America(60.00%). 合計約あります 5-10 私たちのオフィスの人々。2. 品質をどのように保証できますか?量産前には必ず試作サンプルを作成します;出荷前に必ず最終検査を行う;3.私たちから何を買えますか?heater element,Ventilation Products4. なぜ他のサプライヤーからではなく当社から購入すべきなのか?we have passed the industry qualification certification to protect the product quality. We provide one-stop procurement services to reduce the procurement cost for customers.5. 私たちはどのようなサービスを提供できるのか?受け入れられた配送条件: FOB,EXW,DDP；受け入れられる支払い通貨:米ドル;受け入れられる支払いタイプ: T/T,信用状,D/P D/A;話される言語:英語,中国語,フランス語
