Far-infrared Heating Wire Flexible Resistance Carbon Fiber Heating Cable Warm Floor Wire for Under Floor Heating System
説明
製品説明
Carbon Fiber Heating Wire Electric Heating Wire with Far-infrared for Floor Heating Electric Blanket Adjustable Heating Element
This product uses 99.9% high-purity carbon fiber filaments as the heating substrate. The wire diameter is precisely controlled within 0.8 – 2.2んん. The outer layer is wrapped with a silicone insulation layer with a temperature resistance of over 200℃ and a flame-retardant PVC sheath. It combines flexibility and anti-aging properties, and can withstand long-term ground pressure and temperature variations.
商品名 | Silicone wire heating system |
Insulating material | Silicone rubber |
Max enduring temperature | 180C degrees |
Heating temperature | based on the using length |
漏れ電流 | 0.05mA/m |
直径 | 3±0.1 MM (Thicker and Safer) |
色 | 白 |
What is the resistance per meter?1K=450Ohm/m, 3K=133hm/m, 6K=6Ohm/m, 9K=43Ohm/m, 12K=33Ohm/m, 15K=24Om/m, 18K=21Ohm/m, 24K=17Ohm/m, 36K=12Ohm/m, 48K=8.5Ohm/mThe difference between silicone and PTFEPTFE/PFA/FEP carbon fiber heating wireAdvantages: Wear, corrosion resistance, no smellDisadvantages: Relative to the silicone are not softSilicone carbon fiber heating wireAdvantages: Resistant to bending, softDisadvantages: There is smell
How to calculated power？Voltage*Voltage÷resistance=electric power12K=33ohm/meterFor example, using 10m 12K carbon fiber cable on 220V, the power is:220V*220V÷（10meters*33Ω）=150WFor example, using 15m 12K carbon fiber cable on 220V, the power is:220V*220V÷（15meters*33Ω）=100WThe longer length, the smaller power, and lower heating temperature.Application:Floor heating system residential, villas, apartments, schools, hospitals, shopping malls, hotels, government institutions,gymnasiums, factories,venues, greenhouses insulation, aquaculture insulation and other place
詳細画像

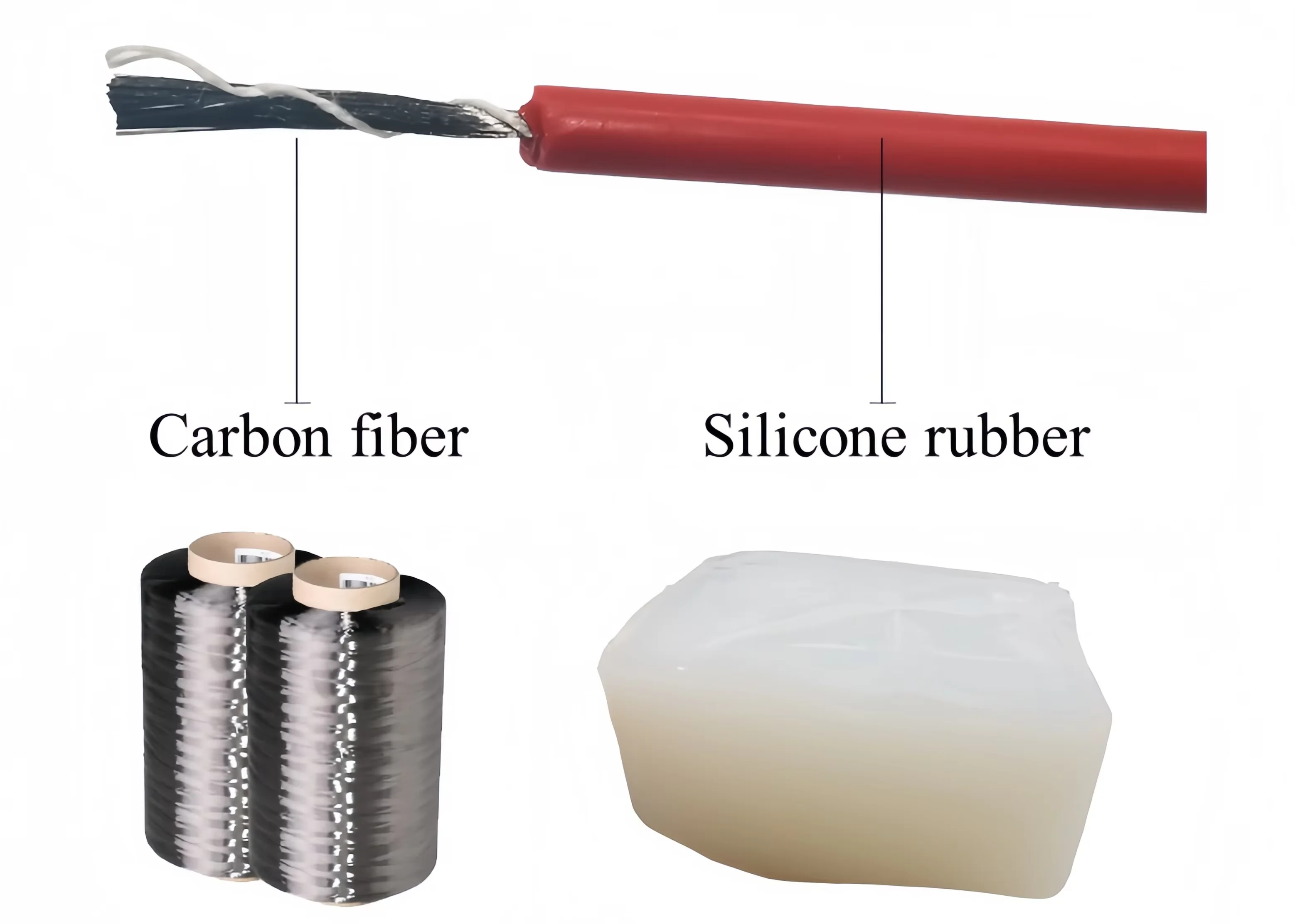

Product structure
Our core competencies:
1.Vertical Manufacturing Expertise:The factory which we cooperated with operating professional production facilities, they maintain full control over Research and development. This vertical integration ensures stringent quality compliance (ISO 9001, CE,CQC,Rohs, UL) and enables competitive pricing without intermediaries.
2.Dual-Channel Procurement Solutions:Direct OEM Services, Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
3.Direct OEM Services: Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
4.Technical Partnership Model:Beyond transactional engagements, we provide ventilation system design and Energy efficiency audits for heating solutions,multilingual after-sales technical support.
5.Innovation and Sustainability:Investing 8% of annual revenue in R&D to be committed to creating better new products.
2.Dual-Channel Procurement Solutions:Direct OEM Services, Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
3.Direct OEM Services: Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
4.Technical Partnership Model:Beyond transactional engagements, we provide ventilation system design and Energy efficiency audits for heating solutions,multilingual after-sales technical support.
5.Innovation and Sustainability:Investing 8% of annual revenue in R&D to be committed to creating better new products.
Customize products of various lengths
Please provide the following dimensions:
1.The reserved size of the ceiling opening;2.The facial dimensions of this product;
3.The color you need,usually white or black;4.Any questions you want to know.
