Corrosion-resistant Liquid Level Controller 304 Stainless Steel Single Float Switch Water Level Controller Liquid Level
説明
製品説明
Corrosion-resistant Liquid Level Controller 304 Stainless Steel Single Float Switch Water Level Controller Liquid Level

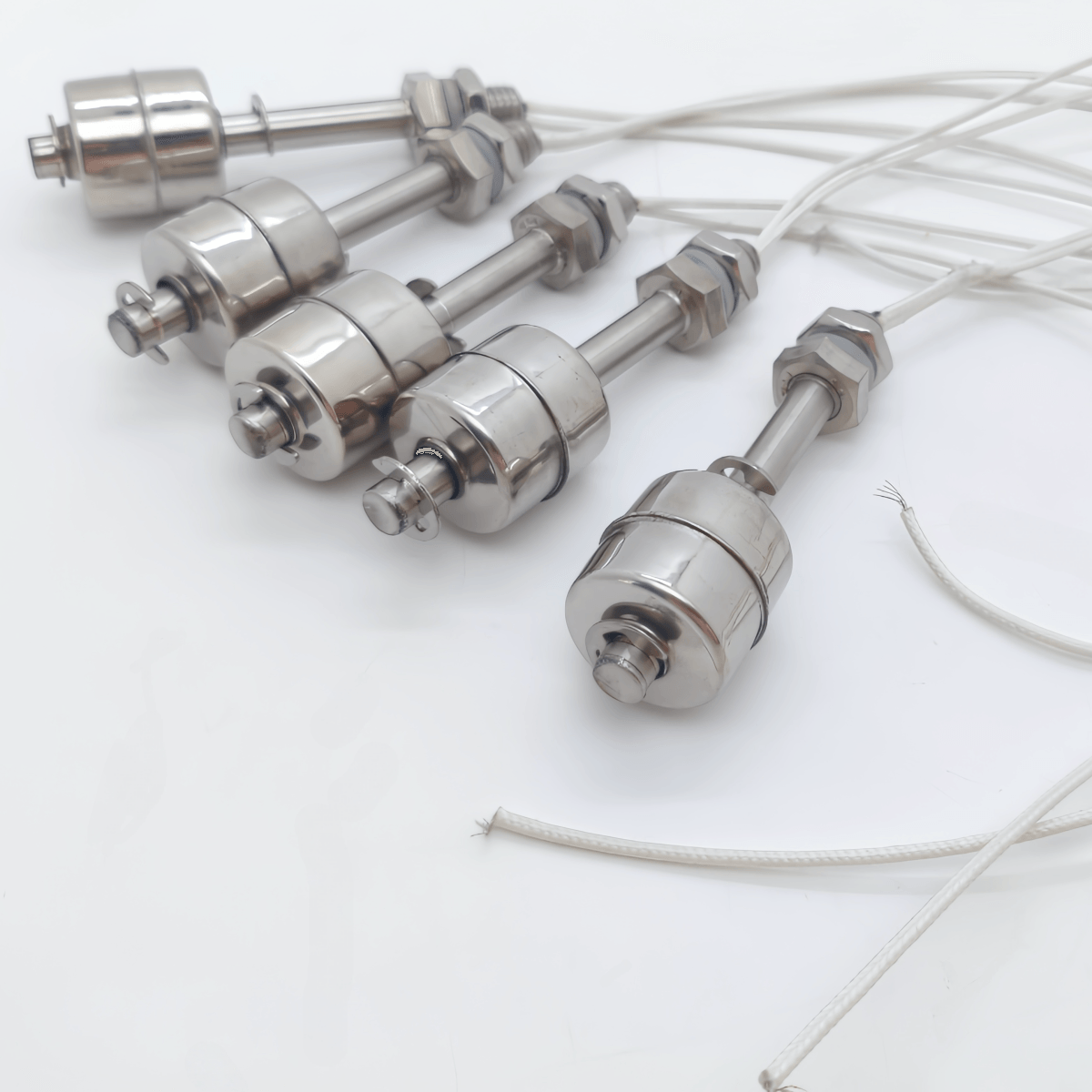

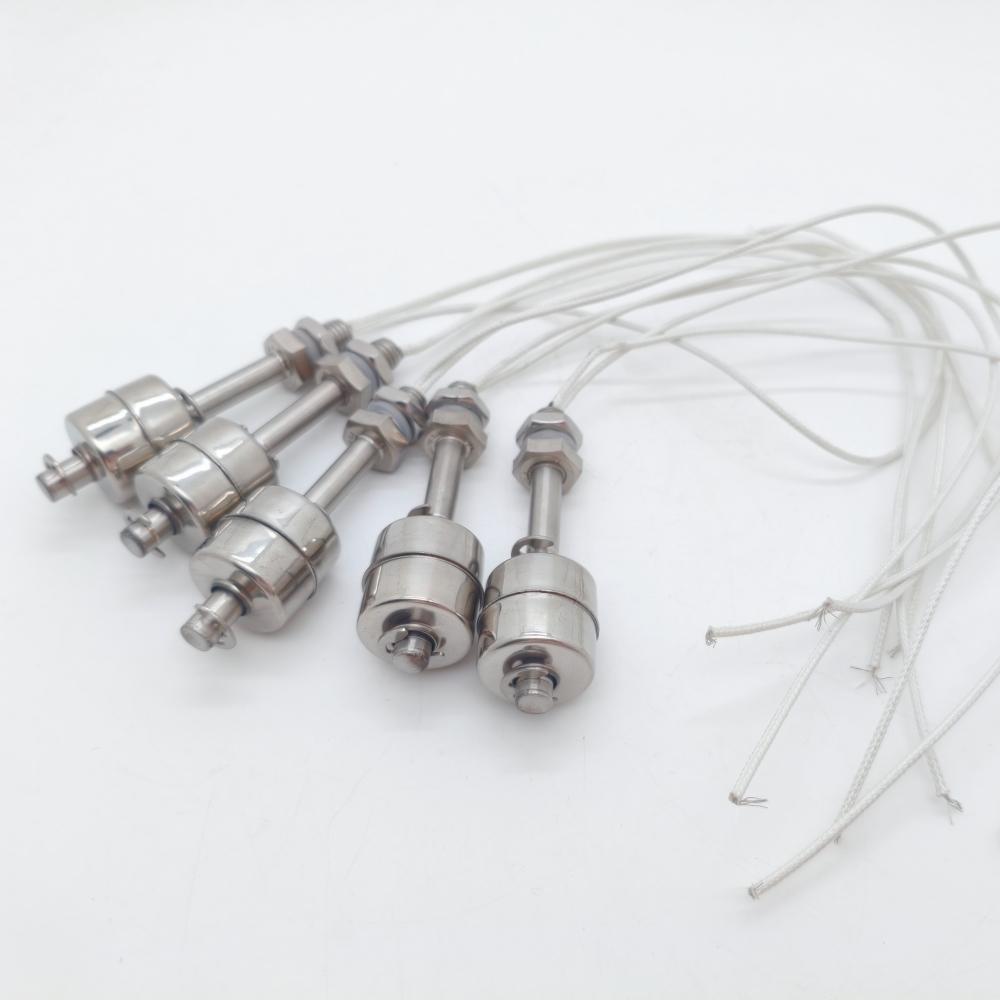

の 304 stainless steel single float level controller is an industrial-grade automation component specifically designed for precise monitoring and control of liquid levels. The core material is made of high-quality 304 ステンレス鋼, which possesses excellent acid and alkali resistance, corrosion resistance, and mechanical strength. It can be widely applied in various complex working conditions for liquid level management, providing stable and reliable water level control solutions for liquid storage, transportation, and processing systems.
Installation precautions for float switches
√ The installation position should be far away from the water inlet; otherwise, the switch may malfunction due to the fluctuation of the water inlet.
√ The load of the controlled circuit must match the contact capacity of the float switch.
√ The specific gravity of the liquid being measured must be greater than that of the float ball.
√ The action point of the float ball has been adjusted at the factory according to the customer’s order requirements. Please do not adjust the position of the float ball at will.
√ The load of the controlled circuit must match the contact capacity of the float switch.
√ The specific gravity of the liquid being measured must be greater than that of the float ball.
√ The action point of the float ball has been adjusted at the factory according to the customer’s order requirements. Please do not adjust the position of the float ball at will.
仕様
温度 | Voltage range | L |
High temperature | 0-220V | 45んん |
High temperature | 0-220V | 75んん |
High temperature | 0-220V | 100んん |
High temperature | 0-220V | 150んん |
High temperature | 0-220V | 200んん |
High temperature | 0-220V | 250んん |
High temperature | 0-220V | 300んん |
High temperature | 0-220V | 350んん |
High temperature | 0-220V | 400んん |
High temperature | 0-220V | 450んん |
High temperature | 0-220V | 500んん |
High temperature | 0-220V | 600んん |
温度 | Voltage range | L |
Room temperature | 0-110V | 45んん |
Room temperature | 0-110V | 75んん |
Room temperature | 0-110V | 100んん |
Room temperature | 0-110V | 150んん |
Room temperature | 0-110V | 200んん |
Room temperature | 0-110V | 250んん |
Room temperature | 0-110V | 300んん |
Room temperature | 0-110V | 350んん |
Room temperature | 0-110V | 400んん |
Room temperature | 0-110V | 450んん |
Room temperature | 0-110V | 500んん |
Wiring method
注記:
The single float switch is mainly used for single liquid level alarm. It can be adjusted to either the “normally open” または “normally closed” state by yourself, and the wiring does not need to be changed.
If you need to control the upper and lower range of the liquid level, two float switches for upper and lower control are required. The wiring diagram can be found in: Double Float Switch.
If you need to control the upper and lower range of the liquid level, two float switches for upper and lower control are required. The wiring diagram can be found in: Double Float Switch.
応用
This product can be used in water dispensers, purifiers, water heaters, solar energy systems, air conditioners and humidifiers, coffee machines, small refrigerators, 等. Anti-dry-burning water level sensors for water heating equipment are widely used in automobiles, industrial equipment, agricultural equipment, and household appliances.
パッキング & 配達
Product Packaging Solutions
1.Our services include individual unit packaging with optional labeling to streamline operations and reduce time costs.
2.We provided fumigated solid wood pallets for heavy-duty exports and durable plywood crates for lighter loads, exempt from fumigation.
3.All solutions adhere to international trade standards, including certification for shipments to the US, カナダ, and the EU, ensuring seamless customs clearance and pest control compliance.
2.We provided fumigated solid wood pallets for heavy-duty exports and durable plywood crates for lighter loads, exempt from fumigation.
3.All solutions adhere to international trade standards, including certification for shipments to the US, カナダ, and the EU, ensuring seamless customs clearance and pest control compliance.
Our core competencies:
1.Vertical Manufacturing Expertise:The factory which we cooperated with operating professional production facilities, they maintain full control over Research and development. This vertical integration ensures stringent quality compliance (ISO 9001, CE,CQC,Rohs, UL) and enables competitive pricing without intermediaries.
2.Dual-Channel Procurement Solutions:Direct OEM Services, Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
3.Direct OEM Services: Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
4.Technical Partnership Model:Beyond transactional engagements, we provide ventilation system design and Energy efficiency audits for heating solutions,multilingual after-sales technical support.
5.Innovation and Sustainability:Investing 8% of annual revenue in R&D to be committed to creating better new products.
2.Dual-Channel Procurement Solutions:Direct OEM Services, Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
3.Direct OEM Services: Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
4.Technical Partnership Model:Beyond transactional engagements, we provide ventilation system design and Energy efficiency audits for heating solutions,multilingual after-sales technical support.
5.Innovation and Sustainability:Investing 8% of annual revenue in R&D to be committed to creating better new products.
よくある質問
1. Q:私たちは誰ですか?
あ:Our factory was established in 1996, and the foreign trade sales team was established in 20212.Q: 独自のフォワーダーを使用できますか?
あ: もちろん. We can ship it to them.
3.私たちが提供できるサービス?受け入れられた配送条件: FOB,CFR,CIF,EXW,速達便；受け入れられる支払い通貨:米ドル,HKD,人民元;受け入れられる支払いタイプ: T/T, ペイパル, 現金;話される言語: 英語,中国語
4. Q: 注文方法?
あ: Please email your order to us and we will confirm with you.
見積前, 製品情報を確認させていただきたいのですが, such as size and quantity. いかなる場合でも, 電子メールまたはオンラインメッセージで直接ご連絡ください.
5. Q: 品質をどのように保証するか?
あ: 私たちは生産の品質管理基準を厳格に遵守しています; 毎回ワークショップをチェック 2 時間; 独自の研究開発チームと研究所を持っています.
6. Q:私たちから何を購入できますか?
あ: Electrical appliances and Ventilation Product; 他にニーズがあれば, お客様の購入をお手伝いすることもできます.
