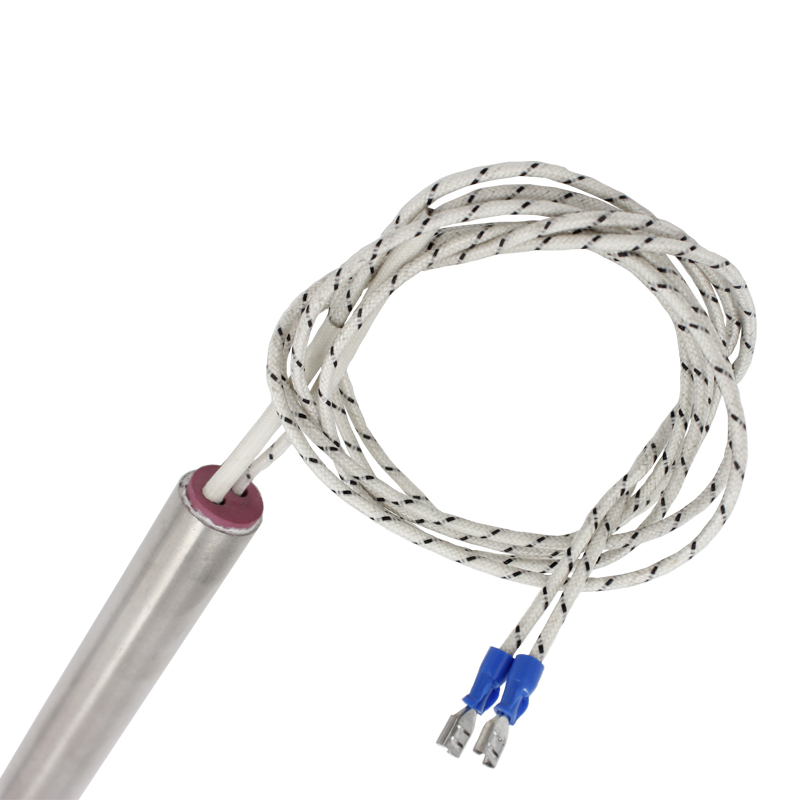

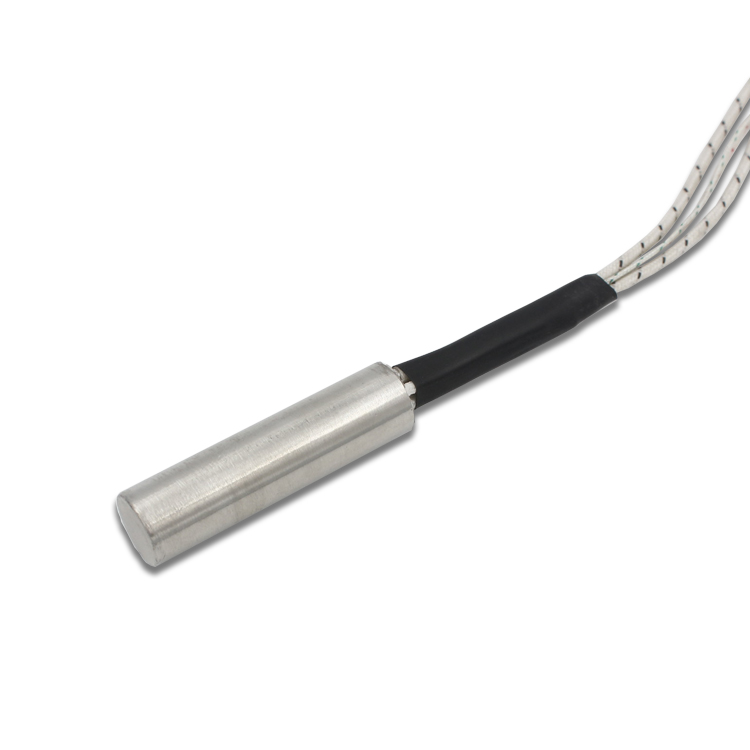

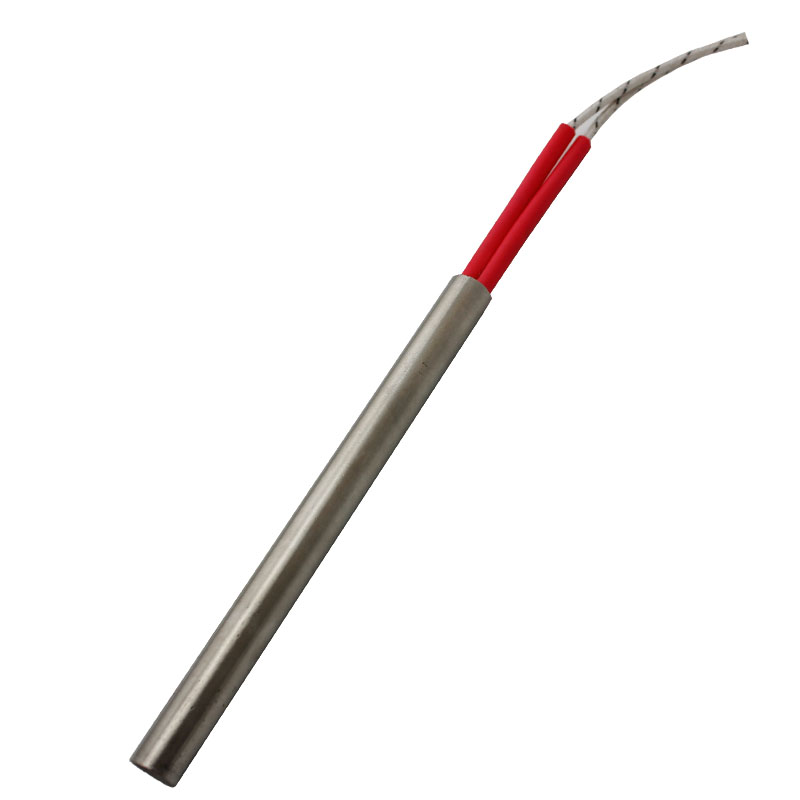

High Temperature 220v 400w Electric Resistance Single End Cartridge Heater Element
Cartridge Heater Element is a small, cylindrical heating device used for high-temperature applications in various industries such as plastics, 梱包, and automotive.
説明
製品説明
220v 400w Electric Resistance Single End Cartridge Heater Element
A cartridge heater is a tube-shaped, industrial heating element that can be inserted into drilled holes. Cartridge heaters provide localized and precise heating and are commonly used in the heating process industry.
Typically, cartridge heaters are used to heat a metal block from the inside and can be custom manufactured to a specific watt density based on the requirements of the application.Cartridge heaters are most frequently used for heating metal parts by insertion into drilled holes. For easy installation, the heaters are made slightly undersize relative to their nominal diameter.
Cartridge Heater Element Product Features
1. Simple structure, high heating power
2. Easy and economical installation
3. Designed and manufactured with good materials
4. Uniform temperature
5. Accurate dimensions, maximum heat transfer
6. Easy maintenance and replacement 7. CE & RoHS approved
Cartridge Heater Element Customization Options
1. Built-in thermocouple 2. 電圧 (phase ) & 力 & watt density3. Non-heating part length4. チューブ径 & length5. Sheath material6. Lead/ lead protection7. Seal material 8. Installation – flange/ locating ring/ screw9. Finned 10. Inner structure – e.g. custom distributed wattage
仕様
Outer Sheath Material | ステンレス鋼 304, 321, 316; インコロイ 800; インコロイ 840 |
Resistance Heating Wire | Nichrome 8020 抵抗線 |
ワット数許容差 | +5%, -10% |
Resistance Tolerance | +10%, -5% |
Voltage Available | 12 に 600 volts customied |
Maxium Heating Temperature | 800 Degree Celsius |
Length Tolerance | ±1mm |
Diameter Tolerance | ±0.02mm |
Standard Cold Size | 5-10んん |
絶縁抵抗 (寒い) | ≥ 500 MΩ |
Maxium Leakage Current (寒い) | ≤0.5 mA |
Lead Orientation | あ) Crimped on Leads : PTFE/Fiberglass Flexible lead crimped on solid pin emerging from the Heater.B) Swaged in Leads : Flexible Fiber Glass or PTFE leads emerging from within the heater |
応用
Cartridge heaters are most frequently used for heating dies, platens, molds, and other metal parts by insertion into drilled holes. They can also be used in liquid immersion applications. Below are some examples of specific applications: * Heating gases and liquids * Hot runner molds * Hot stamping * Laminating presses * Medical equipment * Semi-conductor * Plastic molding * Scientific equipment
