WZP-187 PT100 Thermocouple CU50 M12 Thermocouple Stainless Steel Waterproof Temperature Sensor Probe 1-5M
WZP-187 PT100 Thermocouple with good repeatability and stability, suitable for precise temperature measurement in various industries.
Descrizione
WZP-187 PT100 Thermocouple CU50 M12 Thermocouple Stainless Steel Waterproof Temperature Sensor Probe 1-5M
Descrizione del prodotto
This product is PT100 type stainless steel waterproof thermocouple, and can withstand a wide temperature range of -200 ~ 450. Adopted high-quality three-core high temperature, safe and durable shield wire. With great processing treatment, Argon arc welding seal, excellent sealing effect.Industrial thermal resistance is generally Pt100, Pt10, Cu50, Cu100, platinum thermal resistance temperature measurement range is generally -200 ~ 800℃, often used in power, industria chimica, injection molding, packaging, food, incubator, oven temperature measurement.
Caratteristiche:①High precision;②High sensitivity; ③High temperature resistance; ④Fast response;
⑤Good shockproof effect.
Specifica
Indexing number | PT100 |
Lunghezza del cavo | 1.5M, 2M (other lengths may be customized) |
Mounting thread | M12*1.5 |
Accuracy error | più o meno 0.5% (100 degree error 0.5 degree) |

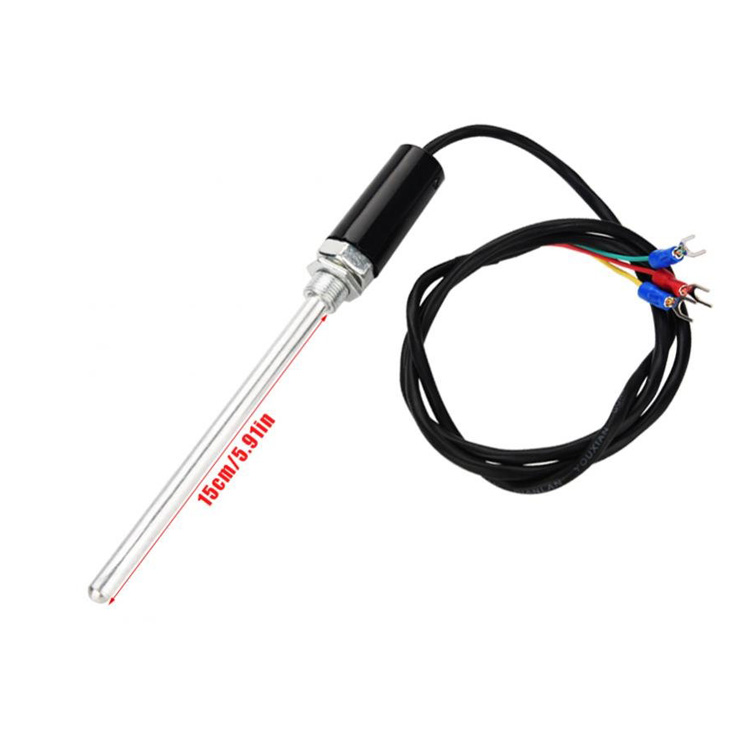

Insert depth | (The length of the metal part of the probe) specifications are as follows: 7*50, 7*100, 7*150, 7*200, 7*300, 7*500 (if you need other sizes, please explain) |
Intervallo di temperatura | -200 ~ 400℃ (long-term working temperature is up to 350 gradi, not easy to damage) |
Promemoria:
Nota: The default probe is aluminum sheath, stainless steel should be specified separately
The thermal response time shall not exceed that specified in the following table :(s) | ||
Diametro(mm) | Termocoppia | |
Ungrounded | Grounded | |
2.0 | 0.5 | 0.4 |
3.0 | 1.2 | 0.6 |
4.0 | 2.5 | 0.8 |
5.0 | 4.5 | 1.2 |
6.0 | 6.0 | 2.0 |
8.0 | 8.0 | 4.0 |
