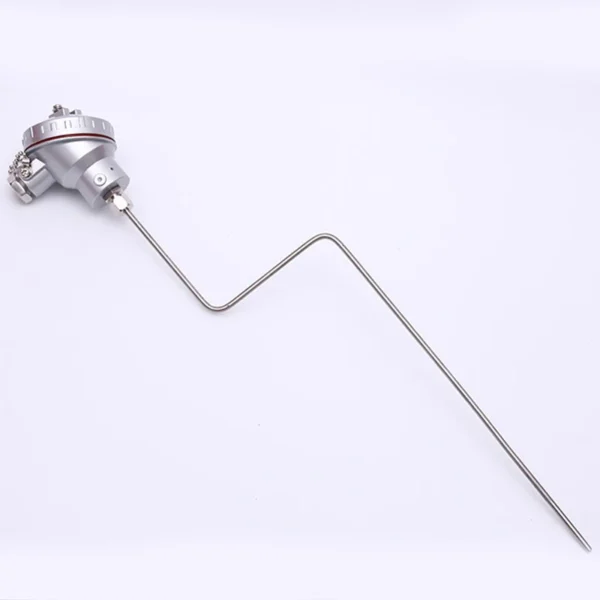

0-1300c Flexible Bendable Sheath WRNK-191 131 291 K Type Thermocouple 0-1200c Armored Mineral Insulated Thermocouple 5*300mm
0-1300c Flexible Bendable Sheath WRNK-191 131 291 K Type Thermocouple 0-1200c Armored Mineral Insulated Thermocouple 5*300mm
Descrizione
0-1300c Flexible Bendable Sheath WRNK-191 131 291 K Type Thermocouple 0-1200c Armored Mineral Insulated Thermocouple 5*300mm
Descrizione del prodotto
A Type K thermocouple refers to any temperature sensor containing Chromel and Alumel conductors, that meets the output requirements as stated in ANSI/ASTM E230 or IEC 60584 for Type K thermocouples. This may be an immersion sensor, a surface sensor, wire or another style of sensor or cable.
Specifica
ConductorMaterial | Tipo | La laurea | Continuous using temperature | Short-term using temperature |
PtRh10-Pt | WRP | S | 0-1300C | 0-1600C |
PtRh30-PtRh6 | WRR | B | 0-1600C | 0-1800C |
PtRh13-Pt | WRQ | R | 0-1300C | 0-1600C |
NiCrSi-NiSi | WRM | N | 0-1000C | 0-1100C |
NiCr-NiSi | WRN | K | 0-900C | 0-1000C |
NiCr-Konstantan | WRE | E | 0-600C | 0-700C |
Fe-Konstantan | WRF | J | 0-500C | 0-600C |
Cu-Konstantan | WRC | T | 0-350C | 0-400C |
Imballaggio & Consegna
Per garantire meglio la sicurezza delle tue merci, professionale, ecologico, Verranno forniti servizi di imballaggio convenienti ed efficienti.
