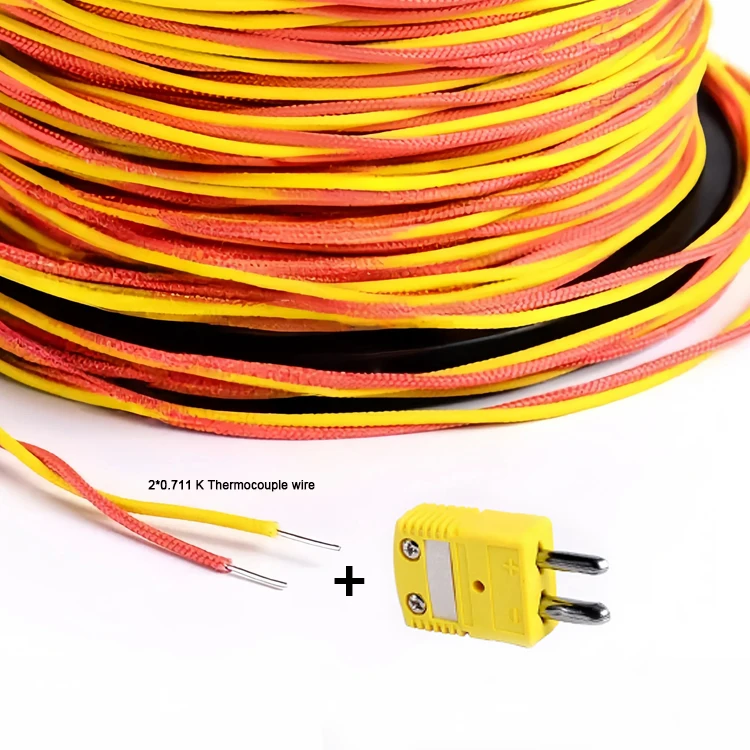

0.711mm Glassfiber Insulated Thermocouple Wire Yellow Red Type K Extension Cable 600C High Temp PWHT Accessories Cable
0.711mm Glassfiber Insulated Thermocouple Wire Yellow Red Type K Extension Cable 600C High Temp PWHT Accessories Cable
Descrizione
Type K thermocouple wire, insulated with high temperature glass braid, is used to convert the thermal energy at the hot junctionof thermocouple to an electrical mV signal which can then be used by temperature control and recording instruments to accuratelyrecord and control the temperature of the item being heat treated. – Type K – Grade A, Precisione +/- 1.1°C- Two core conductors insulated by glass-fiber twised together- Materiale : 1/0.71mm NiCr & 1/0.71mm NiSi, 1/0.65mm NiCr & 1/0.65mm NiSi,1/0.51mm NiCr & 1/0.51mm NiSi and 0.8mm wire.

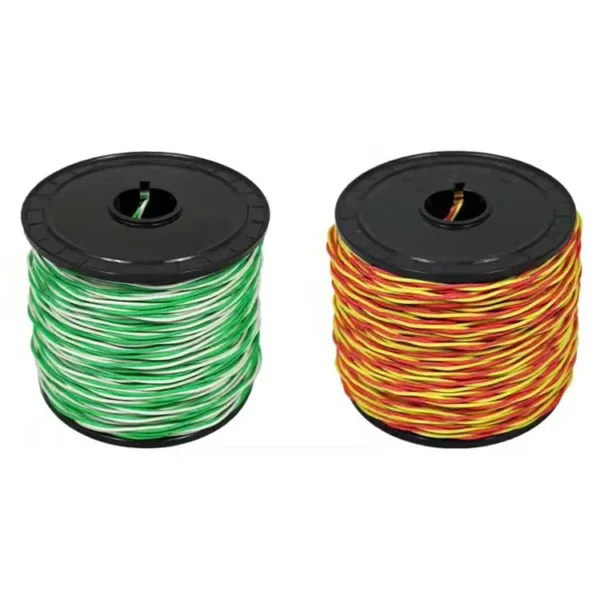

– Max Working Temperature : 800°C- Conforms to Standard : GB/T 2614-2010, BSEN 60584-2, ASTM E230-1993, ANSI MC96.1-1982, CEI 584-2:1982- Jacket Colour : Red (-) / Yellow (+), or Green(-) / Bianco (+)Imballaggio: come in 100m/roll Application: 1. Heating – Gas burners for ovens2. Cooling – Freezers3. Engine protection – Temperatures and surface temperatures4. High temperature control – Iron casting
Item Name | Type K Thermocouple Cable |
Conductor Material | +Chromel -Alumel |
Conductor Dia | 2*0.71mm(±0.02mm) |
Insulated material and Thickness | High Temperature Fiberglass (600℃,Max 700℃) 0.25mm |
Insulated Diameter | 1.2mm(±0.1mm) |

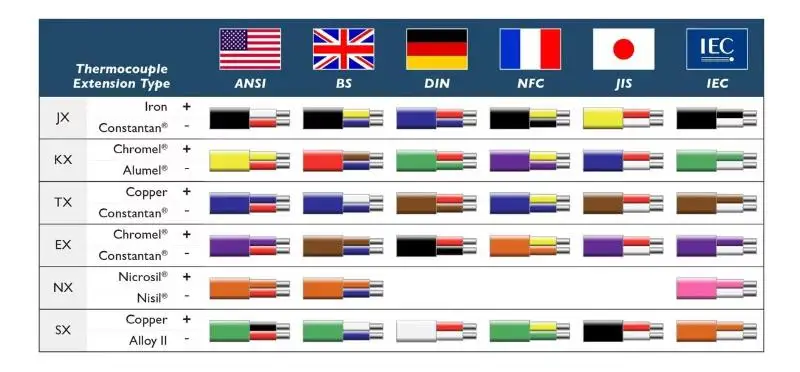

Insulated Color | ANSI(+Yellow -Red ) |
Finished Cable Diameter | 1.4mm*2.85mm (±0.2mm) |
Package | 100m/ roll |
Precisione | Class I (T *0.4%) |
Materiale | PTFE | PFA | PVC | Fibra di vetro | Silicio | Capitano | Fibra di quarzo |
Temp. massima(°c) | 260 | 260 | 108 | 400 | 200 | 400 | 800 |
Applications* Metallurgy* Chemical industry, petroleum* Power generation* Defense and scientific research* Cables for connection between thermocouples and temperature display instrument.Features1) Continuous use up to 200℃2) Short term use up to 250℃3) Excellent heat, chimico, abrasion and moisture resistance4) Provides accurate temperature measure with high temperature stability5) Calibration test report is available
