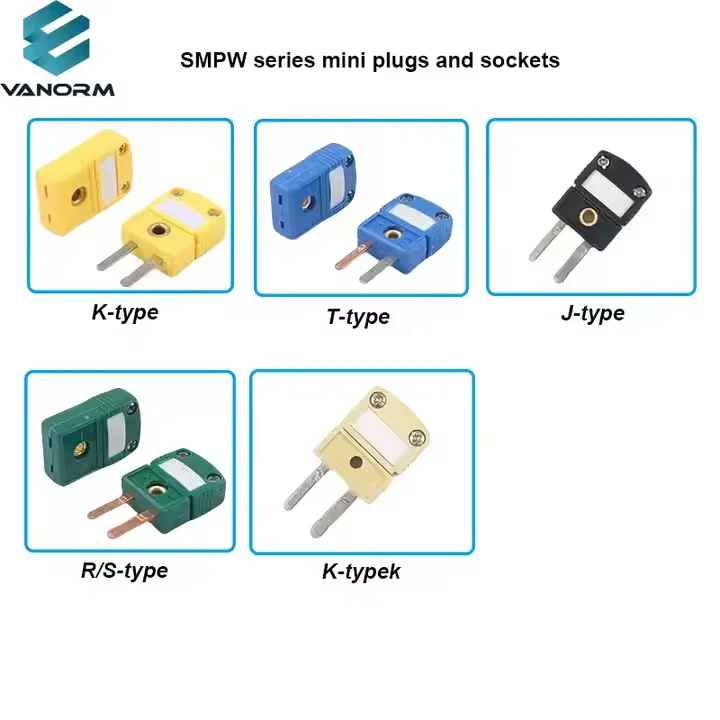

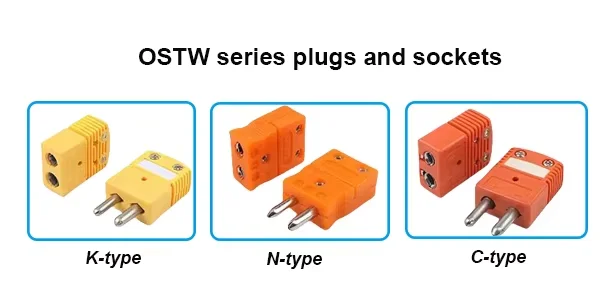

Round and Mini Plugs and Sockets Temperature-sensing Wire Connectors Male and Female Connectors for K Type Thermocouple Wire
Opis
Opis proizvoda

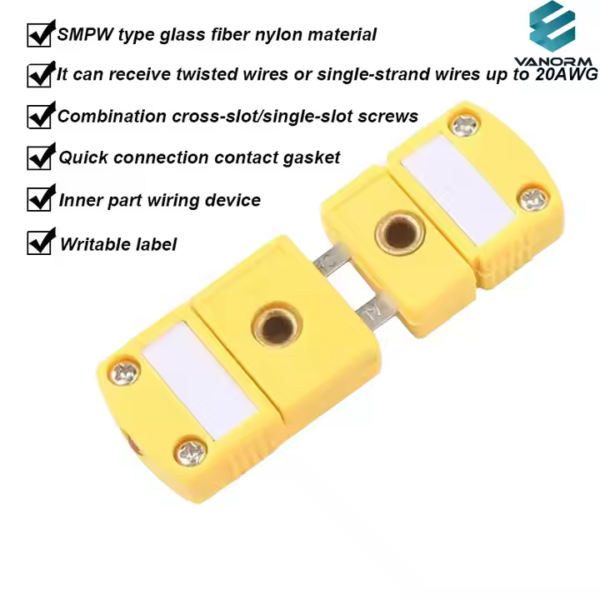

Product advantages

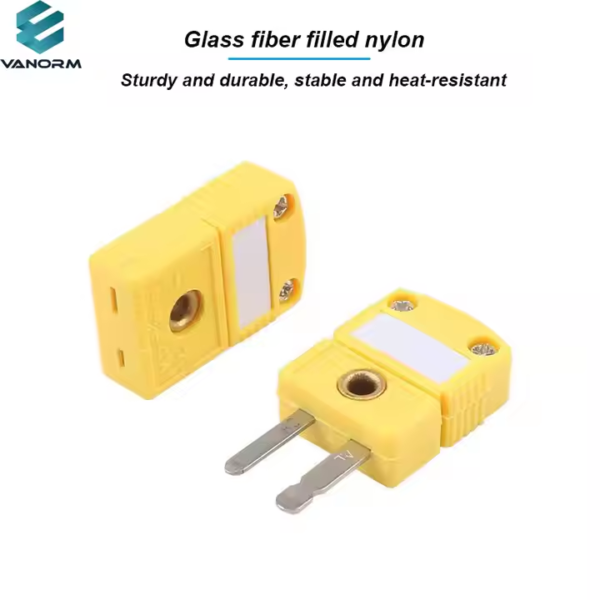

1.SMPW type glass fiber nylon material;
2.Quick connection contact gasket;
3.Combine cross-slot/single-slot screws
4. It can receive twisted or single-strand wires up to 20AWG
5. Internal wiring device
6.Writable labels
The sensor adopts a T-shaped thin slice insert probe crafted with advanced technology, which is extremely thin, with the thinest part reaching 0.1mm. It can closely adhere to the surface of various objects, whether it is a flat metal sheet, a pipe or container with a certain curvature, or even a tiny electronic component, achieving seamless contact to ensure accurate measurement of surface temperature. The thermal interference to the object under test is minimized.
Specifikacija
ConductorMaterial | Tip | Diplomiranje | Continuous using temperature | Short-term using temperature |
PtRh10-Pt | WRP | S | 0-1300C | 0-1600C |
PtRh30-PtRh6 | WRR | B | 0-1600C | 0-1800C |
PtRh13-Pt | WRQ | R | 0-1300C | 0-1600C |
NiCrSi-NiSi | WRM | N | 0-1000C | 0-1100C |
NiCr-NiSi | WRN | K | 0-900C | 0-1000C |
NiCr-Konstantan | WRE | E | 0-600C | 0-700C |
Fe-Konstantan | WRF | J | 0-500C | 0-600C |
Cu-Konstantan | WRC | T | 0-350C | 0-400C |
Product advantages★ High-precision measurement: Based on the principle of K-type thermocouples, it is composed of nickel-chromium (positive pole) and nickel-silicon (negative pole) alloys, featuring excellent thermoelectric performance.
★ Rapid response: The unique structural design endows the sensor with an extremely small heat capacity, resulting in extremely low thermal inertia.
★ Strong stability:Made of high-quality materials and undergoing strict quality inspection and process control, it features excellent vibrationresistance, shock resistance and corrosion resistance.
Pitanja
1. Q:Tko smo mi?
A:Naša tvornica osnovana je u 1996, a tim za prodaju vanjske trgovine osnovan je 20212.Q: Možemo li koristiti vlastitog otpremnika?
A: Naravno. Možemo im ga poslati.
3.Koje usluge možemo pružiti?Prihvaćeni uvjeti isporuke: FOB,CFR,CIF,EXW,Ekspresna dostava；Prihvaćena valuta plaćanja:USD,HKD,CNY;Prihvaćena vrsta plaćanja: T/T, PayPal, Unovčiti;Govorni jezik: Engleski,kineski
4. Q: Kako mogu naručiti?
A: Pošaljite nam svoju narudžbu e-poštom i mi ćemo je potvrditi s vama.
Prije kotiranja, željeli bismo s vama potvrditi informacije o proizvodu, kao što su veličina i količina. U svakom slučaju, pleasecontact us directly via email or online message.
5. Q: Kako jamčimo kvalitetu?
A: Strogo slijedimo standarde upravljanja kvalitetom proizvodnje; Provjerite radionicu svakih 2 sati; I ima vlastiti istraživački i razvojni tim i laboratorij.
6. Q:Što možete kupiti od nas?
A: Električni uređaji i proizvodi za ventilaciju; Ako postoje i druge potrebe, također možemo pomoći kupcima pri kupnji.
