Igniter Flame Rods Heating Equipment

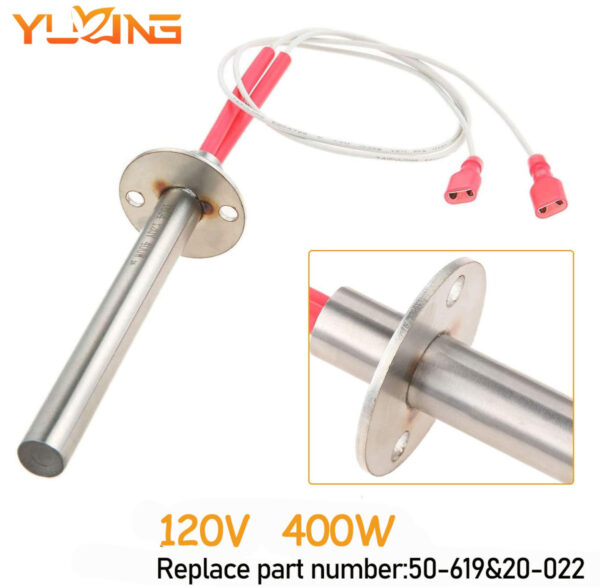

Industrial Stainless Steel Igniter Flame Rods 50-619 Heating Equipment for Pellet Stove Replacement
Opis
Opis proizvoda
Igniter Flame Rods Heating Equipment
Electric heater cartridge is made of MgO powder and MgO tube, keramička kapa, otporna žica(NiCr2080), High temperature leads, seamless stainless steel
sheath(304,321,316,800,840). usually in tube form, that is used in heating applications by way of insertion into metal blocks via a series of drilled holes.
internal wiring: high temperature resistance, uniform heating, high thermal conductivity and difficult cable fracture.
external wiring: high temperature resistance, uniform heating and high thermal conductivity.
Žica za grijanje otpora | NiCr 80/20 žica |
Sheath | ne hrđajući Čelik 304,321,316, Incoloy 800, Incoloy 840 |
Promjer cijevi | 3mm-30mm |
Duljina cijevi | min is 15mm max is 3meter. |
Tolerancija snage | +5%, -10% |
Tolerancija otpora | +10%, -5% |
Tolerancija duljine | ±1 mm |
Tolerancija promjera | ± 0.02mm |
Standardna hladna zona | 5-10mm |
Položaj termoelementa | tip J / k |
Otpor izolacije (hladna) | ≥ 500 MΩ |
Maksimalna struja curenja (hladna) | ≤ 0.5 mA |
Function:
1. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%;
2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;
4. Leakage current <0.5MA;
5. Otpor izolacije> 30MΩ;
Ocjena kupaca
Pakiranje & Dostava
Plastic bag & Carton box
profil tvrtke
- Taizhou YuLing electrical appliance co.,ltd is a heating element manufacurer in China,Pokrajina Jiangsu.
- Yuling is professional in heating industrial više od 40 godine,yuling can provide desinging and producing heating elements.
- yuling has received ISO system certification i CE CQC UL ROHS product testing certification. Our range of products is primarily sold in the European and American markets.
- We employ stringent quality control measures to ensure the superior quality of our products, and implement impeccable Standard Operating Procedures to enhance production efficiency, ultimately guaranteeing optimal benefits for our valued customers.
Pitanja
1. tko smo mi?
Nalazimo se u Jiangsu, Kina, početi od 2010, prodati u Oceaniju(50.00%),Sjeverna Amerika(30.00%),Južna Amerika(10.00%),Južna Europa(10.00%).
Ima ukupno oko 11-50 people in our office.
2. kako možemo jamčiti kvalitetu?
Uvijek predprodukcijski uzorak prije masovne proizvodnje;
Uvijek konačna inspekcija prije otpreme;
3.što možete kupiti kod nas?
Patronski grijač/uliveni grijač/cirkulacijski grijač/grijač bloka motora/grijač s otvorenom spiralom, Finned Heater/Strip Heater/Heating Element
4. zašto biste trebali kupovati od nas, a ne od drugih dobavljača?
1.Više od 40 godina iskustva
2.UL CE RoHS CQC ISO9001:2008
3.R&D tim
4.Dostavite izvješće o ispitivanju
5.Support product design
2.UL CE RoHS CQC ISO9001:2008
3.R&D tim
4.Dostavite izvješće o ispitivanju
5.Support product design
5. koje usluge možemo pružiti?
1.Prihvaćeni uvjeti isporuke: FOB,CFR,CIF,EXW,DDU,Ekspresna dostava；
2.Prihvaćena valuta plaćanja:USD,EUR,CNY;
3.Prihvaćena vrsta plaćanja: T/T,L/C,D/P D/A,Money Gram,Kreditna kartica,PayPal,Zapadna unija,Unovčiti,Escrow;
4.Govorni jezik:Engleski,kineski,francuski
