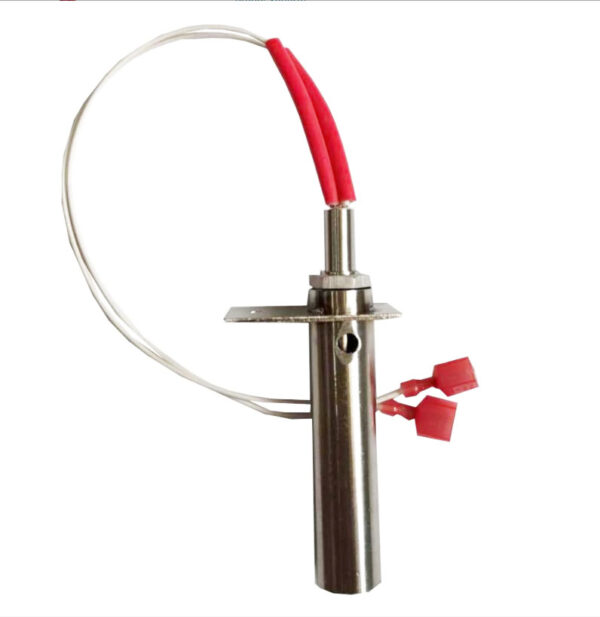

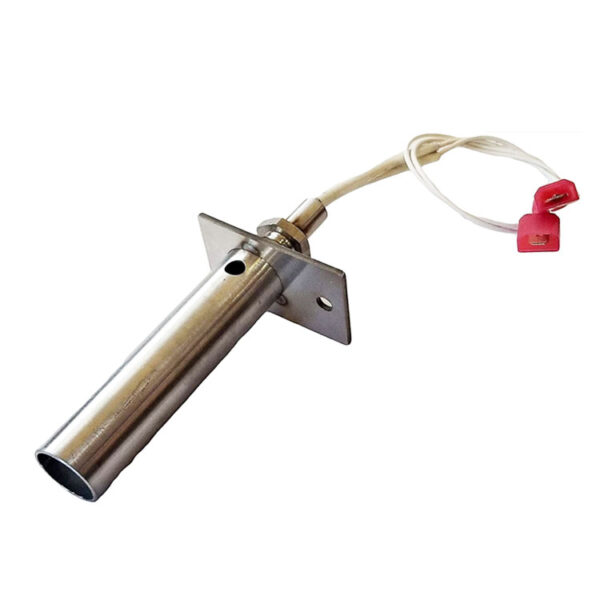

Mold heating element industrial cartridge heater with flange
Industrial Cartridge Heater is a robust and durable type of electric heating element used for high-temperature industrial applications.
Opis
A cartridge heater is a tube-shaped, industrial heating element that can be inserted into drilled holes. Cartridge heaters provide localized and precise heating and are commonly used in the heating process industry. Typically, cartridge heaters are used to heat a metal block from the inside and can be custom manufactured to a specific watt density based on the requirements of the application.Cartridge heaters are most frequently used for heating metal parts by insertion into drilled holes. For easy installation, the heaters are made slightly undersize relative to their nominal diameter.
1. Simple structure, high heating power2. Easy and economical installation
Outer Sheath Material | Ne hrđajući Čelik 304, 321, 316; Incoloy 800; Incoloy 840 |
Resistance Heating Wire | Nichrome 8020 otporna žica |
Tolerancija snage | +5%, -10% |
Resistance Tolerance | +10%, -5% |
Voltage Available | 12 do 600 volts customied |
Maxium Heating Temperature | 800 Degree Celsius |
Length Tolerance | ±1mm |
Diameter Tolerance | ±0.02mm |
Standard Cold Size | 5-10mm |
Otpor izolacije (hladna) | ≥ 500 MΩ |
Maxium Leakage Current (hladna) | ≤0.5 mA |
Lead Orientation | A) Crimped on Leads : PTFE/Fiberglass Flexible lead crimped on solid pin emerging from the Heater.B) Swaged in Leads : Flexible Fiber Glass or PTFE leads emerging from within the heater |
