120v 240v 480v 220v Heat Water Flange Immersion Heater Element

Opis proizvoda

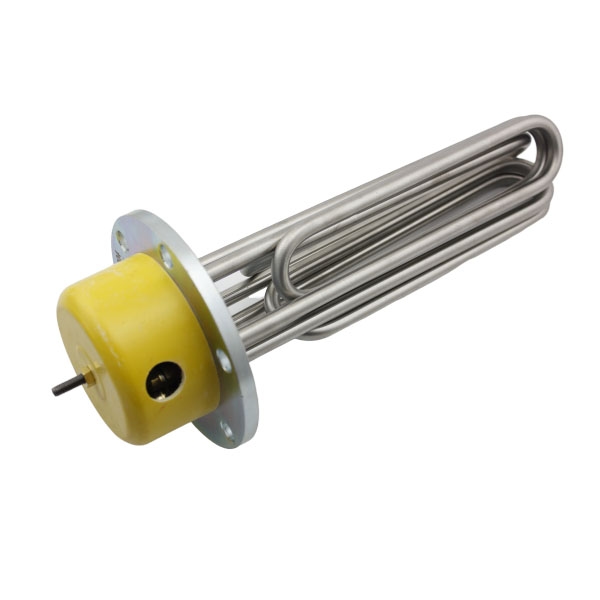

Yuling 120v 240v 480v 220v Heat Water Flange Immersion Heater Element are designed for heating or temperature maintening of liquids, gas or mixture in static or circulation conditions.The design is based on customer process conditions: fluid to heat (type and properties), in/out temperature, pressure, heat exchange conditions (stagnant or flowing), and environment conditions (ATEX or not, onshore or offshore, itd.). Flange immersion heaters can be straight or L-shaped.
Flange Immersion Heater Element
Flange Immersion Heater Element

Thermostated Immersion Heater

>>Technical Data

Flange sizeDN 50 to DN 800
Screw plug size1″- 3″
Promjer cijevi8-16 mm
Immersion Length150mm- 1500mm
Heating Element3 elements, 4 elements, 6 elements, 10 elements etc under customer request
Wattage density2-8W/cm2
naponUP to 600V
Materijal omotačaNe hrđajući Čelik 304 316L 310S Copper Incoloy 800 840
Built in thermostat wellBuilt-in thermostat wells can be installed upon request. When ordering, please provide length BUILT-IN THERMOSTAT WELL and internal diameter

Izložba proizvoda

>>Reference Drawing

Flange Immersion Heater Element

>>How to choose the right Material for immersion heater?

Flange Immersion Heater Element
Flange Immersion Heater Element

Primjena proizvoda

Fuel and Oil Heaters Hot Water Storage TanksWarming Equipment Preheating All Grades of OilFood Processing Equipment Cleaning and Rinsing TanksHeat Transfer Systems Process Air Equipment

Boiler Equipment Freeze Protection of Any Fluid

Flange Immersion Heater Element

Certificate

Flange Immersion Heater Element

After Sales Service

Flange Immersion Heater Element

1. Package tracking

2. One year guarantee
3. Technical support
4. 12 hours wking time
5. Discount for reorder
6. Replacements for quality problems
7. Confidentiality of customer information

predstavljanje firme

Flange Immersion Heater ElementFlange Immersion Heater Element

Our Services & Strength

* Expert sales teams are responsible for accurate communication.

* Professional technical teams are responsible for new product development. * Technical production teams are responsible for assembly line production.
* Expert quality inspection teams are responsible for quality inspection.
* Experienced after-sales teams are for all customers.
