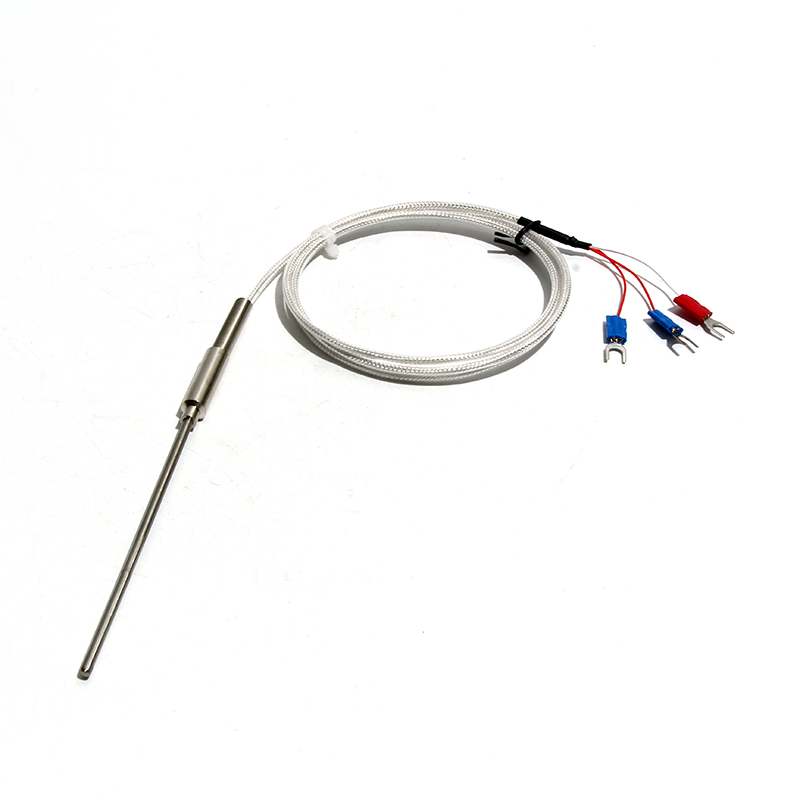

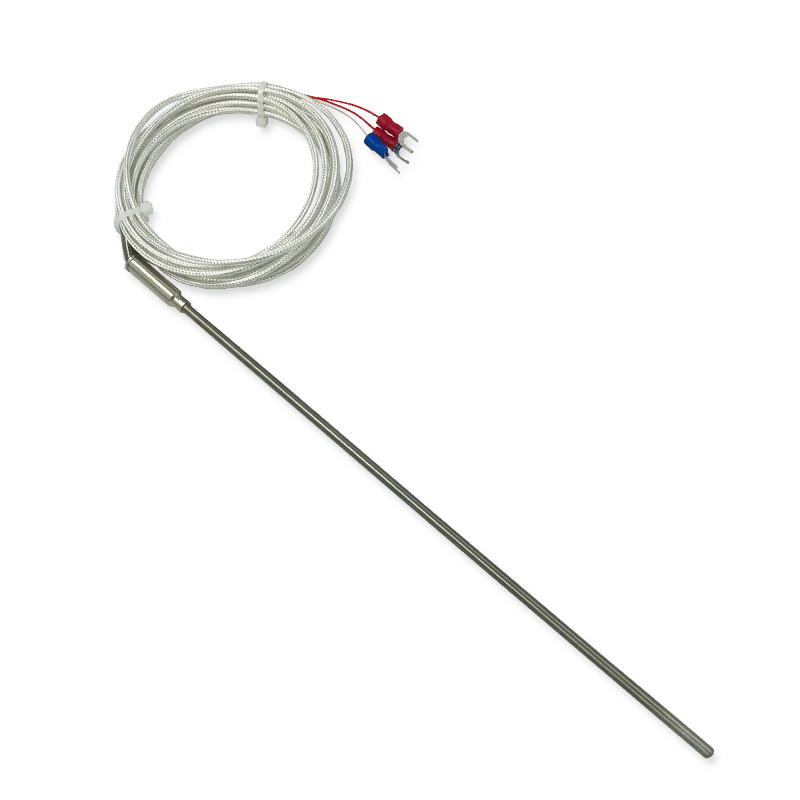

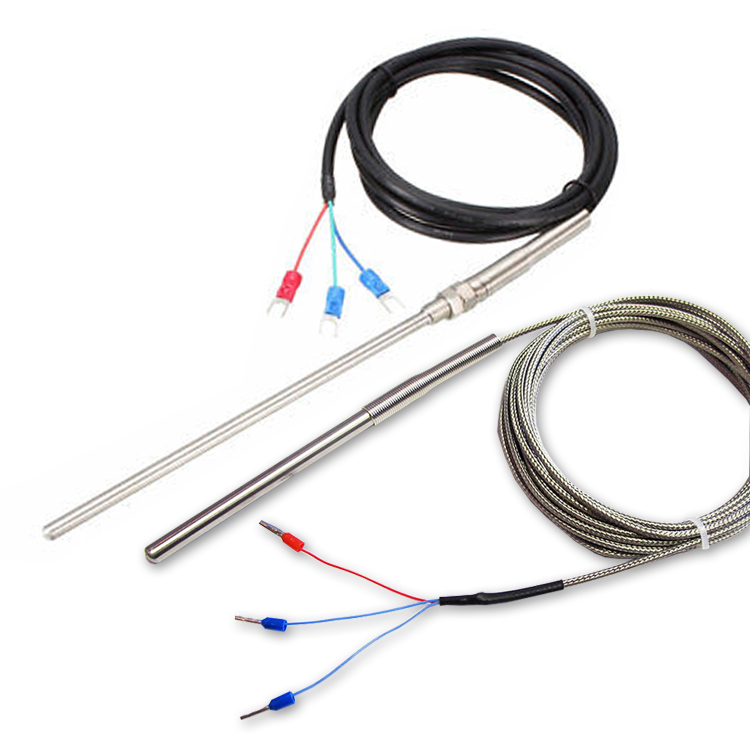

K/J/PT100 type Flexible Thermocouple Sensor Probe with Insulated High Temperature Lead Wire
Flexible thermocouple sensor probe is a bendable temperature sensor used for measuring temperature in hard-to-reach places.
Opis
K/J/PT100 type Flexible Thermocouple Sensor Probe with Insulated High Temperature Lead Wire
Opis proizvoda
Thermal resistance, high sensitivity, strong stability, interchangeability and accuracy are relatively good, but need power excitation, can not measure the temperature change instantaneously. Industrial thermal resistance is generally Pt100, Pt10, sa 50, Cu100, platinum thermal resistance temperature measurement range is generally -200 ~ 800℃, often used in power, kemijska industrija, injekcijsko prešanje, pakiranje, hrana, inkubator, oven temperature measurement.
PT100 RTD sensor advantage:
①Less thermal response time, reduce the dynamic error;
②Small diameter, length is not restricted;
③High measuring accuracy;
④Imported film resistance element;
⑤Performance stable and reliable.
Specifikacija
Ime proizvoda | PT100 Flexible Thermocouple Sensor Probe |
Tip | PT100-type |
Product mode | WZPK-191 |
Promjer sonde | 3/4/5mm |
Duljina sonde | Customized according to customer requirements |
Duljina olova | 1m/2m/3m/4m/5m(there is tolerance, if care, please do not make order.) |
Wire material | Polytafluoro-silver-plated leads |
Raspon mjerenja temperature | -200-450C |
Custom | Da, can custom probe diameter. duljina, cable length. |
Sadržaj paketa | 1 × senzor |
Podsjetnik: Što je veći promjer sonde, bolji je učinak temperaturne otpornosti.
Molimo kupce da daju stvarni raspon mjerenja što je više moguće kako bismo se mogli prilagoditi odgovarajućem promjeru i materijalu.
New 304SUS high density braided sheath
High corrosion resistance and wear resistance, use long life and durability.
Sonda od nehrđajućeg čelika
Choose national standard 304 stainless steel raw material.
Be anti-interference
Teflon high temperature silver plating shield tetrafluoro material, with anti-interference ability.
Tip | Diplomiranje | Raspon temperature(°C) | Short-term Temperature Measurement(°C) |
WRNK-191 | K | 0-900°C | 0-1000°C |
WREK-191 | E | 0-600°C | 0-700°C |
WRCK-191 | T | 0-200°C | 0-400°C |
WRFK-191 | J | 0-450°C | 0-600°C |
WRMK-191 | N | 0-1100°C | 0-1200°C |
WRPK-191 | S | 0-1250°C | 0-1400°C |
WZPK-191 | PT100 | -20-420°C | 0-600°C |
The thermal response time shall not exceed that specified in the following table :(s) | ||
Promjer(mm) | Termopar | |
Ungrounded | Grounded | |
2.0 | 0.5 | 0.4 |
3.0 | 1.2 | 0.6 |
4.0 | 2.5 | 0.8 |
5.0 | 4.5 | 1.2 |
6.0 | 6.0 | 2.0 |
8.0 | 8.0 | 4.0 |
