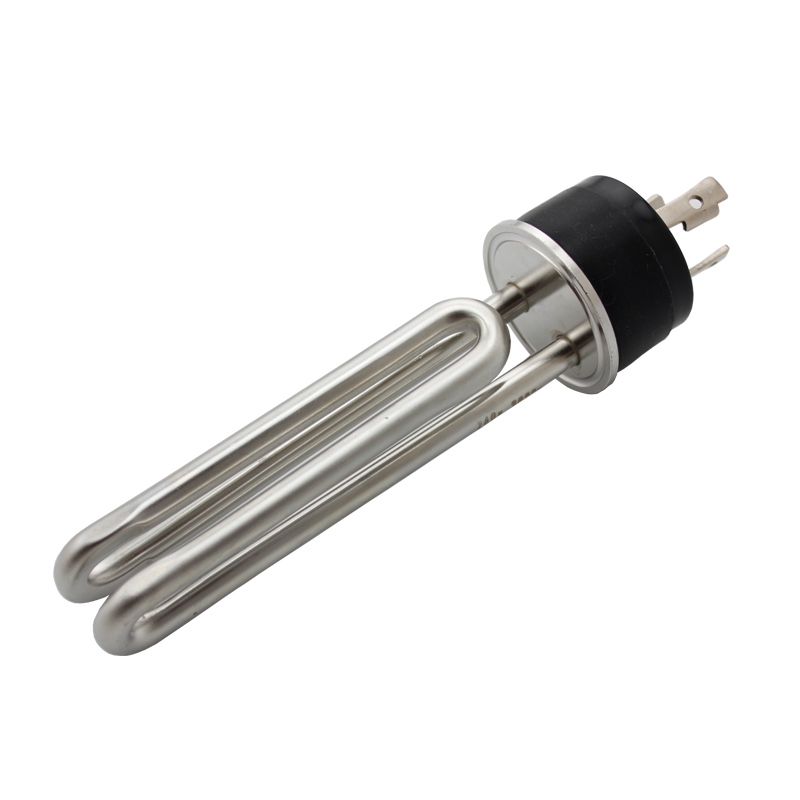

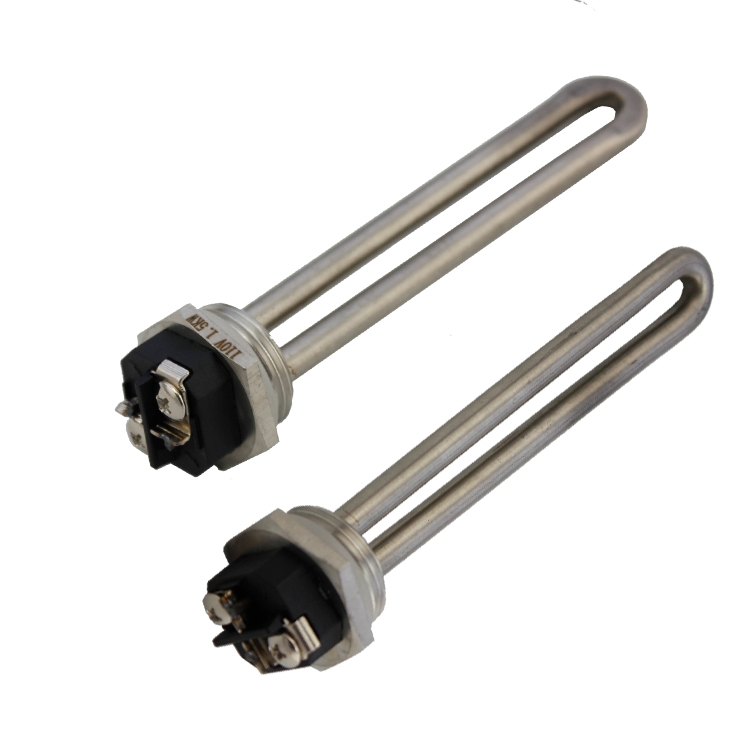

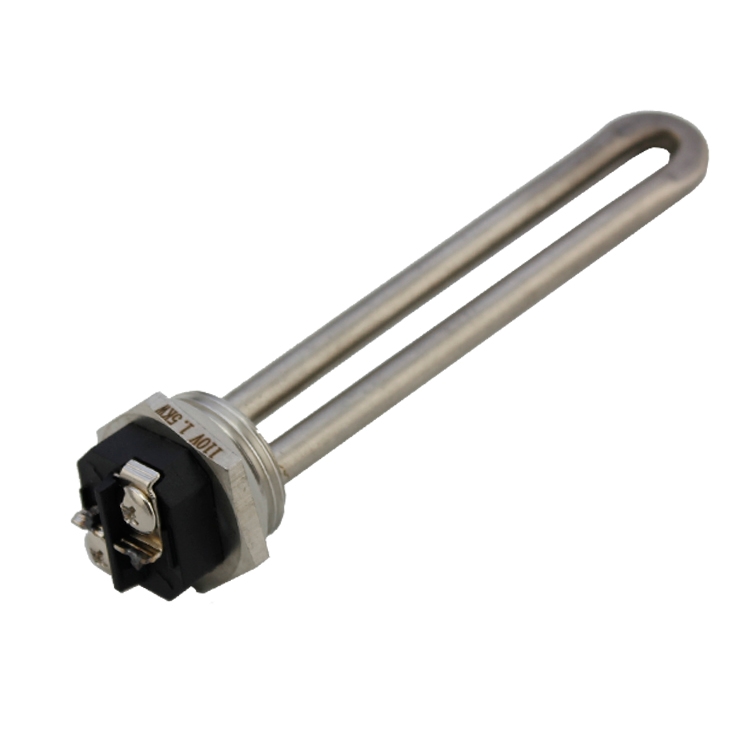

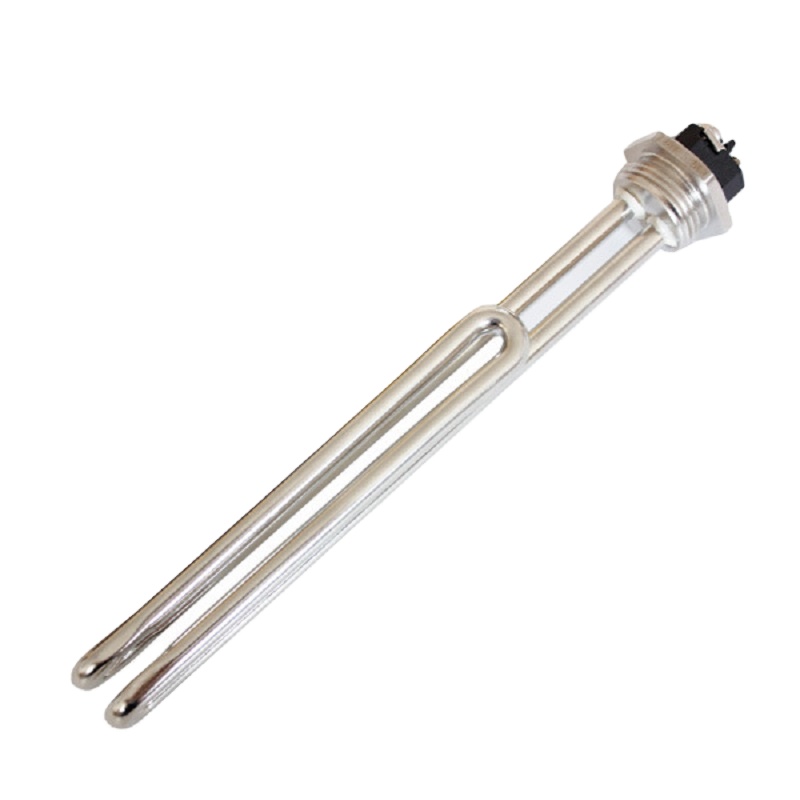

Flange Immersion Heater For Solar Water Tank 2KW 5KW 8KW 10KW
Flange Immersion Heater For Solar Water Tank 2KW 5KW 8KW 10KW
Opis
Flange Immersion Heater For Solar Water Tank 2KW 5KW 8KW 10KW
Opis proizvoda
Immersion Tubular Heaters
Electrical flange immersion heaters are designed for heating or temperature maintening of liquids, gas or mixture in static or circulation conditions.The design is based on customer process conditions: fluid to heat (type and properties), in/out temperature, pressure, heat exchange conditions (stagnant or flowing), and environment conditions (ATEX or not, onshore or offshore, itd.).Flange immersion heaters can be straight or L-shaped.
Technical Data
flange immersion heater for solar water tank | |
Flange size | DN 50 to DN 800 |
Screw plug size | 1″- 3″ |
Promjer cijevi | 8-16 mm |
Immersion Length | 150mm- 1500mm |
Heating Element | 3 elements, 4 elements, 6 elements, 10 elements etc under customer request |
Wattage density | 2-8W/cm2 |
napon | UP to 600V |
Materijal omotača | Ne hrđajući Čelik 304 316L 310S Copper Incoloy 800 840 |
Built in thermostat well | Built-in thermostat wells can be installed upon request. When ordering, please provide length BUILT-IN THERMOSTAT WELL and internal diameter |
How to choose the right Material for immersion heater?
Primjena | Materijal omotača | Typical Watt Density(w/cm²) | Screw Plug/Flange Material |
Water, Freeze protection, Hotwater storage, Boilerandwaterheaters, Coolingtowers, Solution not corrosive to copper, Food equipment | Stainless Steel304 316L or Copper | 8w/cm2 | Stainless Steel or Brass |
Oil, Heavy and non-circulated oils, Solution water, Corrosive solutions, Steam super heating | Stainless Steel 316L 310s or Incoloy | 2.5w/cm2 | Ne hrđajući Čelik |
Light oils , Inforced oil circulation loops | Stainless Steel304 316L | 4.5w/cm2 | Ne hrđajući Čelik |
Mildly corrosive solutions | Stainless Steel 316L 310s or Incoloy | 8w/cm2 | Ne hrđajući Čelik |
Fluid heat transfer media, Tar, High to low viscosity petroleum oils, Asphalt, Wax, Paraffin, Degreasing solvents, Alcohol, Molten salt, Solutions not corrosive to steel | Stainless Steel304 316L | 2.5w/cm2 | Ne hrđajući Čelik |
Process water, Soap and detergent solutions, Soluble cutting oils, Demineralized or deionized water | Stainless Steel304 316L | 4.5w/cm2 | Ne hrđajući Čelik |
PLEASE CONSULT CORROSION GUIDE RECOMMENDATIONS. |
Primjena proizvoda
Technical Data
Flange size | DN 50 to DN 800 |
Screw plug size | 1″- 3″ |
Promjer cijevi | 8-16 mm |
Immersion Length | 150mm- 1500mm |
Heating Element | 3 elements, 4 elements, 6 elements, 10 elements etc under customer request |
Wattage density | 2-8W/cm2 |
napon | UP to 600V |
Materijal omotača | Ne hrđajući Čelik 304 316L 310S Copper Incoloy 800 840 |
Built in thermostat well | Built-in thermostat wells can be installed upon request. When ordering, please provide length BUILT-IN THERMOSTAT WELL andinternal diameter |
Izložba proizvoda
After Sales Service
1. Package tracking
2. One year guarantee3. Technical support 4. 12 hours wking time5. Discount for reorder6. Replacements for quality problems7. Confidentiality of customer information
profil tvrtke
Our Services & Strength
* Expert sales teams are responsible for accurate communication. * Professional technical teams are responsible for new product development.
* Technical production teams are responsible for assembly line production.* Expert quality inspection teams are responsible for quality inspection.* Experienced after-sales teams are for all customers.
Pitanja
1. tko smo mi?1.od godine obavljamo vanjsku trgovinu 2010;
2.prodati na domaćem tržištu(50.00%),Sjeverna Amerika(30.00%),Jugoistočna Azija(10.00%),Zapadna Europa(10.00%);
3. Imamo 500㎡ ureda i 2500㎡ radionice.
2. kako možemo jamčiti kvalitetu?1.Proizvodimo u strogom skladu sa standardom upravljanja kvalitetom;
2.Radionicu pregledavamo jednom 2 sati;
3.Potvrdite detalje uzorka s kupcem za svaku narudžbu.
3.Potvrdite detalje uzorka s kupcem za svaku narudžbu.
3.što možete kupiti kod nas?1.Električni uređaj (Instant grijač,Rebrasti grijač,Grijaći element pećnice,Cirkulacijski grijač);
2. Povezani proizvodi;
3. ako postoje druge potrebe, također možemo pomoći kupcima pri kupnji.4. zašto biste trebali kupovati od nas, a ne od drugih dobavljača?1.Više od 40 godine’ industrijsko iskustvo grijaćih elemenata;
2.UL(E501501)/CE/RoHS/CQC ISO9001:2008;
3.R&D tim i Laboratorij;
2.UL(E501501)/CE/RoHS/CQC ISO9001:2008;
3.R&D tim i Laboratorij;
4.Integracija industrije i trgovine vrlo je korisna za kupčevu nabavu;
5.Proizvodi unutar jamstvenog roka bit će besplatno zamijenjeni.
