Mold Temperature Machine Heating Pipe Flange Heating Element Electric Water Tank Boiler Heating Element 6KW 9KW 12KW 220V 380V
Mold Temperature Machine Heating Pipe Flange Heating Element Electric Water Tank Boiler Heating Element 6KW 9KW 12KW 220V 380V
Opis
Mold Temperature Machine Heating Pipe Flange Heating Element Electric Water Tank Boiler Heating Element 6KW 9KW 12KW 220V 380V
Product introduction
3 phase immersion heating element is easy to install and maintain. Designed for heating liquids and gases in tanks and pressure vessels, electric immersion heater is ideal for applications requiring higher kilowatts. Immersion heater is made with tubular metal heating element brazed or welded to a flange. Stock flange immersion heaters are equipped with a general purpose terminal enclosure.
Flange immersion heater is more heat exchange efficient, that means flange immersion heater could standard 3 do 4 times wattage. Flange immersion heater is made of advanced production equipment and through strict quality test. Characteristic fast temperature rise heating uniformity heating exchange efficiently long-time usage appliance. Immersion heaters can be used to heat just about any kind of liquid and are used in gas tanks from time to time as well.
The most mcommon and known use is heat water via an electric water heater. However, it can be used to heat a fluid for testing in various industrial settings or for keeping the oil warm in the cold months. Immersion heaters work in all kinds of different situations and don’t require any kind of flame so they won’t ignite gases. This is one of the many reasons why immersion heaters are so popular.

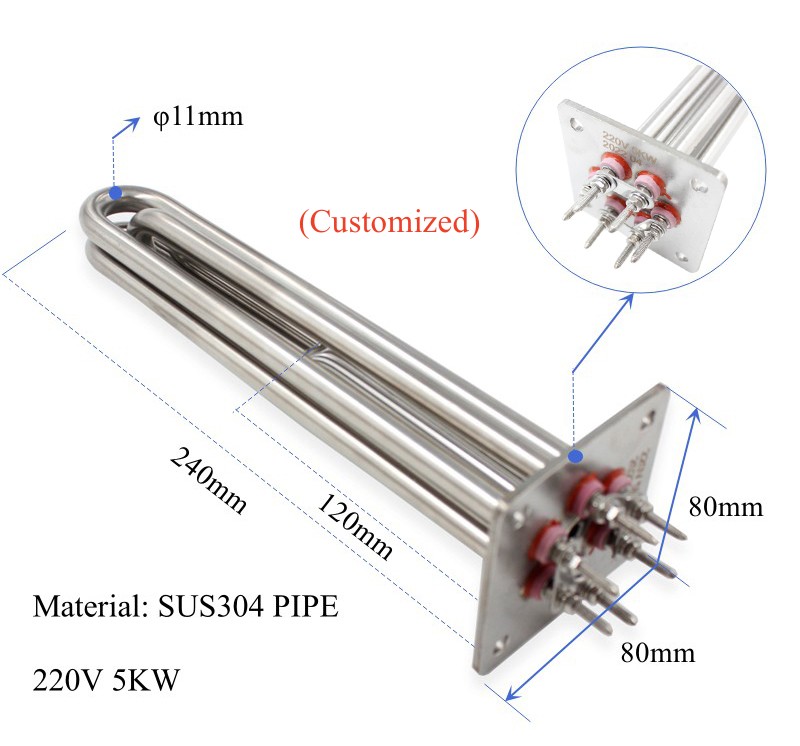

SPECIFICATIONS FOR 80mm Square Flange Immersion Water Heating Element |
Materijal cijevi: 304 stainless steelVoltage: 220v/380VPower: 5KW/6KW/9KW/12KWFlange: 80MMx80MMTube diameter: 11mmPackage: 1PC x Immersion Heating ElementApplication: water heater
Heat intensity | Not exceeding 30w/cm2 (advisable) |
napon | 220V |
Vlast | 5KW(customized) |
Exhaust extreme (when cold) | Exhaust extreme (when cold) |
Izolacija (when cold) | 5 Min Ohms 500 Watts minimum |
Dielectric strength | 1500v. 1/sec |
Working temperature | 650 Deg C max |
Jamstvo | 1 year |
Power tolerance (w) | +5 % – 10 % |
Cold areas | Depends on length and diameter 5-25mm |
To Order, Please Specify:
1. Flange size and pressures 2.Heating element watt density 3. Length of your tank 4. Sheath material (corrosive or non corrosive) 5. Temperature of the corrodent 6. Degree of aeration of exposed corrodent 7. Velocity of the corrodent
Primjena
Detaljne slike
Ocjena kupaca
Certifikati
Pitanja
1. Who are we?
Recenzije
Još nema recenzija.
