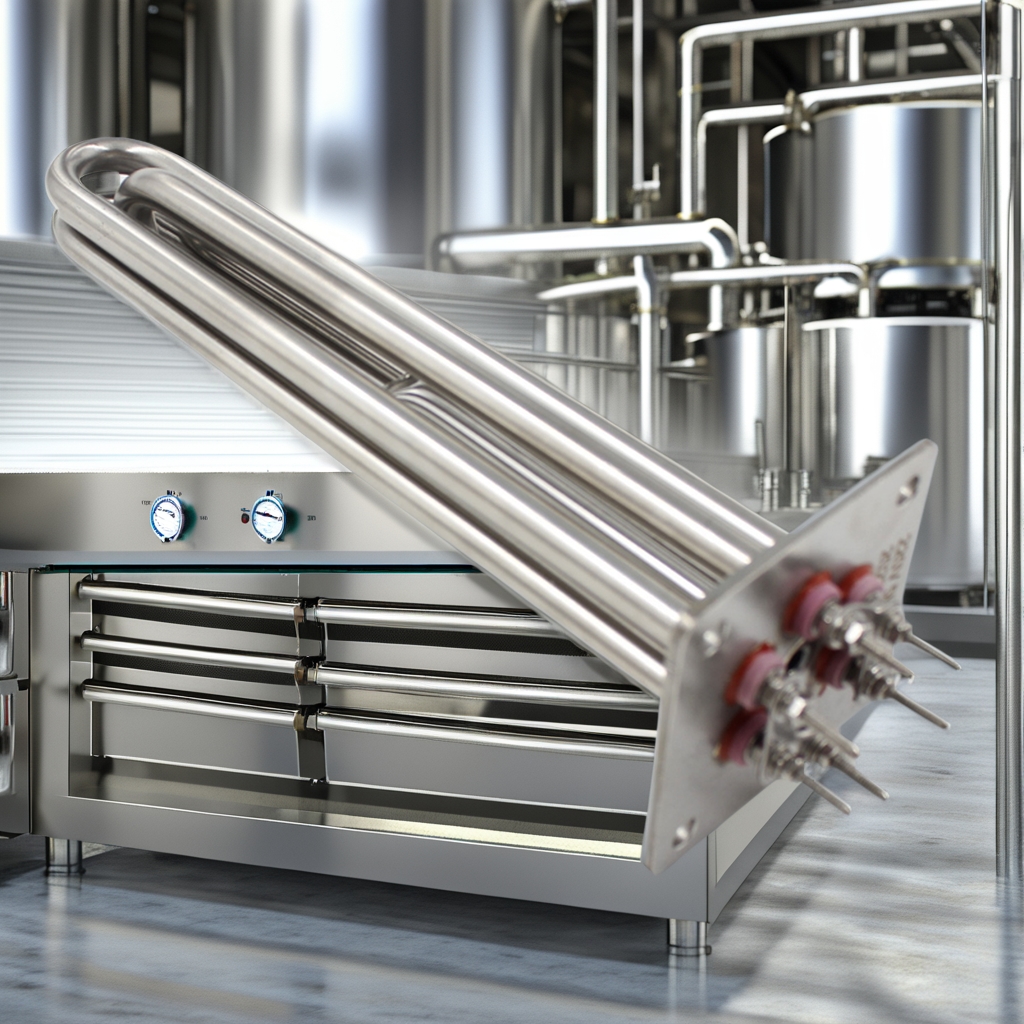

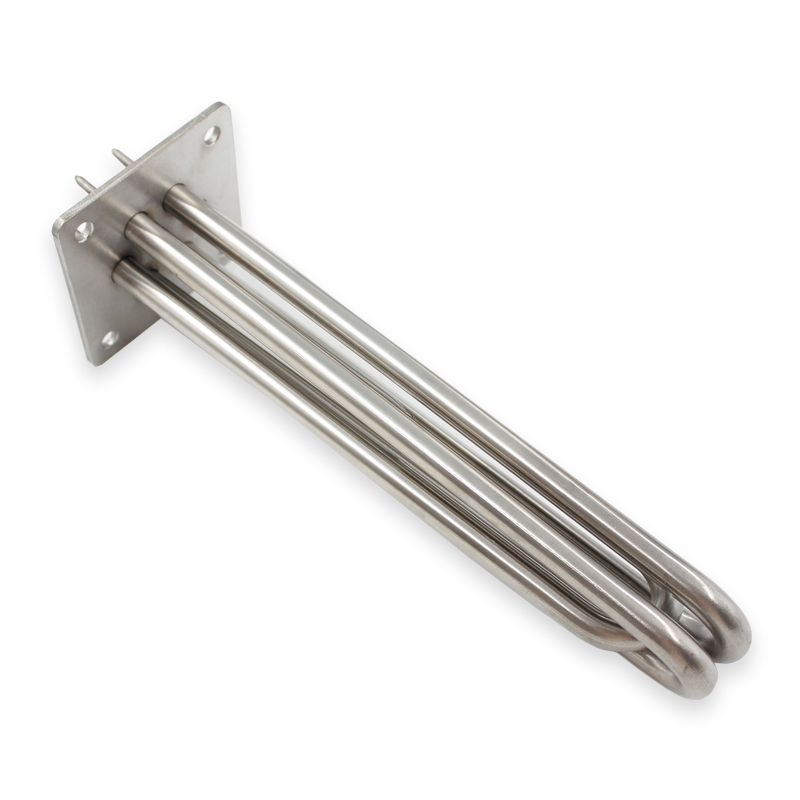

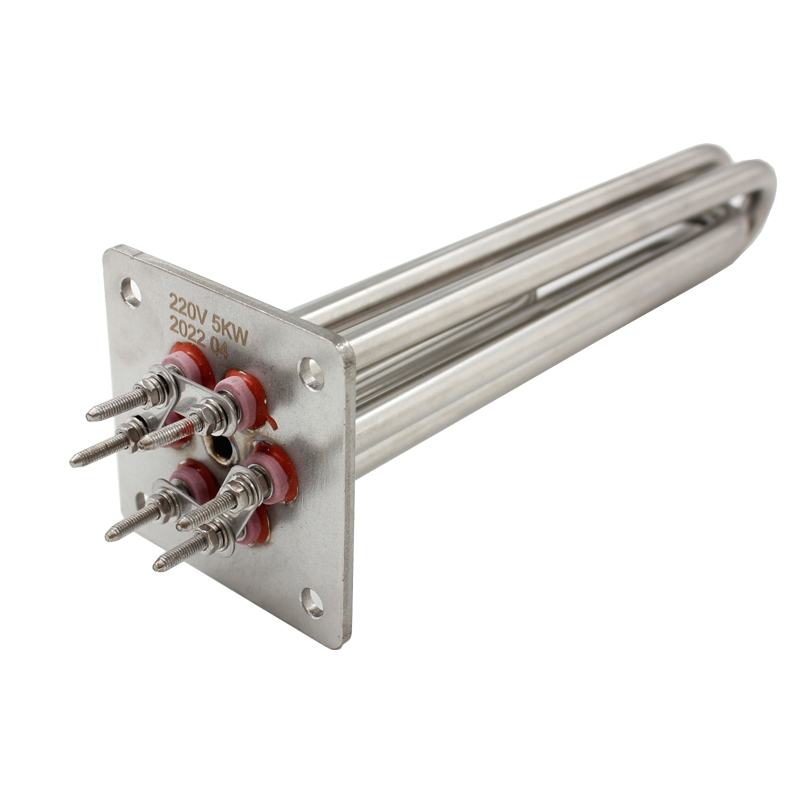

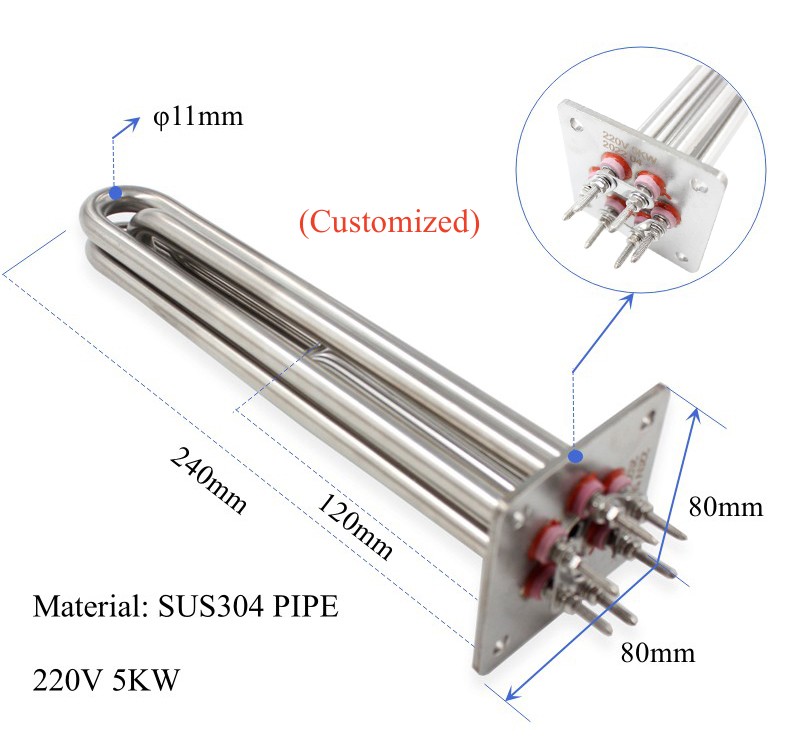

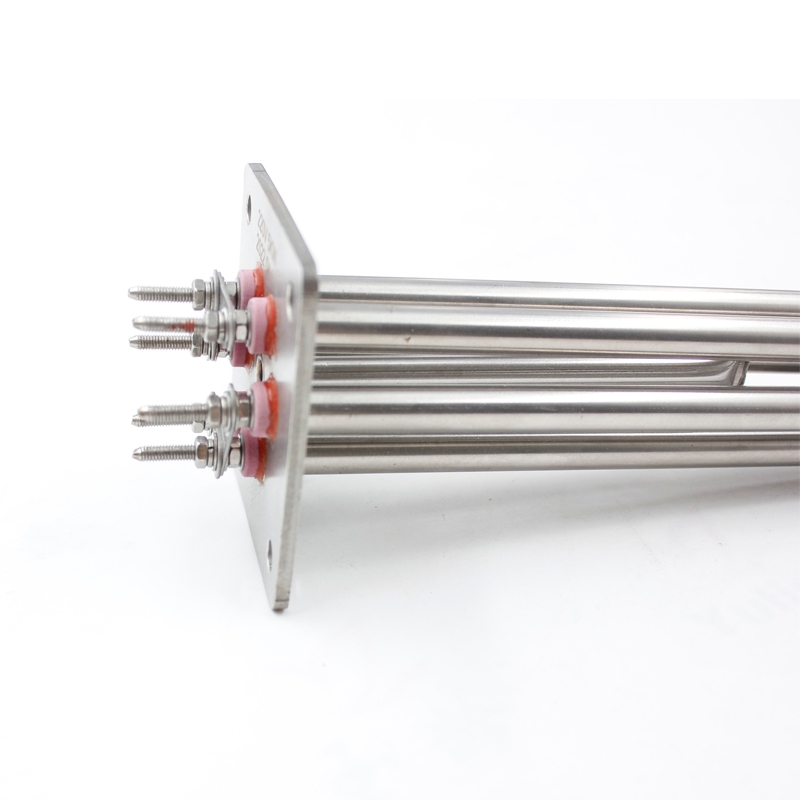

220V 5KW Portable Electric Square Flange Immersion Water Heater Element

Flange water heater element are commonly used in many chemical, petroleum and water based applications. YULING flange heaters allow the flexibility of using many different alloys to help resist corrosion and maintain life longevity of the flange heating element.

Steel flanges are typically used for lubricant oils, heavy and light oils, waxes as well as mildly corrosive liquids and low flow gas heating.Flange immersion heaters are constructed of hairpin bent tubular heater elements brazed or welded into ANSI standard flanges or plate flanges of various shapes and sizes. ANSI flange heaters are typically used for large volume, high power and/or higher pressure applications. Plate flange heaters are typically custom designed for use in smaller pieces of equipment such as boiler and chillers.There are two connections, one thread connection, commonly used specifications size G1 / 2–2 inch, the second is the flange connection.

Also known as the flat flange connection . Common specifications size DN50mm – DN300mm, flange electric tube flange commonly used materials are brass, acier inoxydable, 10 steel, pipe material commonly used 10 steel, acier inoxydable, cuivre. Common specifications, 1.5KW, 3KW, 6KW, 9KW , 12KW, 15KW, 30KW to 500kw, etc.. Used for electric water boilers, electric boilers, solar energy systems, solar water tanks, chemical pools, baths, swimming pools and other places to be heated.
