Cuivre pur mica à haute température résistance à résistance à la résistance
$35.00
Description
Description du produit
Cuivre pur mica à haute température résistance à résistance à la résistance
Fonctionnalité
Mica high temperature wire temperature tolerance of 500 °C and 600°CSpecification: 0.5mm², 0.75mm², 1mm², 1.5mm², 2mm², 2.5mm², 4mm², 6mm².Operating voltage: 600V or less (CA)Écart de température: 0-500°CLong-term allowable use temperature 500 CLaying conditions: fixed layingRelative temperature: 65%Can be bent to use, plus the flame does not burn, no harmful toxic gases.GN500 C refractory high temperature, anti-aging, wear, flexible bending performance. Can be bent to use, plus flame does not burn, fire retardant, longue durée de vie.
StructureConductor: Pure Copper Insulation: Fiberglass Wrapping Jacket: Fiberglass Braid
Application
Applicable to high-temperature environment AC rated voltage 600V or less electrical circuit installation and connection, widely used in electromagnetic heating coil, métallurgie, petroleum, chimique, oil refining, natural gas and other special environments, various mechanical manufacturing fields, various electrical devices requiring fire performance The required wire and cable, as well as various electric heating equipment, electric heating devices and so on.
spécification
Conducteur | Outer Diameter mm | Electrical Properties | Emballage | |
Sectional Area mm2 | Jacket Thickness mm | Max Conductor Resistance DC 20°C | M/coll | |
0.50 | 7×0.30 | 2.6±0.3 | 39.0 | 200 |
0.75 | 11×0.30 | 2.7±0.3 | 26.0 | 200 |
1.0 | 7X0.41 | 2.8±0.3 | 19.5 | 200 |
1.5 | 21×0.30 | 3.0±0.3 | 13.3 | 100 |
2.0 | 28×0.30 | 3.3±0.3 | 10.0 | 100 |
2.5 | 35×0.30 | 3.6±0.5 | 7.98 | 100 |
4.0 | 56×0.30 | 4.5±0.5 | 4.95 | 100 |
6.0 | 84×0.30 | 5.5±0.5 | 3.30 | 100 |
10 | 140×0.30 | 6.6±0.5 | 1.91 | 100 |
16 | 228×0.30 | 7.8±0.5 | 1.21 | 100 |
25 | 361×0.30 | 9.5±0.5 | 0.78 | 100 |
35 | 494×0.30 | 11.2±1.0 | 0.554 | 100 |
50 | 703×0.30 | 13.2±1.0 | 0.386 | 100 |
70 | 988×0.30 | 15.4±1.0 | 0.272 | 100 |
95 | 960×0.40 | 17.4±1.0 | 0.206 | 100 |
Détails Images

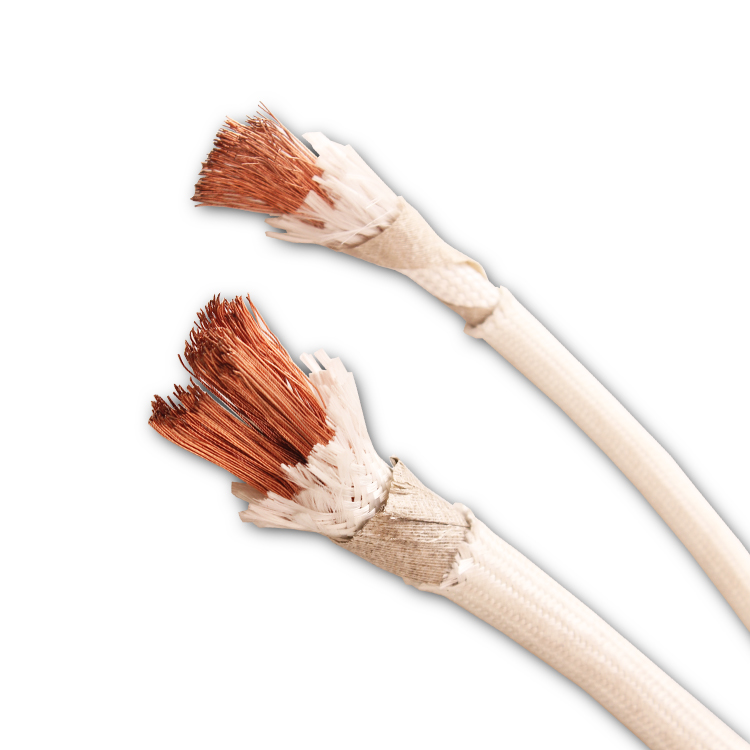

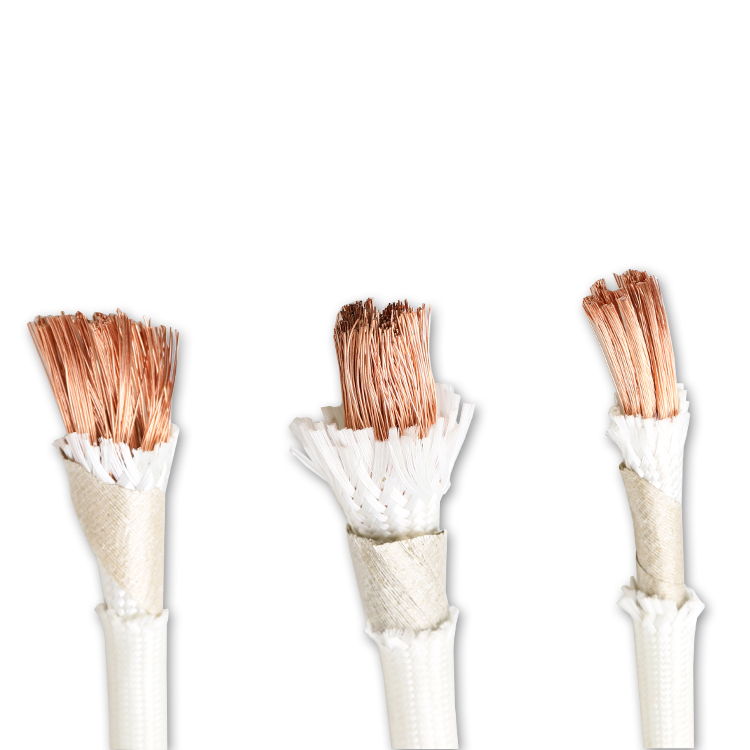

GN500 degree mica high temperature fire resistance cable
Adopt pure copper wire, high temperature resistant fire retardant braided layer, mica wrapping high temperature resistant
Self – flameout, good flame retardant
High purity alkali – free glass fiber has good flame retardancy and self – extinguishing
Good flexibility
Refractory mica tape wrapped + two layers of glass fiber temperature -60~500 degrees, fire retardant
