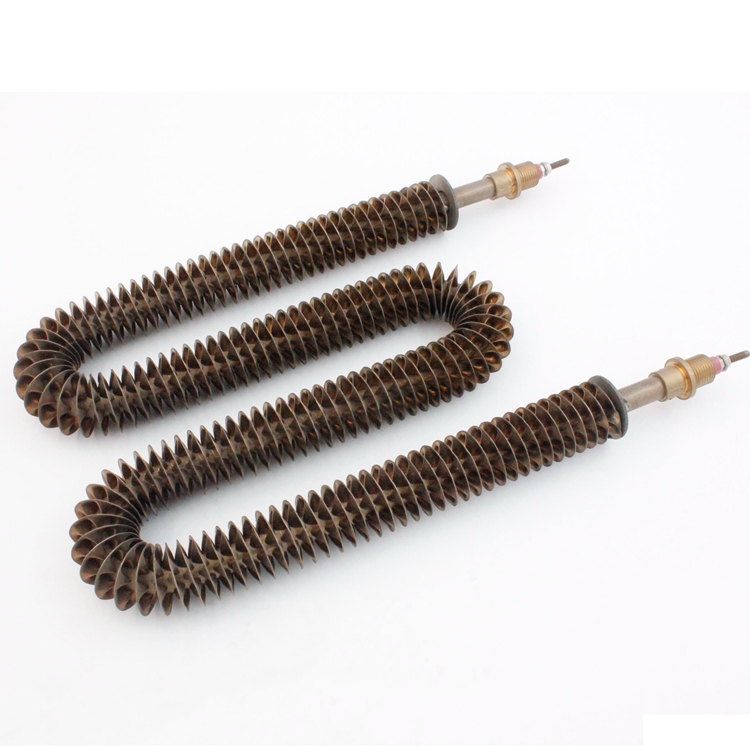

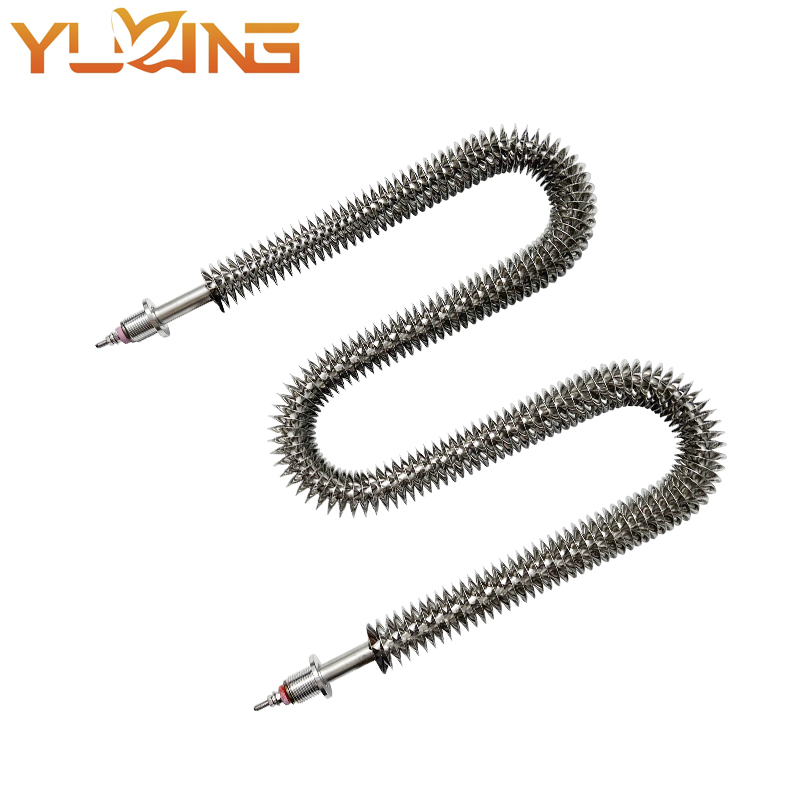

120v 220v Industrial Hot Air Heater Element Finned Tube Air Heater
The Finned Tube Air Heater is a highly efficient heating system that uses finned tubes to transfer thermal energy to the air.
Description
120v 220v Industrial Hot Air Heater Element Finned Tube Air Heater
Description du produit
Finned Tube Air Heaters are the most common heaters and are best suited for a large number of applications such as conduction, convection, and radiation. the heaters can be produced almost any shape or size.Finned Tube Air Heater is constructed like basic tubular elements with the addition of continuous spiral fins,4-5 per inch permanently furnace brazed to the sheath. Fins greatly increase surface area and permit faster heat transfer to air, resulting in lower surface element temperatures.
Technical Details | |
Construction Diameter | 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc. |
Matériau du tube | stainless steel 304/321/316/310S,Incoloy 800 840 |
Power Tolerance | Tolerance±10% |
Use of Alloys | Suitable for heater tube AISI 304 in water or humid enviroment max temperature up to 170°C. In air max 220°C |
Fil | M12 M14 M16 M18 |
Watt Density | Tube watt density of 30 watts sq in-suitable for many uses |
Custom | Custom configurations, lengths, watts, volts available |
TUBE MATERIAL | FIN MATERIAL | TUBE DIA.(MM) | FIN HEIGHT (MM) | FIN THICKNESS (MM) | FIN PITCH (MM) |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ6.7 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ8 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ9 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ10 | 5-7 | 0.3-0.4 | 3-7 |
SS304/316/321/Incoloy | S.Steel / mild Steel | F12 | 5-7 | 0.3-0.4 | 3-7 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ14 | 5-10 | 0.3-0.4 | 3-7 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ16 | 5-10 | 0.3-0.4 | 5-10 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ20 | 5-10 | 0.3-0.4 | 7-10 |
How to order?
Détails Images
Application
Évaluation client
Emballage & Livraison
Profil de l'entreprise
Nous sommes impatients d'avoir l'opportunité de travailler avec vous et de vous fournir les produits et services exceptionnels pour lesquels nous sommes connus..
FAQ
1. Who are we?Nous sommes basés dans le Jiangsu, Chine, à partir de 2010, vendre en Océanie(50.00%),Amérique du Nord(30.00%),Amérique du Sud(10.00%),Europe du Sud(10.00%). We have 500 ㎡ of office and 8000 ㎡of factory. 2. How can we guarantee quality?Toujours un échantillon de pré-production avant la production en série;Toujours inspection finale avant expédition;3.What can you buy from us?Cartridge Heater/Cast-In Heater/Circulation Heater/Engine Block Heater/Open Coil Heater, Élément chauffant à ailettes/bande chauffante/élément chauffant4. Why should you buy from us not from other suppliers?1.Plus que 40 years experience
Commentaires
Il n'y a pas encore de critiques.
