New 500w 800w 1000w Stainless Steel Finned Heater Air Tubular Heater Electric Air Fin Heater
An Air Fin Heater is a highly efficient and effective device used to transfer heat from one medium to another. It utilizes a series of fins to increase the surface area of heat transfer, resulting in faster and more efficient heating.
Description
500w 800w 1000w Stainless Steel Finned Heater Air Tubular Heater Electric Air Fin Heater
Description du produit
Air Fin Heaters are the most common heaters and are best suited for a large number of applications such as conduction, convection, and radiation. the heaters can be produced almost any shape or size.Air Fin Heater is constructed like basic tubular elements with the addition of continuous spiral fins,4-5 per inch permanently furnace brazed to the sheath. Fins greatly increase surface area and permit faster heat transfer to air, resulting in lower surface element temperatures.
Technical Details | |
Construction Diameter | 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc. |
Matériau du tube | stainless steel 304/321/316/310S,Incoloy 800 840 |
Power Tolerance | Tolerance±10% |
Use of Alloys | Suitable for heater tube AISI 304 in water or humid enviroment max temperature up to 170°C. In air max 220°C |
Fil | M12 M14 M16 M18 |
Watt Density | Tube watt density of 30 watts sq in-suitable for many uses |
Custom | Custom configurations, lengths, watts, volts available |
TUBE MATERIAL | FIN MATERIAL | TUBE DIA.(MM) | FIN HEIGHT (MM) | FIN THICKNESS (MM) | FIN PITCH (MM) |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ6.7 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ8 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ9 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ10 | 5-7 | 0.3-0.4 | 3-7 |
SS304/316/321/Incoloy | S.Steel / mild Steel | F12 | 5-7 | 0.3-0.4 | 3-7 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ14 | 5-10 | 0.3-0.4 | 3-7 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ16 | 5-10 | 0.3-0.4 | 5-10 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ20 | 5-10 | 0.3-0.4 | 7-10 |

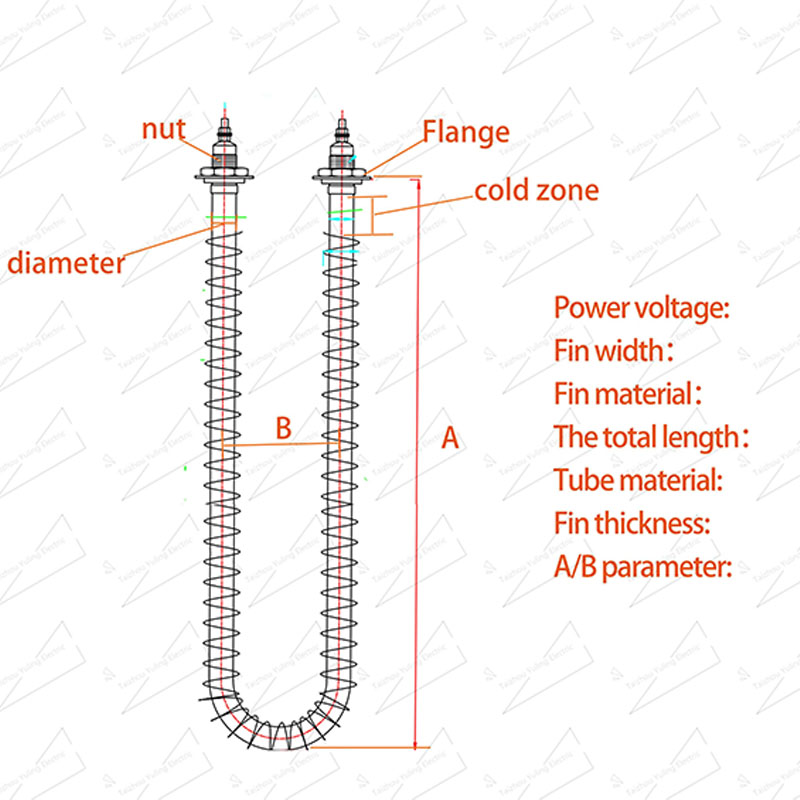

How to order?

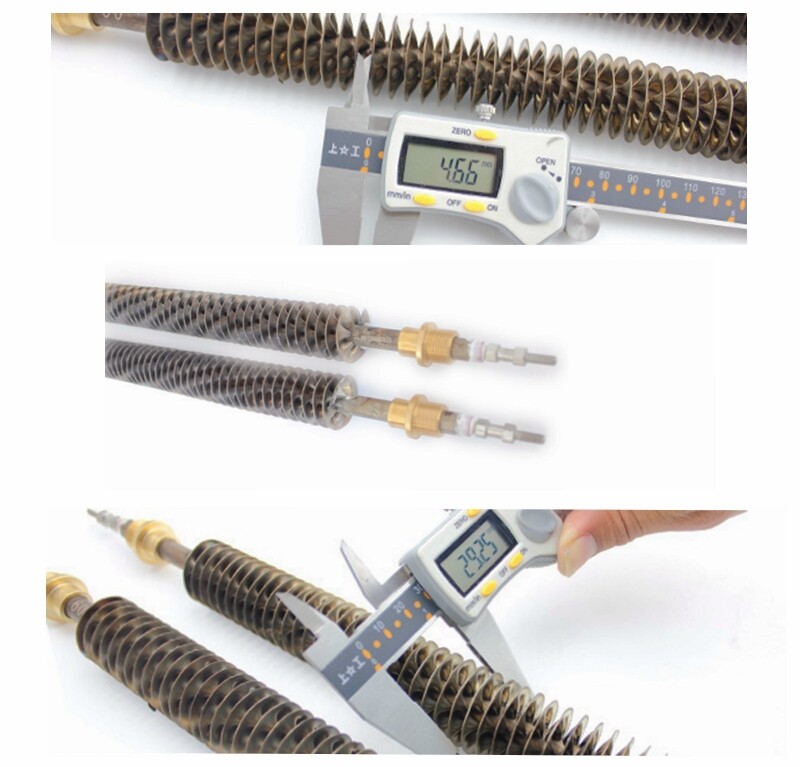

Détails Images
Application
Évaluation client
Emballage & Livraison
Profil de l'entreprise
Depuis notre implantation à 1996, nous sommes situés dans le célèbre parc industriel de Qingtong, District de Jiangyan, Ville de Taizhou, Province de Jiangsu. En tant que fournisseur renommé de grandes marques telles que Haier, Maintenant, Sampux, Arrêt, et d'autres, our products are of the highest quality and sold mainly in the European market.At Yuling, nous sommes fiers de notre engagement envers la qualité et la sécurité, en témoignent nos certifications telles que la norme ISO9001:2008 système de qualité international, Sécurité des produits CQC, CE, RoHS, et tests UL. Nous nous efforçons de maintenir les normes les plus élevées dans nos produits et services et d'améliorer continuellement nos processus de production..
FAQ
1. Who are we?Nous sommes basés dans le Jiangsu, Chine, à partir de 2010, vendre en Océanie(50.00%),Amérique du Nord(30.00%),Amérique du Sud(10.00%),Europe du Sud(10.00%). We have 500 ㎡ of office and 8000 ㎡of factory. 2. How can we guarantee quality?Toujours un échantillon de pré-production avant la production en série;Toujours inspection finale avant expédition;3.What can you buy from us?Cartridge Heater/Cast-In Heater/Circulation Heater/Engine Block Heater/Open Coil Heater, Élément chauffant à ailettes/bande chauffante/élément chauffant4. Why should you buy from us not from other suppliers?1.Plus que 40 years experience
