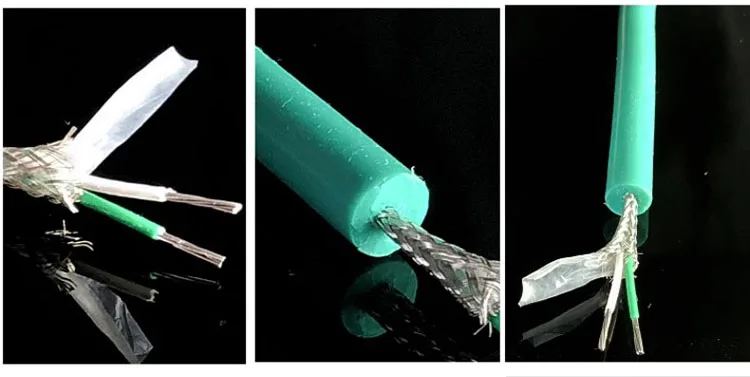

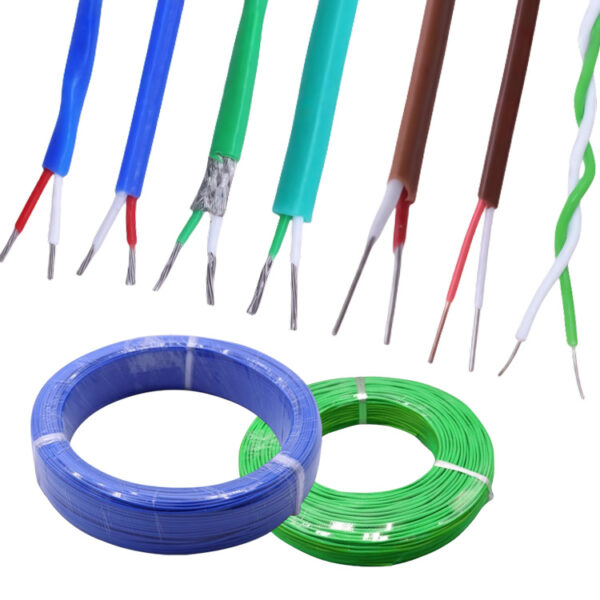

Soft Silicone Type k Thermocouple Wire Extension Wire White Green KX/KC Thermocouple Cable for Test Temperature Sensor
Kirjeldus
Tootekirjeldus

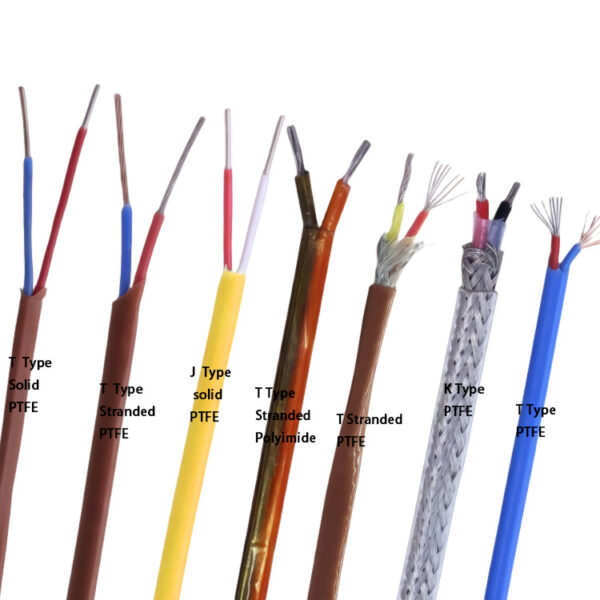

Thermocouple compensating wire is used to connect the electrode (cold side of thermocouple) with display instrument in order to form a temperature measurement system. The working temperature is -25~200℃. Our plant mainly manufacture type KX,NX,EX,JX,NC,TX,SC/RC,KCA,KCB and WREC compensating wire for thermocouple, and they are used in temperature measurement instruments and cables. Our thermocouple compensating products are all made abiding by GB/T 4990-2010 Alloy wires of extension and compensating cables for thermocouples (Chinese National Standard), and also IEC584-3 Thermocouple part 3-compensating wire(International standard).TT-K-30-SLE (K type) insulation layer high temperature resistance: 260℃ line core diameter:2×φ0.255mmTT-K-36-SLE (K type) insulation layer high temperature resistance: 260℃ line core diameter: 2×φ0.127mmTT-t-30-sle (type T) insulation layer high temperature resistance: 260℃ line core diameter: 2×φ0.255mmTT-t-36-sle (type T) insulation layer high temperature resistance: 260℃ line core diameter:2×φ0.127mmTT-j-30-sle (tüüp J) insulation layer high temperature resistance: 260℃ line core diameter: 2×φ0.255mmTT-j-36-sle (tüüp J) insulation layer high temperature resistance: 260℃ line core diameter:2×φ0.127mmGG-j-30-sle (tüüp J) insulation layer high temperature resistance: 482℃ line core diameter:2×φ0.255mmGG-k-36-sle (type K) insulation layer high temperature resistance: 482℃ line core diameter: 2×φ0.127mmGG-k-30-sle (type K) insulation layer high temperature resistance: 482℃ line core diameter:2×φ0.255mmGG-k-24-sle (type K) insulation layer high temperature resistance: 482℃ line core diameter:2×φ0.511mm
Spetsifikatsioon
K | 0-900℃ |
J | 0-600℃ |
E | 0-400℃ |
100 Pt | -200-500℃ |
Materjal | PTFE | PFA | PVC | Klaaskiud | Räni | kapt | Kvartskiud |
Max temp(°c) | 260 | 260 | 108 | 400 | 200 | 400 | 800 |
Applications* Metallurgy* Chemical industry, petroleum* Power generation* Defense and scientific research* Cables for connection between thermocouples and temperature display instrument.Features1) Continuous use up to 200℃2) Short term use up to 250℃3) Excellent heat, keemiline, abrasion and moisture resistance4) Provides accurate temperature measure with high temperature stability5) Calibration test report is available
KKK
1. K:Kes me oleme?
A:Meie tehas asutati aastal 1996, ja väliskaubanduse müügimeeskond loodi 20212.Q: Kas saame kasutada oma ekspediitorit?
A: Muidugi. Me saame selle neile saata.
3.Milliseid teenuseid saaksime pakkuda?Aktsepteeritud tarnetingimused: FOB,CFR,CIF,EXW,Kiire kohaletoimetamine；Aktsepteeritud maksevaluuta:USD,HKD,CNY;Aktsepteeritud maksetüüp: T/T, PayPal, sularaha;Räägitud keel: Inglise,hiina keel
4. K: Kuidas tellimust esitada?
A: Palun saatke oma tellimus meile e-postiga ja me kinnitame teiega.
Enne tsitaati, soovime teiega tooteteavet kinnitada, nagu suurus ja kogus. Igal juhul, võtke meiega otse ühendust e-posti või veebisõnumi teel.
5. K: Kuidas me tagame kvaliteedi?
A: Järgime rangelt tootmise kvaliteedijuhtimise standardeid; Kontrollige töökoda iga kord 2 tundi; Ja tal on oma uurimis- ja arendusmeeskond ning labor.
6. K:Mida saab meilt osta?
A: Elektriseadmed ja ventilatsioonitoode; Kui on muid vajadusi, samuti saame aidata klientidel osta.
