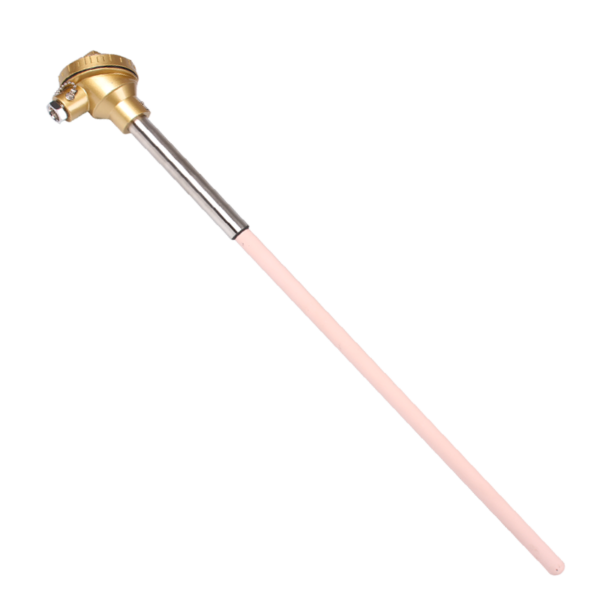

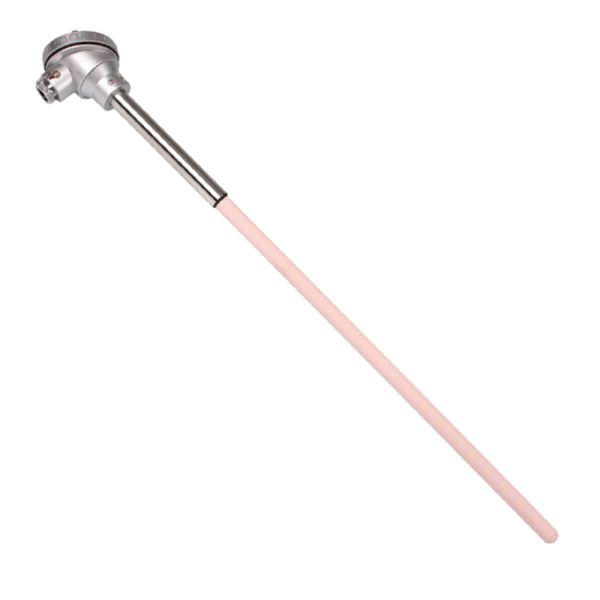

Type S/B/R Platinum Rhodium Thermocouple With Ceramic Protection Tube

Kõrge täpsusega plaatinaroodium termopaar täpseks temperatuuri mõõtmiseks äärmuslikes keskkondades.

Kategooria: Tag:

Kirjeldus

Type S/B/R Platinum Rhodium Thermocouple With Ceramic Protection Tube
Tootekirjeldus
Platinum Rhodium Thermocouples have the highest accuracy, best stability, wide temperature range, long service life and high temperature limit in the thermocouple series. It is suitable for use in oxidizing and inert atmospheres. It can also be used in vacuum for a short period of time, but it is not suitable for use in reducing atmospheres or in metal or non-metal vapor atmospheres. An obvious advantage of the Type B thermocouple is that it does not require compensation with a compensation wire, because the thermal electric potential is less than 3 μV in the range of 0 juurde 50 °C.Platinum-rhodium thermocouples work on the principle that when a platinum-rhodium thermocouple is joined by a conductor of two different components, when the temperature of the two junctions is different, a thermal current is generated in the loop. If there is a temperature difference between the working end of the thermocouple and the reference junction, the display meter will indicate the temperature value corresponding to the thermal electric potential generated by the thermocouple.Platinum rhodium thermocouple selection: It is recommended to use a single platinum rhodium thermocouple (platinum rhodium 10-platinum) when the measured temperature is normal at 1000~1300 °C. It is recommended to use a double platinum rhodium thermocouple when the measured temperature is normal at 1200~1600 °C. Platinum rhodium 30-platinum rhodium 6), so that the lifetime of the platinum rhodium thermocouple can be guaranteed within the temperature range used.
Conductor material
Tüüp
Lõpetamine
Spec.of protection tube(mm)
Use temperature °C
Kogupikkus
Length in fluid
External diameter of ceramic tube
Material of protection tube
PtRh10-Pt
WRP
S
300
350
400
450
550
650
900
1150
1250
150
200
250
300
400
500
750
1000
1100
φ16
φ25
High Aluminum tube
0-1300
PtRh30-Ptrh6
WRR
B
Corundum
0-1600
PtRh13-Pt
WRQ
R
φ16
φ20
High Aluminum tube
0-1200
Mini PtRh10-Pt
WRP-100
S
252
250
φ7
High Aluminum tube
0-1200
Platinum Rhodium Thermocouple
Keraamiline toru OD
Kogupikkus
Keelekümbluse pikkus
Ühendustoru OD
Ühendustoru pikkus
Traadi läbimõõt
16MM
300MM
150MM
22MM
150MM
0.3MM
16MM
400MM
250MM
22MM
150MM
0.3MM
16MM
500MM
350MM
22MM
150MM
0.3MM
16MM
600MM
450MM
22MM
150MM
0.3MM
16MM
700MM
550MM
22MM
150MM
0.3MM
16MM
800MM
650MM
22MM
150MM
0.3MM
16MM
900MM
750MM
22MM
150MM
0.3MM
16MM
1000MM
850MM
22MM
150MM
0.3MM
If you have any other questions, please click here to “Send an Inquiry”

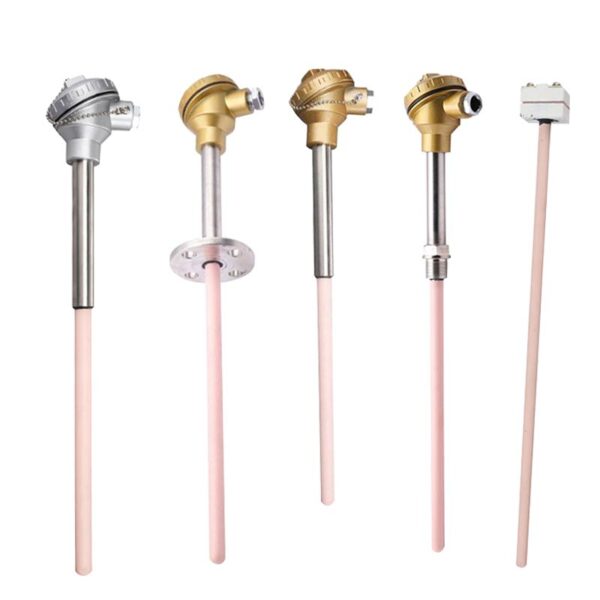

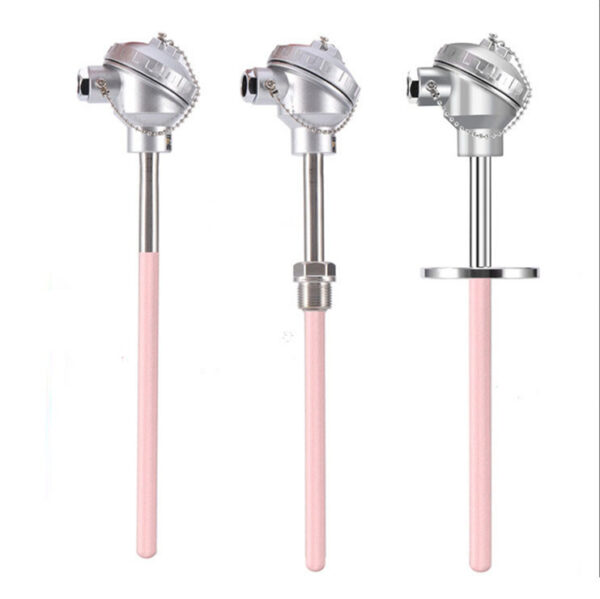

Types

Platinum Rhodium Thermocouple
Platinum Rhodium Thermocouple
Üksikasjad Pildid
Platinum Rhodium Thermocouple
Product Usage
Platinum Rhodium Thermocouple
Pakkimine&Saatmine
Platinum Rhodium Thermocouple
Ettevõtte tutvustus
Platinum Rhodium Thermocouple
Platinum Rhodium Thermocouple

1 arvustus Type S/B/R Platinum Rhodium Thermocouple With Ceramic Protection Tube

  1. Erik –

    The Platinum Rhodium Thermocouple is user-friendly and offers precise and consistent measurements.
