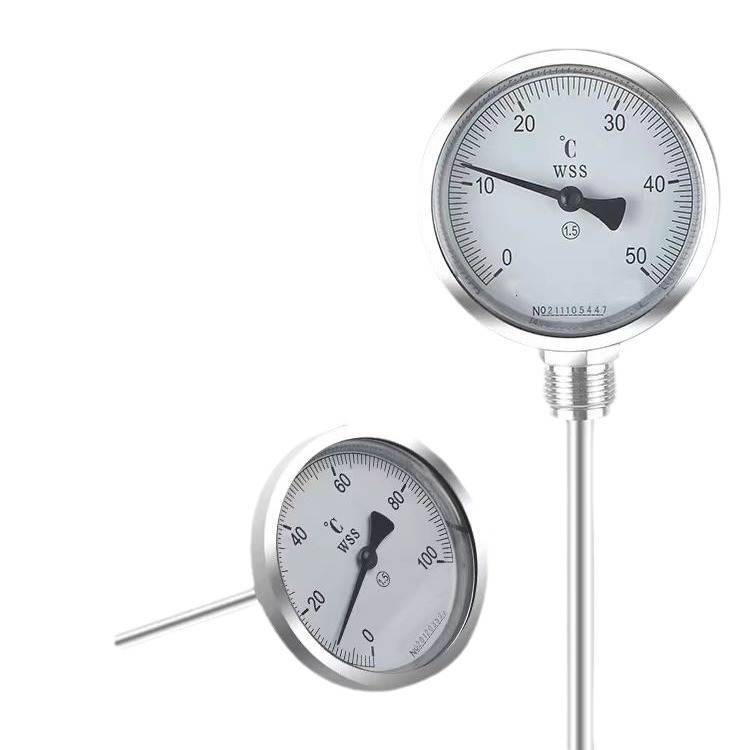

Industrial Bimetallic Thermometer Radial Reactor Boiler Pipe Pointer Temperature Gauge Stainless Steel Extended Probe
Kirjeldus
Tootekirjeldus
The WSS311/411 bimetallic thermometer is based on a combination of two metals with different coefficients of linear expansion.When the temperature changes, the two metals expand to different degrees of heat, driving the pointer to deflect to indicate the temperature. The temperature-sensing element is a hot bimetallic strip wound into a threaded shape, installed in a protective sleeve. One end is fixed as the fixed end, and the other end is connected to a fine shaft as the free end, with the free end connected to the pointer. When the temperature changes, the free end of the hot bimetallic strip rotates, driving the pointer to indicate the corresponding temperature on the scale.
Please confirm the following parameters before purchasing
1. Structural form 2. Dial diameter 3. Precision grade 4. Installation form 5. Insertion depth6. Pipe diameter 7. Temperatuuri mõõtmise vahemik
Spetsifikatsioon
Specification and model | WSS401/411-VD Bimetallic thermometer |
Dial diameter | 100mm（Customizable diameters such as 60/150mm are available) |
Diameter of the temperature measuring rod | 10mm(The pipe diameter can be customized) |
Interface size | M27*2(Movable thread) |
Mõõtmisulatus | 0-500℃ |
Installation form | Radial/Axial/universal |
Täpsus | Level 1.5 |
Material of probe rod | Roostevaba teras |
Termilise reaktsiooni aeg | ＜40s |
Protection grade | IP65 |
Connection method | No fixed device, movable internal and external threads, fixed thread/flange, ferrule thread/flange |
Pakkimine & Kohaletoimetamine
Oma kauba turvalisuse paremaks tagamiseks, professionaalne, keskkonnasõbralik, Pakutakse mugavaid ja tõhusaid pakenditeenuseid.
Ettevõtte profiil
we have passed the industry qualification certification to protect the product quality. We provide one-stop procurement services to reduce the procurement cost for customers.We offer a service of batch remittance to alleviate the pressure on customers’ capital turnover.
KKK
1. kes me oleme?Asume Jiangsus, Hiina, start from 2021,sell to North America(90.00%),Domestic Market(10.00%). Kokku on umbes 11-50 inimesed meie kontoris.2. kuidas saame tagada kvaliteedi?Enne masstootmist alati tootmiseelne proov;Alati lõplik ülevaatus enne saatmist;3.mida saate meilt osta?Heating Element, Ventilation Products, Thermocouple4. miks peaksite ostma meilt, mitte teistelt tarnijatelt?we have passed the industry qualification certification to protect the product quality. We provide one-stop procurement services to reduce the procurement cost for customers.5. milliseid teenuseid saame pakkuda?Aktsepteeritud tarnetingimused: FOB,EXW,DDP；Aktsepteeritud maksevaluuta:USD;Aktsepteeritud maksetüüp: T/T,L/C,D/P D/A;Räägitud keel:Inglise,hiina keel,prantsuse keel
