Name: 48V 600W Stainless Steel Immersion Heater RV Water Heater Heating Element - A Pioneering Force In Electrical Heating Industry
Price: 5.00 USD
Availability: InStock

Kirjeldus

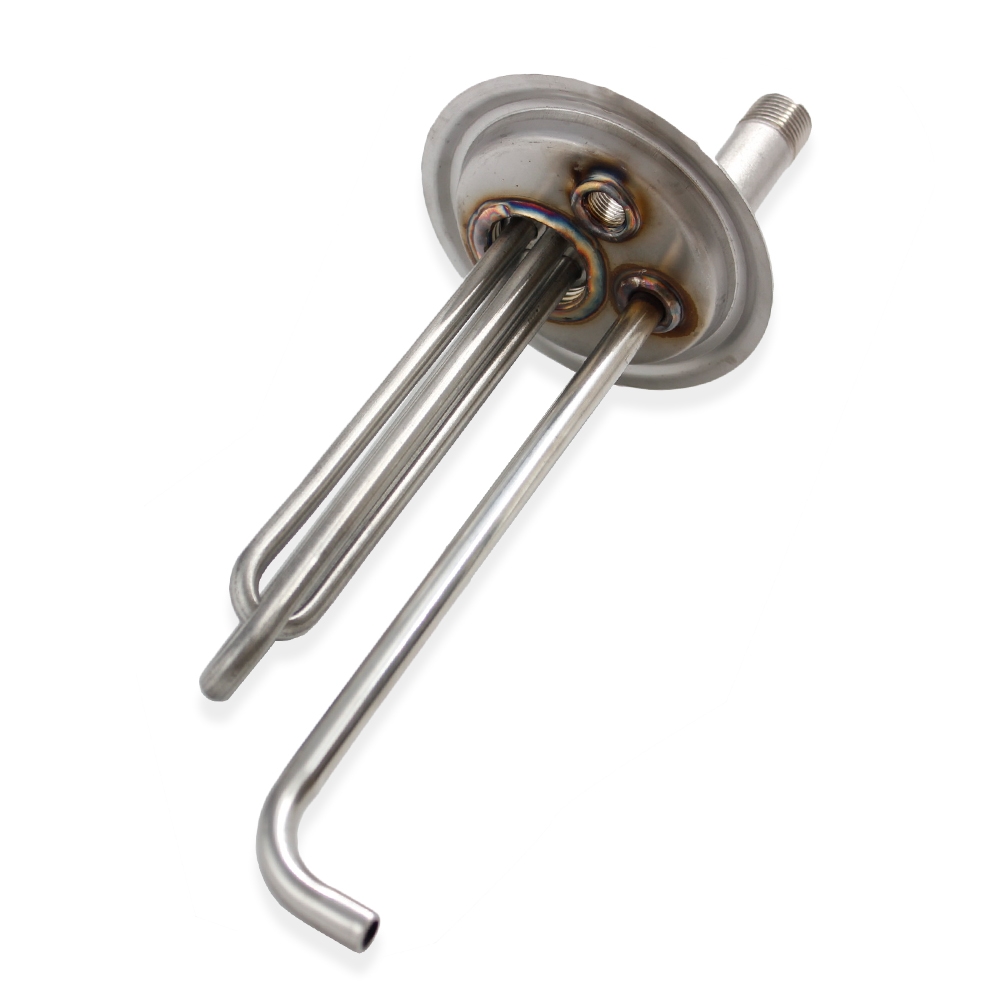

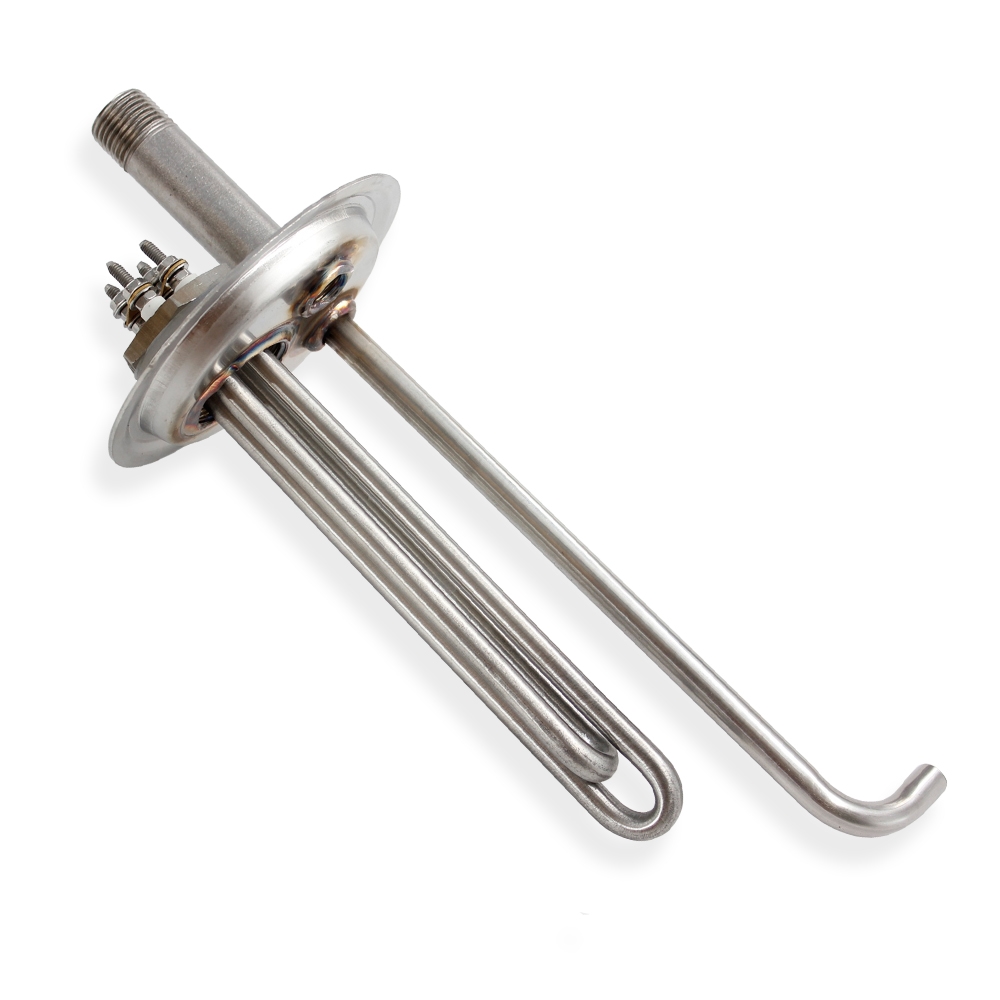

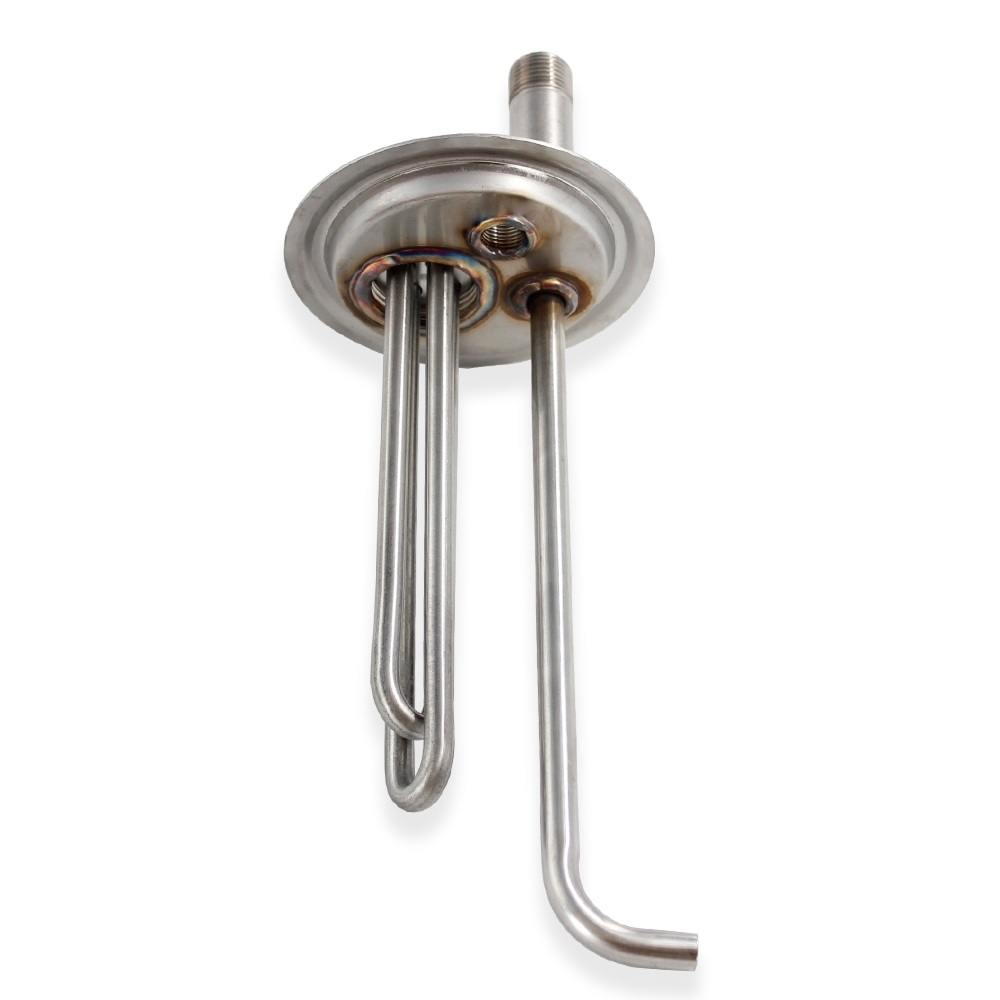

48V 600W Stainless Steel Immersion Heater RV Water Heater Heating Element

1. The heating elements can be used for both dc(solar PV , battery 12V/24V/36V/48V or custom)and AC electricity(110v/220v/380v or custom), according to customers’ requirements.

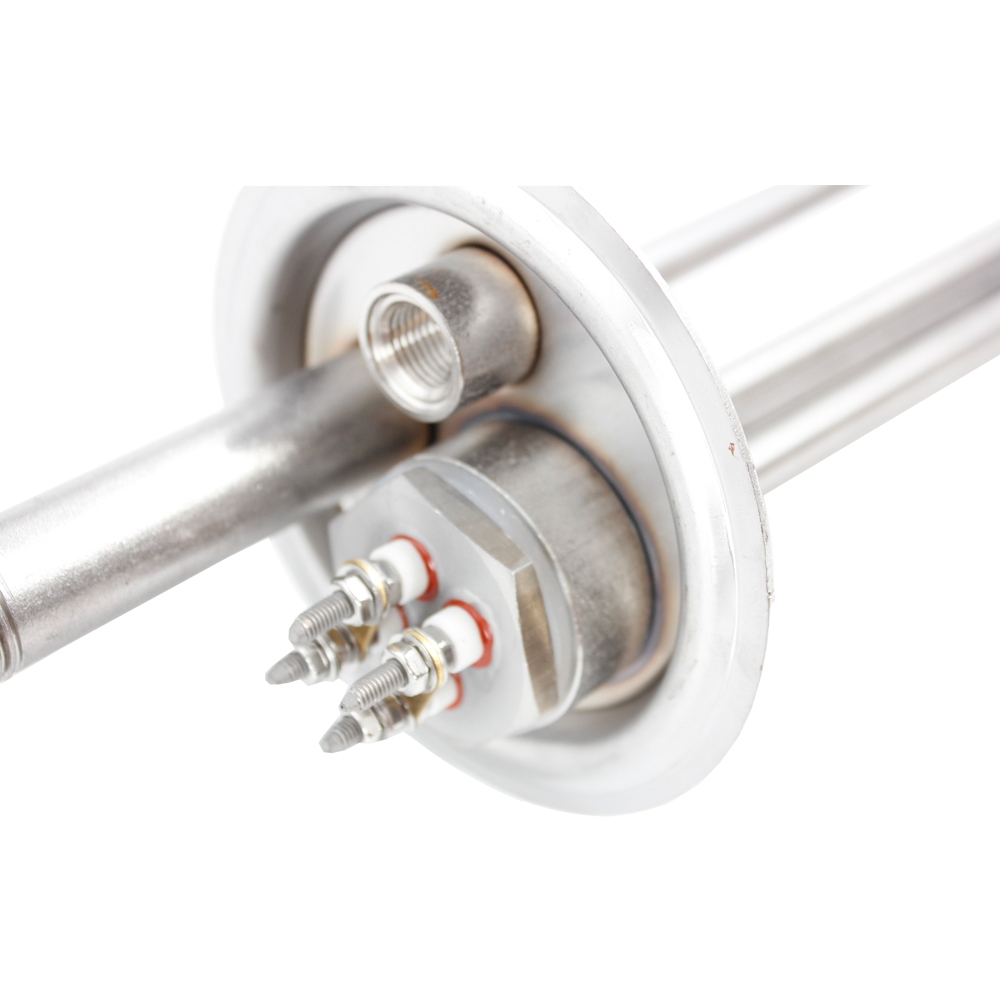

2. There are many types of terminals for wiring.

3.We fill the tube with high purity magnesium oxide powder for longer service life.

4.Custom the Flange size, sheath material, watt,pinge, immersion length, according to applications.
5.Explosion-proof & temperature control features also can be provided, if required.
6. The heating elements are CE,ATEX, CQC,ISO9001,ROHS,UL,CSA certified.Any request, please do not hesitate to let me know.

Toote omadused:

* The size and power all can be designed according to the working environment

* More safer than AC electric

* Environment protection and energy saving.

Spetsifikatsioon

Technical Parameter
Toru läbimõõt	Φ6.8mm – φ20mm
Toru pikkus	200mm – 2000mm(kohandatud)
Thread/tri-clamp/Flange	1”/1.25”/1.5″ või kohandatud
Pikkuse tolerants	±1.5%
Pinge	12V/24V/36V/48V/110v/220V/380V or Customized
Võimsus	300W/500W/1kw /1.5kw/3kw or customized
Isolatsioonitakistus	≥1000M
Võimsuse tolerants	+5% – 10%
Lekkevool	≤0,5mA
Vastupidavus traat	Ni80Cr20 or Cr25AI5
Sheath Materials	304 Roostevaba teras, , 310 Roostevaba teras, 316 Roostevaba teras, Incoloy 800, Incoloy 840
Surface Treatment	Polishing, coating, plating

Kuidas tellida ?Pls provide this informations as follows:(example)1.Vottage :220/380V 2.Wattage :6KW3.Length: 600MM4.Thread: 1 1/2″5. Materjal: Roostevaba teras, AISI 321 304, SUS 316L

Rakendus

This product is applicable to Standard American water heater element replacement, Vee eelsoojendus, Laagrilised, Haagissuvilad, tööstuslikud masinad ja seadmed, Tühjendab teie auto akut, et saada kõikjal kaasaskantavat kuuma vett, Otsesed tuule- ja päikeseenergia rakendused ja paljud, palju rohkem kasutusviise, kus on vaja soojust või ümbersuunamiskoormust.
