Electric Tubular Brass Flange Immersion Heater Screw-in Water Heater Element
Electric Tubular Brass Flange Immersion Heater Screw-in Water Heater Element
Kirjeldus
Electric Tubular Brass Flange Immersion Heater Screw-in Water Heater Element
Product introduction
1. Heaters are suitable for the direct heating of liquid and gaseous media;
2. screw-in heating elements can be used in the warm and hot water, heating the oil in water heater, in heat exchangers, in washing and cleaning systems and air heating;
3. Stainless steel heating coil, no cap, no regulator, no delimiters;

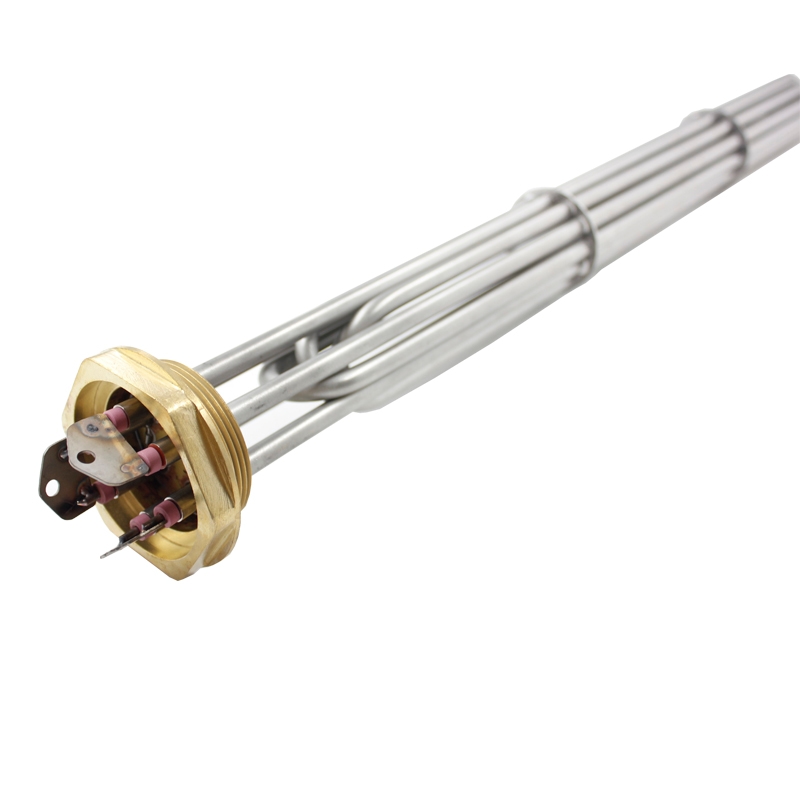

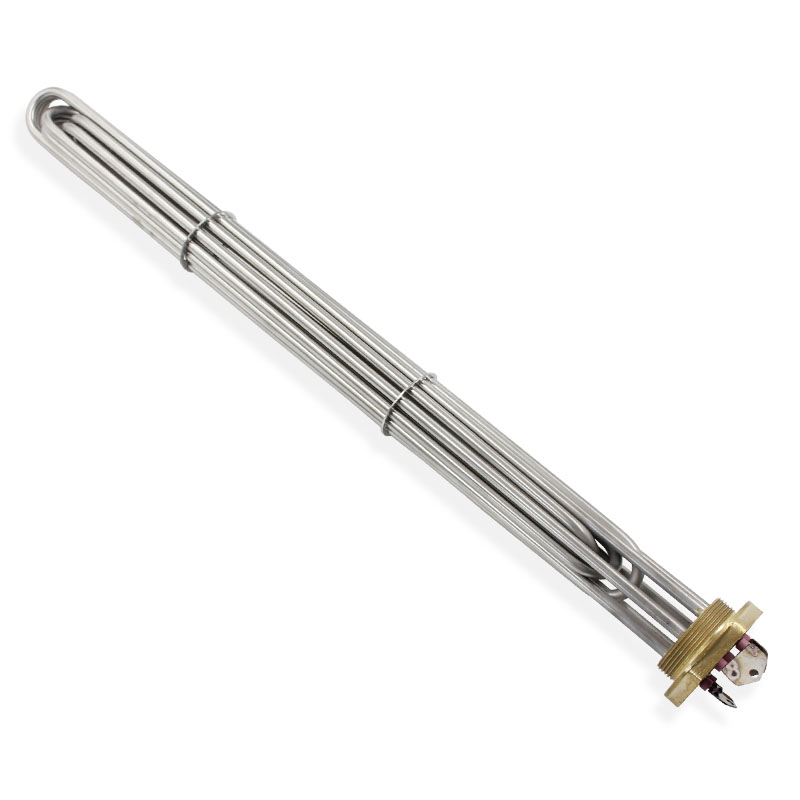

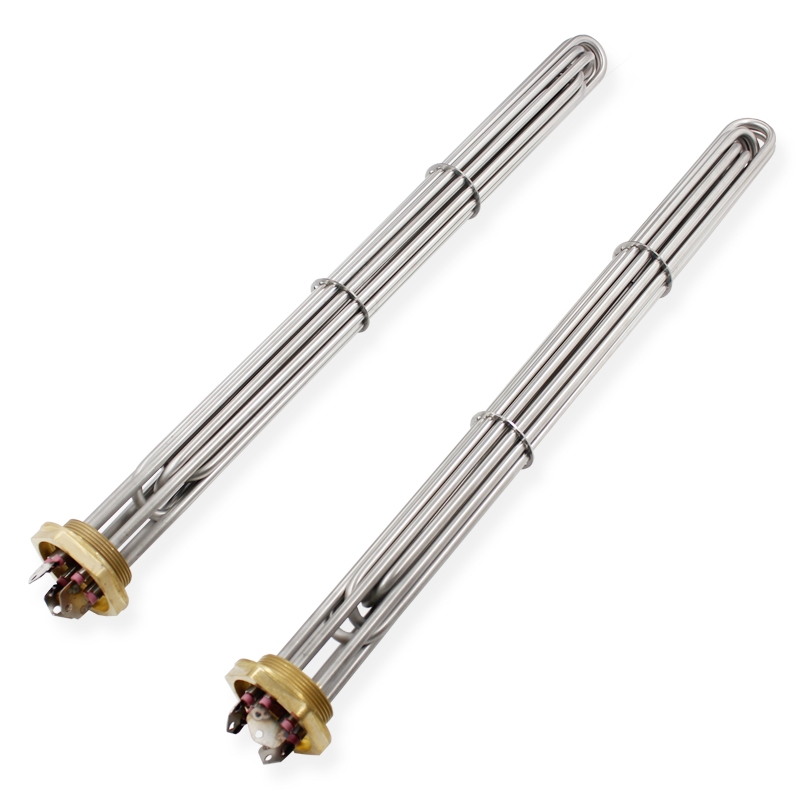

4. Three U-shaped tubular heating elements are 8.5 mm diameter brazed into a brass fitting;
5. The immersion heater is supplied without cap
SPECIFICATIONS FOR 2″ Brass flange immersion water heater |
* Material thread – brass * Size thread – 1 1/2 “- with hex * Cable without protective cap * Immersion depths – from 150 – 1600mm * Heat output – 1.5 juurde 20.1 kW * Medium – water
Heater Element Specifications | 20KW |
Pinge | 400V |
Võimsus | 20KW |
Specific surface power | 9.7 W/cm2 |
Pikkus | 653mm ±5 |
Sheath material | SS316 |
Fitting | 2“ flange |
Garantii | 1 year |
To Order, Please Specify:
1-Pipe Material2-The required pipe diameter3-The Pipe Length4-Voltage and Watt5-If possible, drawing will be great helpful
Rakendus
Brass Flange Immersion Heaters are used for heating liquids and gases in a variety of processes. These heaters are ideal for process water heating and freeze protection. All types of oils and heat transfer solutions can also be heated using these compact, easily controlled units. The direct immersion method is energy efficient and well suited for many applications:Swimming Pool HeatingHot Water Storage TanksWarming EquipmentPreheating all Grades of OilFood Processing EquipmentCleaning and Rinsing TanksHeat Transfer SystemsProcess Air EquipmentBoiler EquipmentFreeze Protection of Any Fluid
Üksikasjalikud pildid
Kliendi hindamine
Sertifikaadid
KKK
1. Kes me oleme?
1.We have been doing foreign trade since 2010;
2.Sell to Domestic Market(50.00%), Põhja-Ameerika(30.00%), Kagu-Aasias(10.00%), Lääne-Euroopa(10.00%);
3. We have 500m² of office and 2500m² of workshop.
2. Kuidas saame tagada kvaliteedi?
1.Toodame rangelt kooskõlas kvaliteedijuhtimisstandardiga;
2.Kontrollime töökoda üks kord 2 tundi;
3.Kinnitage iga tellimuse näidisandmed kliendiga.
3. What can you buy from us?
1.Elektriseade (Kiirkütteseade, Uimedega küttekeha, Ahju kütteelement, Ringluskütteseade);
2.Seotud tooted;
3.If there are other needs, we also can help customers to purchase.
4. Why should you buy from us not from other suppliers?
1.Rohkem kui 40 aastat’ heating element industrial experience;2.UL(E501501)/CE/RoHS/CQC ISO9001:2008;
3.R&D-meeskond ja labor;
4.Tööstuse ja kaubanduse integreerimine on klientide hangetele väga kasulik;
5.Garantiiajal olevad tooted asendatakse tasuta.
