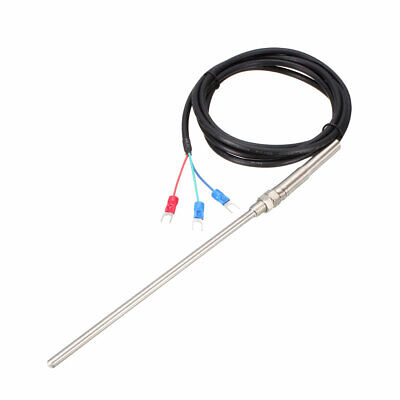

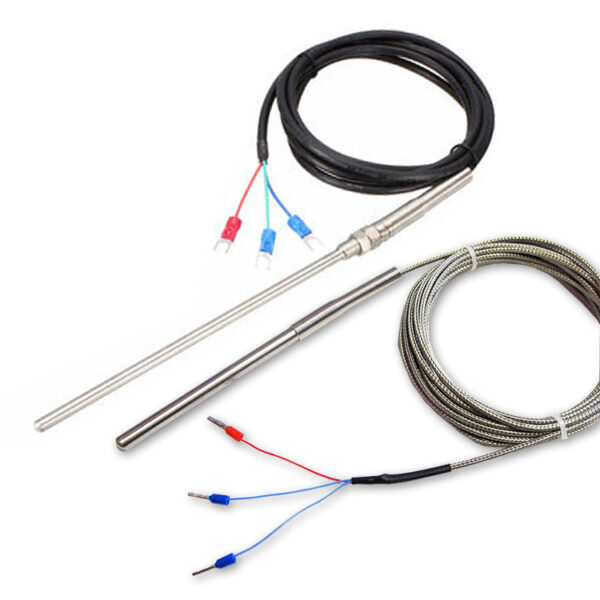

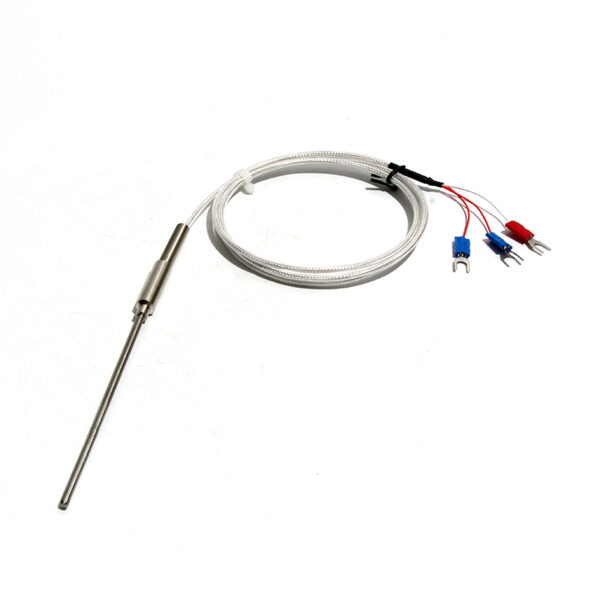

K/J/PT100 type Flexible Thermocouple Sensor Probe with Insulated High Temperature Lead Wire

Flexible thermocouple sensor probe is a bendable temperature sensor used for measuring temperature in hard-to-reach places.

Kategooria: Tag:

Kirjeldus

K/J/PT100 type Flexible Thermocouple Sensor Probe with Insulated High Temperature Lead Wire
Tootekirjeldus
Thermal resistance, high sensitivity, strong stability, interchangeability and accuracy are relatively good, but need power excitation, can not measure the temperature change instantaneously. Industrial thermal resistance is generally Pt100, Pt10, Cu50, Cu100, platinum thermal resistance temperature measurement range is generally -200 ~ 800℃, often used in power, keemiatööstus, injection molding, packaging, food, incubator, oven temperature measurement.
PT100 RTD sensor advantage:
①Less thermal response time, reduce the dynamic error;
②Small diameter, length is not restricted;
③High measuring accuracy;
④Imported film resistance element;
⑤Performance stable and reliable.
Spetsifikatsioon
Tootenimi
PT100 Flexible Thermocouple Sensor Probe
Tüüp
PT100-type
Product mode
WZPK-191
Sondi läbimõõt
3/4/5mm
Sondi pikkus
Customized according to customer requirements
Juhtme pikkus
1m/2m/3m/4m/5m(there is tolerance, if care, please do not make order.)
Wire material
Polytafluoro-silver-plated leads
Temperatuuri mõõtmise vahemik
-200-450C
Custom
Jah, can custom probe diameter. pikkus, cable length.
Paki sisu
1 × andur
Meeldetuletus: Mida suurem on sondi läbimõõt, seda parem on temperatuuritaluvusefekt.
Ostjatel palutakse võimalikult palju esitada tegelik mõõtevahemik, et saaksime kohaneda sobiva läbimõõdu ja materjaliga.
Flexible Thermocouple Sensor Probe
Flexible Thermocouple Sensor Probe
New 304SUS high density braided sheath
High corrosion resistance and wear resistance, use long life and durability.
Flexible Thermocouple Sensor Probe
Roostevabast terasest sond
Choose national standard 304 stainless steel raw material.
Flexible Thermocouple Sensor Probe
Be anti-interference
Teflon high temperature silver plating shield tetrafluoro material, with anti-interference ability.
Tüüp
Lõpetamine
Temperature Range(°C)
Short-term Temperature Measurement(°C)
WRNK-191
K
0-900°C
0-1000°C
WREK-191
E
0-600°C
0-700°C
WRCK-191
T
0-200°C
0-400°C
WRFK-191
J
0-450°C
0-600°C
WRMK-191
N
0-1100°C
0-1200°C
WRPK-191
S
0-1250°C
0-1400°C
WZPK-191
PT100
-20-420°C
0-600°C
Flexible Thermocouple Sensor Probe
The thermal response time shall not exceed that specified in the following table :(s)
Läbimõõt(mm)
Termopaar
Ungrounded
Grounded
2.0
0.5
0.4
3.0
1.2
0.6
4.0
2.5
0.8
5.0
4.5
1.2
6.0
6.0
2.0
8.0
8.0
4.0
Tootenäitus
Flexible Thermocouple Sensor Probe
Flexible Thermocouple Sensor Probe
Seotud tooted
Pakkimine&Saatmine
Flexible Thermocouple Sensor Probe
Ettevõtte tutvustus
Flexible Thermocouple Sensor Probe
Flexible Thermocouple Sensor Probe
