AGRP Silicone Braided Wire High-temperature Resistant Wire Waterproof Oil-resistant and Scratch-resistant Heating element
Kirjeldus
Tootekirjeldus
AGRP Silicone Braided Wire High-temperature Resistant Wire Waterproof Oil-resistant and Scratch-resistant Heating element
The core wire of the product is made of AGRP silicone material, combined with high-purity conductor core wires. It has excellent high-temperature resistance and can maintain a stable operating temperature range of -60℃ to 200℃ for a long time. The instantaneous high-temperature resistance can reach 250℃. Even in harsh environments such as sealed, high-temperature industrial furnaces or car engine compartments, the insulation layer of the wire can remain intact without aging or cracking, and the heating elements can operate normally. This effectively avoids potential safety hazards such as short circuits and leakage caused by high temperatures, significantly enhancing the reliability of equipment operation.
Spetsifikatsioon
Tootenimi | Silicone braided high-temperature wire |
Mudel | AGRP |

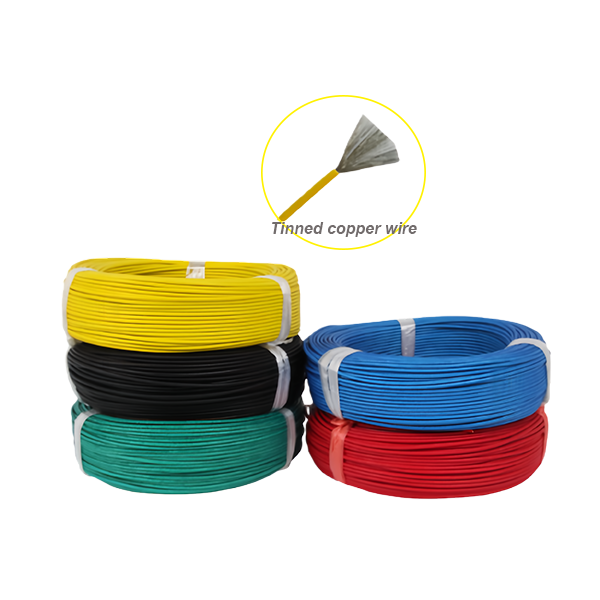

Wire core material | Tinned copper wire |
Wire core specification | 0.25MM2*30 |
Isolatsioonimaterjal | Silicone rubber + glass fiber weaving |
Pinge | 300V、500V |

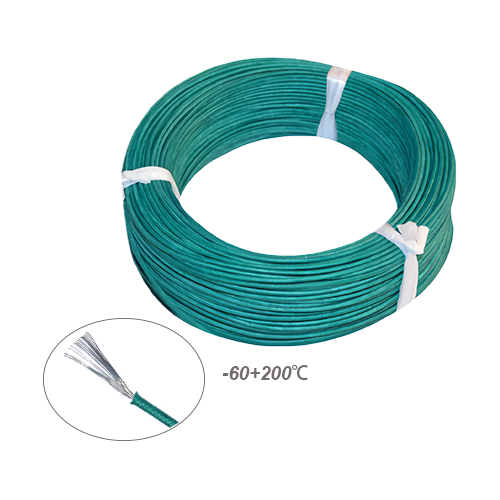

Temperatuuri vahemik | -60’℃-200°C |
Cross-section | Conductive structure | Insulation thickness | Läbimõõt |
0.3m㎡ | 17/0.15mm | 0.6mm | 1.8±0.05mm |
0.35m㎡ | 20/0.15mm | 0.6mm | 1.9±0.05mm |
0.5m㎡ | 20/0.18mm | 0.6mm | 2.2±0.05mm |
0.75m㎡ | 24/0.20mm | 0.6mm | 2.4±0.10mm |
1m㎡ | 30/0.20mm | 0.6mm | 2.5±0.10mm |
1.5m㎡ | 30/0.25mm | 0.7mm | 2.9±0.10mm |
2m㎡ | 40/0.25mm | 0.7mm | 3.1±0.10mm |
2.5m㎡ | 49/0.25mm | 0.8mm | 3.7±0.10mm |
4m㎡ | 56/0.30mm | 0.8mm | 4.2±0.10mm |
6m㎡ | 84/0.30mm | 0.8mm | 5.0±0.10mm |
10m㎡ | 84/0.40mm | 1.0mm | 6.8±0.10mm |
16m㎡ | 126/0.40mm | 1.0mm | 8.0±0.10mm |
25m㎡ | 196/0.40mm | 1.2mm | 10±0.20mm |
35m㎡ | 280/0.40mm | 1.4mm | 11.8±0.20mm |
50m㎡ | 399/0.40mm | 1.6mm | 13.6±0.20mm |
Product structure
Seotud tooted
Kliendi hindamine
Pakkimine & Kohaletoimetamine
Product Packaging Solutions
1.Our services include individual unit packaging with optional labeling to streamline operations and reduce time costs.
2.We provided fumigated solid wood pallets for heavy-duty exports and durable plywood crates for lighter loads, exempt from fumigation.
3.All solutions adhere to international trade standards, including certification for shipments to the US, Kanada, and the EU, ensuring seamless customs clearance and pest control compliance.
2.We provided fumigated solid wood pallets for heavy-duty exports and durable plywood crates for lighter loads, exempt from fumigation.
3.All solutions adhere to international trade standards, including certification for shipments to the US, Kanada, and the EU, ensuring seamless customs clearance and pest control compliance.
Our core competencies:
1.Vertical Manufacturing Expertise:The factory which we cooperated with operating professional production facilities, they maintain full control over Research and development. This vertical integration ensures stringent quality compliance (ISO 9001, CE,CQC,Rohs, UL) and enables competitive pricing without intermediaries.
2.Dual-Channel Procurement Solutions:Direct OEM Services, Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
3.Direct OEM Services: Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
4.Technical Partnership Model:Beyond transactional engagements, we provide ventilation system design and Energy efficiency audits for heating solutions,multilingual after-sales technical support.
5.Innovation and Sustainability:Investing 8% of annual revenue in R&D to be committed to creating better new products.
2.Dual-Channel Procurement Solutions:Direct OEM Services, Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
3.Direct OEM Services: Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
4.Technical Partnership Model:Beyond transactional engagements, we provide ventilation system design and Energy efficiency audits for heating solutions,multilingual after-sales technical support.
5.Innovation and Sustainability:Investing 8% of annual revenue in R&D to be committed to creating better new products.
KKK
1. K:Kes me oleme?
A:Meie tehas asutati aastal 1996, ja väliskaubanduse müügimeeskond loodi 20212.Q: Kas saame kasutada oma ekspediitorit?
A: Muidugi. Me saame selle neile saata.
3.Milliseid teenuseid saaksime pakkuda?Aktsepteeritud tarnetingimused: FOB,CFR,CIF,EXW,Kiire kohaletoimetamine；Aktsepteeritud maksevaluuta:USD,HKD,CNY;Aktsepteeritud maksetüüp: T/T, PayPal, sularaha;Räägitud keel: Inglise,hiina keel
4. K: Kuidas tellimust esitada?
A: Palun saatke oma tellimus meile e-postiga ja me kinnitame teiega.
Enne tsitaati, soovime teiega tooteteavet kinnitada, nagu suurus ja kogus. Igal juhul, võtke meiega otse ühendust e-posti või veebisõnumi teel.
5. K: Kuidas me tagame kvaliteedi?
A: Järgime rangelt tootmise kvaliteedijuhtimise standardeid; Kontrollige töökoda iga kord 2 tundi; Ja tal on oma uurimis- ja arendusmeeskond ning labor.
6. K:Mida saab meilt osta?
A: Elektriseadmed ja ventilatsioonitoode; Kui on muid vajadusi, samuti saame aidata klientidel osta.
