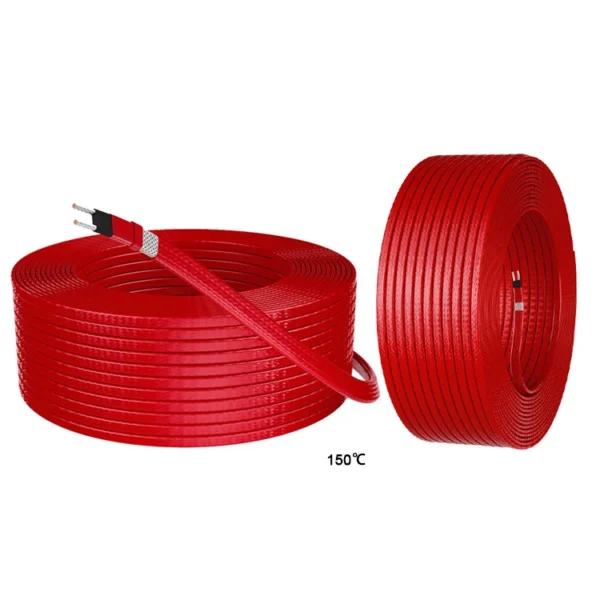

Flame Retardant 8MM Self-limiting Electric Heating Cable Solar Pipeline Antifreeze Self-Regulating Heat Trace Cable

Flame Retardant 8MM Self-limiting Electric Heating Cable Solar Pipeline Antifreeze Self-Regulating Heat Trace Cable


Kategooria:

Kirjeldus

Flame Retardant 8MM Self-limiting Electric Heating Cable Solar Pipeline Antifreeze Self-Regulating Heat Trace Cable
Tootekirjeldus
Self Regulating Heating Cable Anti Freezing Pipe Heating Cable Roof De-cing Gutter Snow Melting Heat Trace

Self regulating cables have an adaptable heat output and consist of two parallel bus wires embedded in a networked plastic heat element with surrounding carbon particles. If the temperature increases during operation, the plastic will expand and the distance between the carbon particles increases, resistance increases and output drops. When ambient temperature falls, this process is reversed and heat output increases – this is the principle of self regulation.

Self regulating cables intelligently adjust heat output according to ambient or air temperature – whenever the heat loss of the insulated pipe, tank or heated process increases (as ambient temperature drops), the heat output of the cable increases. Conversely, when the heat loss decreases (as the ambient temperature rises or product flows), the heating cable reacts by reducingits heat output.
Self-limiting Electric Heating Cable
Self-limiting Electric Heating Cable
The main advantage: self-regulating heat cables can be cut to length off the roll and have a constant power per meter. Furthermore, they are very easy to install.

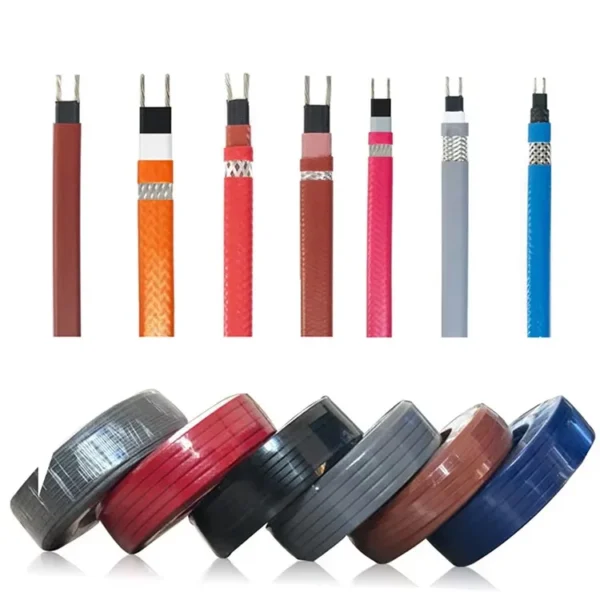

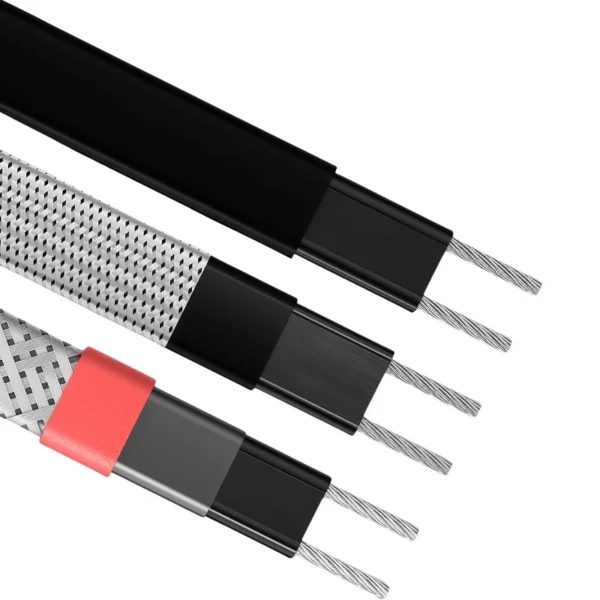

Structure1 copper core wire: 7 × 0.23; 7 × 0.3; 7 × 0.42;2 conductive plastic layer: ordinary PTC; flame retardant PTC; fluorine-containing PTC;3 insulating layer: modified polyolefin; flame retardant polyolefin; fluorine-containing polyolefin; perfluorinated material;4 Shield: tinned soft round copper wire (covering density 80%);5 sheath layer: modified polyolefin; flame retardant polyolefin; fluorine-containing polyolefin; perfluorinated material;

Spetsifikatsioon
1. Standard color: black, gray low temperature electric heating2. Temperatuuri vahemik: the highest maintenance temperature of 65 °C, the highest surface temperature of 70 ° C ± 5 ° C maximum temperature: modified polyolefin 105 °C, flame retardant polyolefin 135 ° C fluorine-containing polyolefin 180 °C,perfluorinated material 205 ° C.3. Construction temperature: Minimaalne: -60 °C4. Termiline stabiilsus: after cycling back and forth between 10 ° C and 99 °C 300 times, the heat of the tropical heat ismaintained above 90%5. Bending radius: 25.4mm at 20°C at room temperature; 35.0mm at 30°C at low temperature6. Isolatsioonitakistus: When the cable length is 100m and the ambient temperature is 75°C, shake it with 2,500VDC for 1 minute. The minimum value of insulation resistance (between conduction and shielding) is 1200MΩ. Working voltage: 12V 24V 36V 110V 220V 380V 10°C output power: 1OW/m 15W/m 20W/m 25W/m7. Explosion-proof mark: ExeIIT4
Tüüp
Võimsus(W/M 10℃)
Max maintain temp(℃)
Max.exposure temp(℃)
Min. installation temp(℃)
Max. length of single power supply
Madala temperatuuri seeria
10,15,25,35
65℃±5 ℃
105℃
-60℃
7*0.5 100meters;19*0.32 120meters.
Medium temperature series
35,45,50,60
105 ℃ ± 5 ℃
135℃
-40℃
7*0.5 100meters;19*0.32 120meters
High temperature series
35,50,60
135 ℃ ± 5 ℃
155℃
-30℃
7*0.5 100meters;19*0.32 120meters
Self-limiting Electric Heating Cable
Self-limiting Electric Heating Cable
Rakendus

Heating of buildings, torujuhtmed, cold-storages, doors and warehouse floors, chute heating, gutter and roof defrosting, jne.

Self-limiting Electric Heating Cable
Self-limiting Electric Heating Cable
Self-limiting Electric Heating Cable
Self-limiting Electric Heating Cable
Pakkimine & Kohaletoimetamine
Self-limiting Electric Heating Cable
Self-limiting Electric Heating Cable
Kilekott & Karpkarp

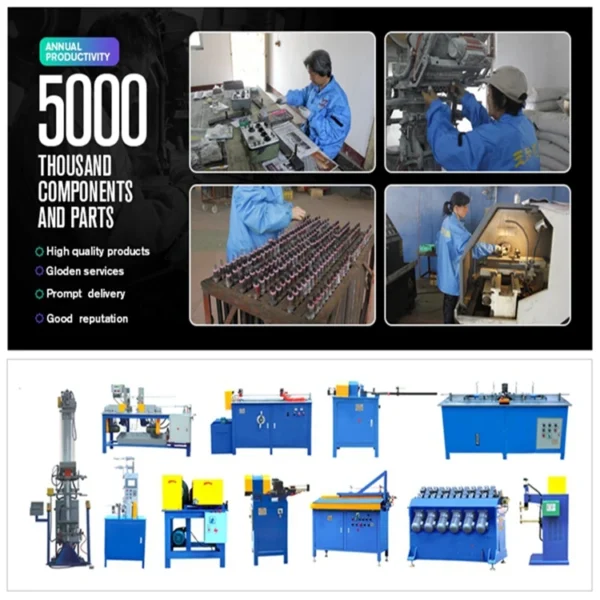

Ettevõtte profiil
Self-limiting Electric Heating Cable
KKK
1. kes me oleme?Asume Jiangsus, Hiina, alusta 2010, müü Okeaaniasse(50.00%),Põhja-Ameerika(30.00%),Lõuna-Ameerika(10.00%),Lõuna-Euroopa(10.00%). Kokku on umbes 11-50 inimesed meie kontoris.2. kuidas saame tagada kvaliteedi?Enne masstootmist alati tootmiseelne proov;Alati lõplik ülevaatus enne saatmist;3.mida saate meilt osta?Kassetisoojendi/sissevalatav kütteseade/ringlussoojendi/mootoriploki kütteseade/avatud spiraaliga kütteseade, Uimedega kütteseade/ribasoojendi/kütteelement4. miks peaksite ostma meilt, mitte teistelt tarnijatelt?1.Rohkem kui 40 aastane kogemus
2.UL CE RoHS CQC ISO9001:2008
3.R&D meeskond
4.Esitage katsearuanne
5.Toetage toote disaini5. milliseid teenuseid saame pakkuda?Aktsepteeritud tarnetingimused: FOB,CFR,CIF,EXW,DDU,Kiire kohaletoimetamine;Aktsepteeritud maksevaluuta:USD,EUR,CNY;Aktsepteeritud maksetüüp: T/T,L/C,D/P D/A,MoneyGram,Krediitkaart,PayPal,Western Union,sularaha,Tingdeponeerimisnõue;Räägitud keel:Inglise,hiina keel,prantsuse keel
