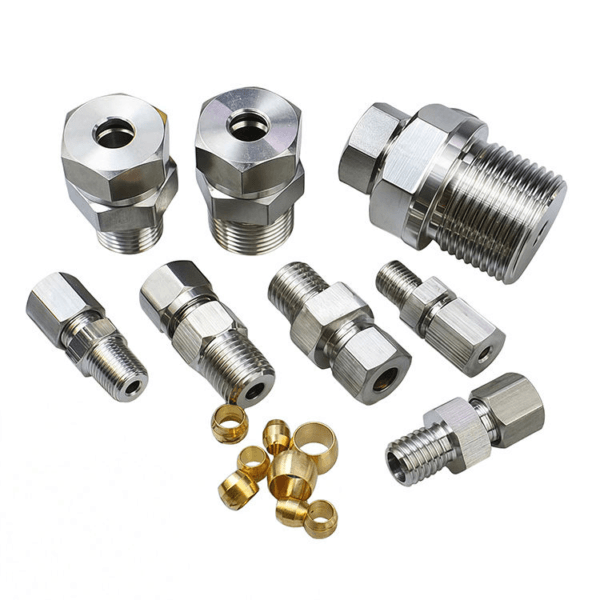

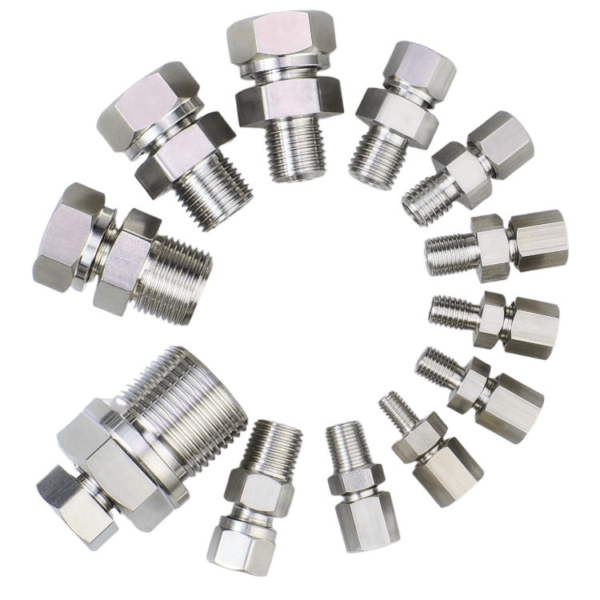

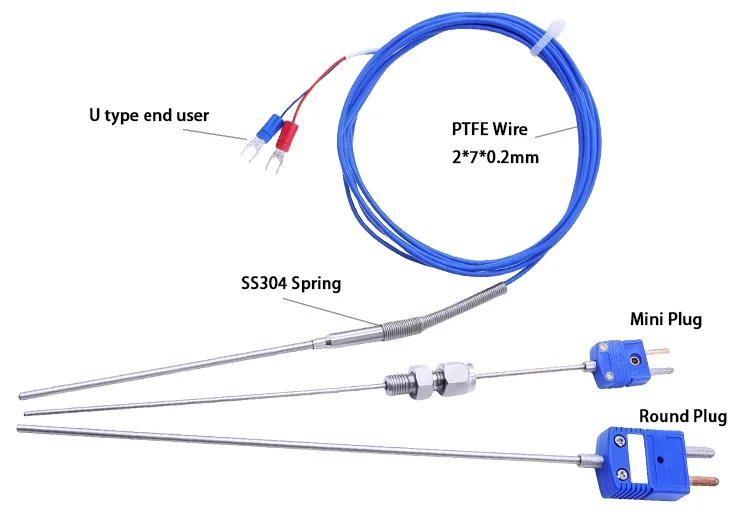

M6 M8 PT1/8 Stainless Steel Thermocouple Sensor with Adjustable Ferrule Fitting Screw OEM & ODM Customizable
M6 M8 PT1/8 Stainless Steel Thermocouple Sensor with Adjustable Ferrule Fitting Screw OEM & ODM Customizable
Descripción
M6 M8 PT1/8 Stainless Steel Thermocouple Sensor with Adjustable Ferrule Fitting Screw OEM & ODM Customizable
Descripción del Producto

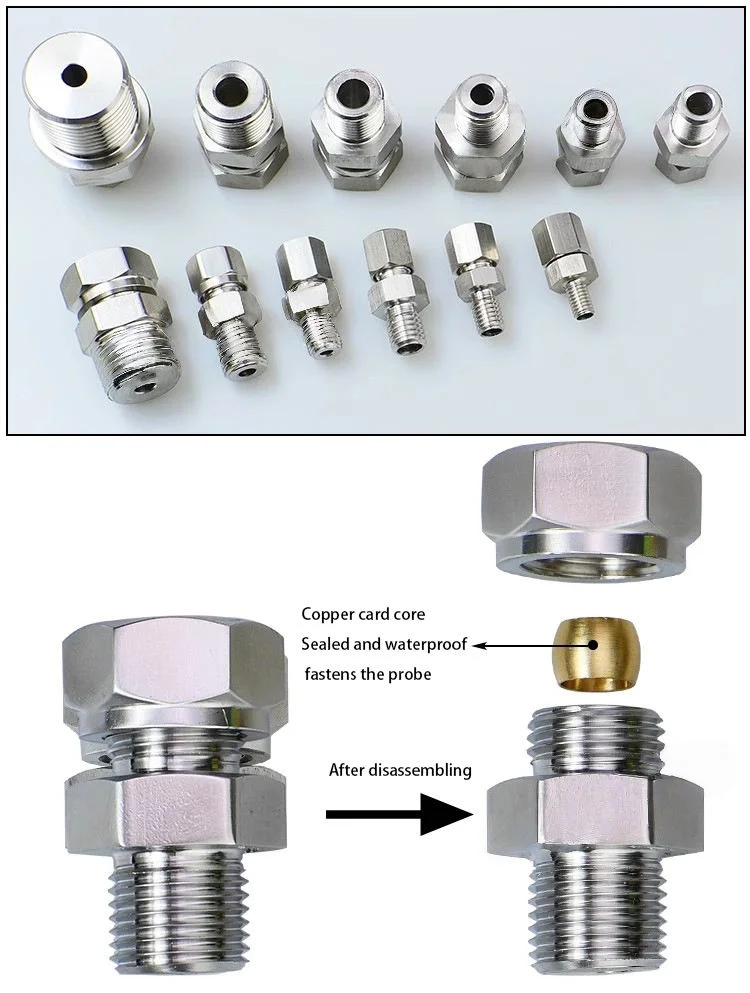

Ferrule threads are a type of thread used for pipe connections, typically used with compression fittings. They work by squeezing a ferrule (a metal ring) between the fitting and the pipe, creating a tight, sealed connection. This eliminates the need for welding or thread cutting, making them suitable for applications such as high-pressure fluid systems.
Especificación
ferrule thread | |||
Nombre | ferrule thread | material | SS304 |
Hilo | Metric threads such asM6*1/M8*1/M8*1.25/M10*1/M10*1.5/M12*1/M12*1.5/M12*1.75/M14*1.5/M16*1.5/M18*1.5/M20*1.5/M27*2 Inch thread sizes:1/2/3/4/6/8/11/12/13/14/16/17/18/19/20/21/22/23/24/25/26/27/27/28/29/30/31/32/33/34/36/37/38/39/39/30/31/32 …0/ | ||
Pairable probe diameter | 1/1.5/2/3/4/5/6/8/10/12/14/16/18/20milímetros | ||
Solicitud | non-corrosive media such as water, aceite, and gas (within 1MPA) |

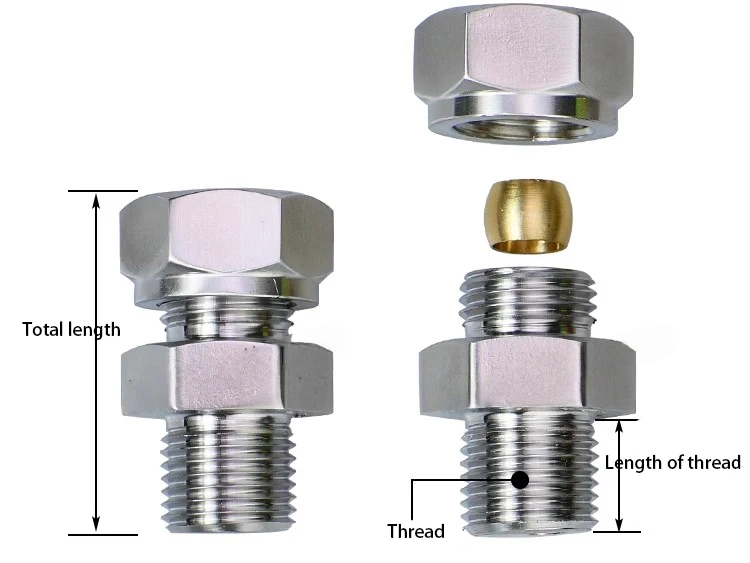

Hilo | Length of Thread | Diameter of inner hole | Largo total |
M6*1 | 10milímetros | 1/1.5/2/3/4milímetros | 30milímetros |
M8*1 | 11milímetros | 1/1.5/2/3/4/5milímetros | 31milímetros |
M8*1.25 | 11milímetros | 1/1.5/2/3/4/5milímetros | 30milímetros |
M10*1 | 12milímetros | 1/1.5/2/3/4mm and so on | 33milímetros |
M10*1.5 | 12milímetros | 1/1.5/2/3/4mm and so on | 33milímetros |
M12*1 | 12.5milímetros | 1/1.5/2/3/4mm and so on | 34milímetros |
M12*1,5 | 12milímetros | 1/1.5/2/3/4mm and so on | 34milímetros |
M12*1.75 | 15milímetros | 1/1.5/2/3/4mm and so on | 33milímetros |
M14*1.5 | 14milímetros | 1/1.5/2/3/4mm and so on | 35milímetros |
M16*1.5 | 13milímetros | 1/1.5/2/3/4mm and so on | 38milímetros |
M18*1.5 | 14milímetros | 1/1.5/2/3/4mm and so on | 34milímetros |
M20*1.5 | 14milímetros | 1/1.5/2/3/4mm and so on | 39milímetros |
M27*2 | 21.5milímetros | 3/4/5/6/8mm and so on | 48milímetros |
PT1/8 | 11milímetros | 1/1.5/2/3/4mm and so on | 32milímetros |
PT1/4 | 11milímetros | 1/1.5/2/3/4mm and so on | 35milímetros |
PT3/8 | 14milímetros | 1/1.5/2/3/4mm and so on | 35milímetros |
PT1/2 | 13milímetros | 1/1.5/2/3/4mm and so on | 37milímetros |
PT3/4 | 14milímetros | 3/4/5/6/8mm and so on | 35milímetros |
Solicitud
Embalaje & Entrega
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Perfil de la empresa
we have passed the industry qualification certification to protect the product quality. We provide one-stop procurement services to reduce the procurement cost for customers.We offer a service of batch remittance to alleviate the pressure on customers’ capital turnover.
Preguntas más frecuentes
1. quienes somos?Estamos basados en Jiangsu, Porcelana, start from 2021,sell to North America(90.00%),Domestic Market(10.00%). Hay total sobre 11-50 personas en nuestra oficina.2. ¿Cómo podemos garantizar la calidad??Siempre una muestra de preproducción antes de la producción en masa.;Siempre inspección final antes del envío.;3.¿Qué puedes comprarnos??Elemento calefactor, Ventilation Products, Thermocouple4. ¿Por qué debería comprarnos a nosotros y no a otros proveedores??we have passed the industry qualification certification to protect the product quality. We provide one-stop procurement services to reduce the procurement cost for customers.5. ¿Qué servicios podemos proporcionar??Condiciones de entrega aceptadas: ENGAÑAR,EXW,DDP；Moneda de pago aceptada:Dólar estadounidense;Tipo de pago aceptado: T/T,carta de crédito,D/P D/A;Lenguaje hablado:Inglés,Chino,Francés
