260C SS304 Sealed Fixed Thread Screw Thermocouple K Type Thermocouple G1/4 Waterproof Temperature Sensor
260C SS304 Sealed Fixed Thread Screw Thermocouple K Type Thermocouple G1/4 Waterproof Temperature Sensor
Descripción
260C SS304 Sealed Fixed Thread Screw Thermocouple K Type Thermocouple G1/4 Waterproof Temperature Sensor
Descripción del Producto
A Type K thermocouple refers to any temperature sensor containing Chromel and Alumel conductors, that meets the output requirements as stated in ANSI/ASTM E230 or IEC 60584 for Type K thermocouples. This may be an immersion sensor, a surface sensor, wire or another style of sensor or cable.
Nombre | K Type Thermocouple |
Material of probe | SS304( customized material) |
Test Temp. Range | -40~+260℃ |
Clase | 1 class |
End User | tipo U, Pin type , Plug or bare wire(personalizado) |
Using environment | Liquid nitrogen, cold storage, food processing plants, scientific research laboratories, etc.. |
Especificación
ConductorMaterial | Tipo | Graduación | Continuous using temperature | Short-term using temperature |
PtRh10-Pt | WRP | S | 0-1300C | 0-1600C |
PtRh30-PtRh6 | WRR | B | 0-1600C | 0-1800C |
PtRh13-Pt | WRQ | R | 0-1300C | 0-1600C |
NiCrSi-NiSi | WRM | norte | 0-1000C | 0-1100C |
NiCr-NiSi | WRN | k | 0-900C | 0-1000C |
Constante de NiCr | WRE | mi | 0-600C | 0-700C |
Fe-constante | FRM | j | 0-500C | 0-600C |
Con-Konstantan | CMR | t | 0-350C | 0-400C |

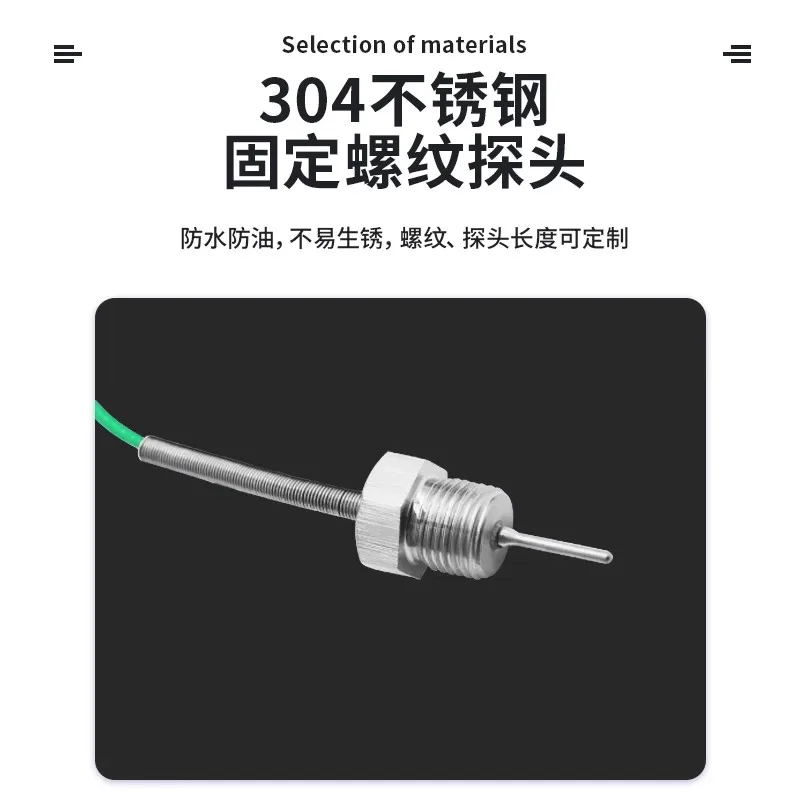

304 Fixed Thread
* Fast Response
* Dia:0.5mm~3mm
PTFE K Thermocouple wire
*water proof
*Anti-interference
Embalaje & Entrega
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
