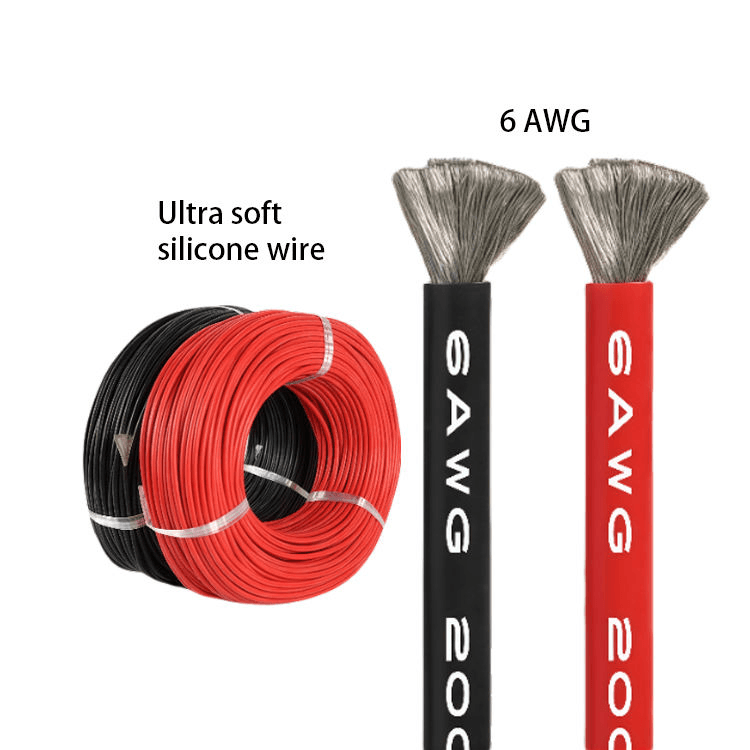

-60-200C 600V 6 Awg Ultra Flexible Electric Silicone Rubber Wire 0.08mm Tinned Cooper Wire Heat Resistant Heating Equipment
-60-200C 600V 6 Awg Ultra Flexible Electric Silicone Rubber Wire 0.08mm Tinned Cooper Wire Heat Resistant Heating Equipment
Descripción
It is suitable for a variety of home appliances, lighting fixtures, electronic equipment, temperature sensors, etc.The wire insulation material uses high-quality silicon rubber, has excellent high temperature and low temperature resistance, has excellent high voltage resistance, stable electrical insulation performance, and the conductor is flexible and easy to install.
Descripción del Producto
Especificación
Silicone Cable | |
Aislamiento | Silicone Rubber |
Conductor | Tinned copper |
Rango de temperatura | 200℃ |
Rated Voltage | 300V/600V |
Colour | White-Blue-Red-Black-Brown-Yellow-Green-Transpanrent-Yellow/Green |
Applications | metalurgia,industria química,petroleum,power generation,defense and scientific research,and cables for connection betweenthermocouples and temperature display instrument. |
Conductor | Aislamiento | Electrical Characteristic | Embalaje | ||||||
Guage | Conductor construction No./mm | Sectionmm | Diametermm | Insulation thicknessmm | Outer Diametermm | Conductor Resistance Ohm/KM | Maximun CurretA | Mt/Coils | KG/Coil |
95mm2 | 19000/0.08 | 95 | 12.75 | 2.65 | 18 | 0.18 | 500 | 50 | 55 |
75mm2 | 15000/0.08 | 75 | 11.5 | 2.4 | 15.5 | 0.45 | 400 | 50 | 40 |
50mm2 | 10000/0.08 | 50 | 9.2 | 2.4 | 14 | 0.63 | 300 | 50 | 28 |
3 | 6700/0.08 | 33.5 | 7.75 | 2.4 | 13 | 0.89 | 200 | 50 | 20 |
4 | 5000/0.08 | 25 | 6.55 | 2.4 | 11 | 1.25 | 180 | 100 | 15 |
5 | 4000/0.08 | 20 | 5.85 | 1.85 | 9.5 | 1.5 | 160 | 100 | 24 |
6 | 3200/0.08 | 16 | 5.25 | 1.65 | 8.5 | 1.9 | 140 | 100 | 19.2 |
7 | 2400/0.08 | 12 | 4.55 | 1.35 | 7.2 | 2.6 | 100 | 100 | 14 |
8 | 1650/0.08 | 8.25 | 3.75 | 1.35 | 6 | 3.7 | 80 | 100 | 10 |
9 | 1200/0.08 | 6 | 3.2 | 1.35 | 6 | 5.5 | 60 | 100 | 8 |
10 | 1050/0.08 | 5.25 | 3 | 1.3 | 5.5 | 6.3 | 50 | 100 | 6.85 |
11 | 750/0.08 | 3.8 | 2.55 | 1.2 | 5 | 8.3 | 40 | 100 | 5.4 |
12 | 680/0.08 | 3.4 | 2.4 | 1.05 | 4.5 | 10 | 30 | 100 | 4.6 |
13 | 500/0.08 | 2.5 | 2.05 | 1 | 4 | 12.5 | 25 | 100 | 3.5 |
14 | 400/0.08 | 2 | 1.85 | 0.9 | 3.5 | 15 | 20 | 200 | 5.5 |
15 | 300/0.08 | 1.5 | 1.6 | 0.8 | 3.2 | 20 | 15 | 200 | 4.4 |
16 | 252/0.08 | 1.26 | 1.45 | 0.75 | 3 | 25 | 10 | 200 | 3.75 |
17 | 210/0.08 | 1.05 | 1.35 | 0.68 | 2.7 | 30 | 8 | 200 | 3 |
18 | 150/0.08 | 0.75 | 1.15 | 0.55 | 2.3 | 39.5 | 6 | 400 | 2.25 |
20 | 100/0.08 | 0.5 | 0.95 | 0.45 | 1.8 | 63 | 5 | 400 | 2.9 |
22 | 60/0.08 | 0.3 | 0.72 | 0.45 | 1.7 | 88.5 | 3 | 400 | 2.15 |
24 | 40/0.08 | 0.2 | 0.58 | 0.45 | 1.6 | 97.6 | 2 | 400 | 1.7 |
26 | 30/0.08 | 0.15 | 0.5 | 0.45 | 1.5 | 125 | 1.5 | 400 | 1.4 |
28 | 16/0.08 | 0.08 | 0.37 | 0.4 | 1.2 | 225 | 0.8 | 1500 | 3.6 |
30 | 11/0.08 | 0.055 | 0.31 | 0.3 | 0.8 | 335 | 0.6 | 2500 | 3.5 |
Solicitud
Embalaje & Entrega
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Preguntas más frecuentes
1. quienes somos?Estamos basados en Jiangsu, Porcelana, start from 2021,sell to North America(90.00%),Domestic Market(10.00%). Hay total sobre 11-50 personas en nuestra oficina.2. ¿Cómo podemos garantizar la calidad??Siempre una muestra de preproducción antes de la producción en masa.;Siempre inspección final antes del envío.;3.¿Qué puedes comprarnos??Elemento calefactor, Ventilation Products, Thermocouple4. ¿Por qué debería comprarnos a nosotros y no a otros proveedores??we have passed the industry qualification certification to protect the product quality. We provide one-stop procurement services to reduce the procurement cost for customers.5. ¿Qué servicios podemos proporcionar??Condiciones de entrega aceptadas: ENGAÑAR,EXW,DDP；Moneda de pago aceptada:Dólar estadounidense;Tipo de pago aceptado: T/T,carta de crédito,D/P D/A;Lenguaje hablado:Inglés,Chino,Francés
