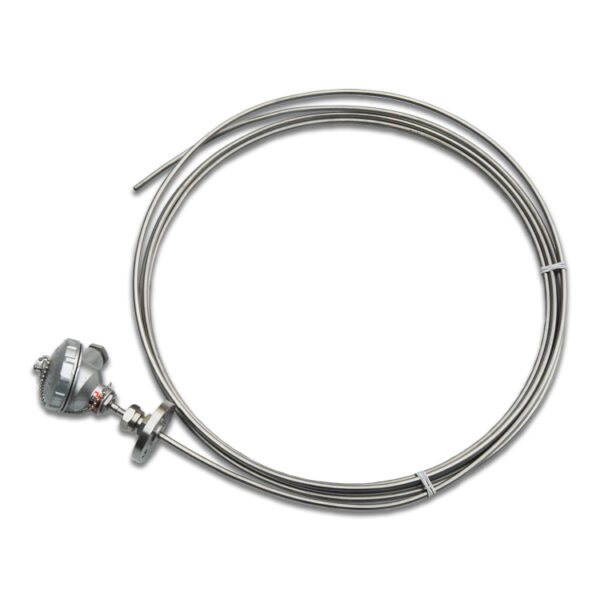

K-Type Thermocouple Probe Stainless Steel Sensor Armored Thermocouple
Armored Thermocouple is a temperature sensor consisting of a thermocouple enclosed in a protective metal sheath for use in harsh environments.
Beschreibung
Produktbeschreibung
K-Type Thermocouple Probe Stainless Steel Sensor Armored Thermocouple
Armoured thermocouple can bend, high pressure resistance, heat resistance, heat fast response time and strong and durable wait for an advantage, it has to do with prefabricated thermocouple, heat resistance, as measure temperature sensor, and display instrument, instrument and electronic regulator usually used, at the same time also can be used as a prefabricated thermocouple, thermal resistance of thermal components. It can directly measure the temperature of liquid, vapor and gas media and solid surfacein various production processes from 0℃ to 1100℃(Thermoelement), -200 ℃ to 500℃(thermal resistance).
Armored Thermocouple Features:①Less thermal response time, reduce the dynamic error; ②Flexible installation and use; ③Large measurement range; ④High mechanical strength, gute Druckfestigkeit
Working PrincipleThe electrode of armored thermocouple consists of two different conductor materials. When there is a temperature difference between the measuring end and the reference end, a thermoelectric potential will be generated, and the working instrument will display the temperature value corresponding to the thermoelectric potential.
Spezifikation
Modell | Abschluss | Temperature Range°C | Protective Tube Material | Mounting Fixtures |
WRPK-231 | S | 0~1300 | GH3039 | No fixture |
WRMK-231 | N | 0~1100 | GH3039 | |
0~800 | 1Cr18Ni9Ti | |||
WRNK-231 | K | 0~1100 | GH3030 | |
0~800 | 1Cr18Ni9Ti | |||
WREK-231 | E | 0~600 | 1Cr18Ni9Ti | |
WRCK-231 | T | 0~350 | 1Cr18Ni9Ti | |
WRFK-231 | J | 0~500 | 1Cr18Ni9Ti |
The thermal response time shall not exceed that specified in the following table :(s) | ||
Durchmesser(mm) | Thermoelement | |
Ungrounded | Grounded | |
2.0 | 0.5 | 0.4 |
3.0 | 1.2 | 0.6 |
4.0 | 2.5 | 0.8 |
5.0 | 4.5 | 1.2 |
6.0 | 6.0 | 2.0 |
8.0 | 8.0 | 4.0 |
Typ | Abschluss | Toleranzklasse | |||
Ⅰ | Ⅱ | ||||
Toleranzwert | Messbereich°C | Toleranzwert | Messbereich°C | ||
WRN | K | ±1,5°C | -40~+375 | ±2,5°C | -40~+333 |
±0,004/t/ | 375~1000 | ±0,0075/t/ | 333~1200 | ||
WRM | N | ±1,5°C | -40~+375 | ±2,5°C | -40~+333 |
±0,004/t/ | 375~1000 | ±0,0075/t/ | 333-1200 | ||
WRE | E | ±1,5°C | -40~+375 | ±1,5°C | -40~+333 |
±0,004/t/ | 375~800 | ±0,004/t/ | 333~900 | ||
WRF | J | ±1,5°C | -40~+375 | ±1,5°C | -40~+333 |
±0,004/t/ | 375~750 | ±0,004/t/ | 333~750 | ||
WRC | T | ±1,5°C | -40~+125 | ±1°C | -40~+133 |
±0,004/t/ | 375~350 | ±0,0075/t/ | 133~350 |
Details Bilder
Wasserdichte Anschlussdose
Das präzise Verschweißen von Gewinde und Schutzrohr sorgt für Dichtheit und Wasserdichtigkeit, Stabile Leistung, dauerhaft, lange lebensdauer
Nahtlose Schnittstelle
Schnittstelle zum Argon-Lichtbogenschweißen, Schweißen glatt
304 rostfreies Stahlrohr
Hohe Temperaturbeständigkeit, schnelle Antwort, hohe Präzision, stabilere Leistung
Bodenabdichtung
technology
Die Einführung der deutschen Dichtungstechnik, Schockfestigkeit und Druckfestigkeit
