Name: Water Immersion Stainless Steel 304 Tubular Heating Elements With Flange - A Pioneering Force In Electrical Heating Industry
Price: 8.00 USD
Availability: InStock

Beskrivelse

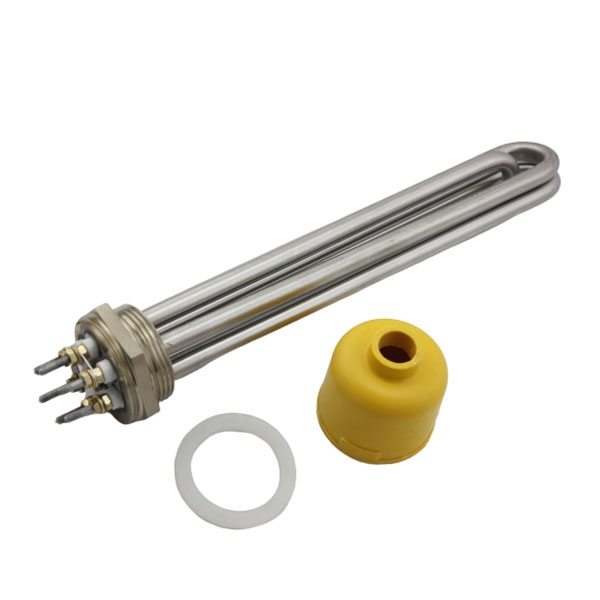

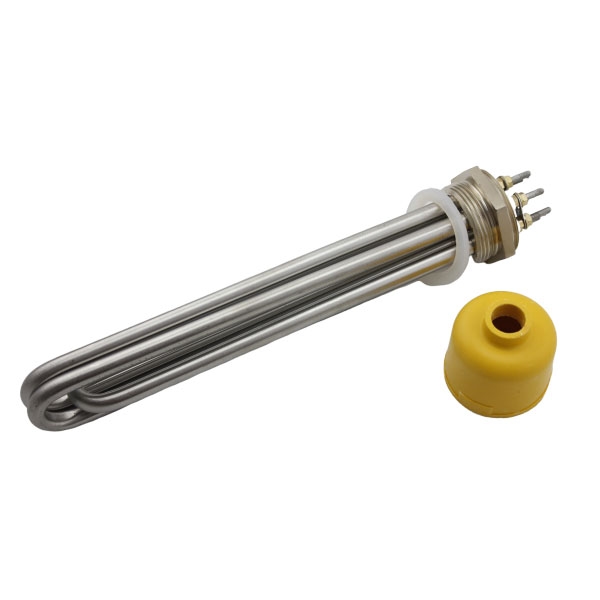

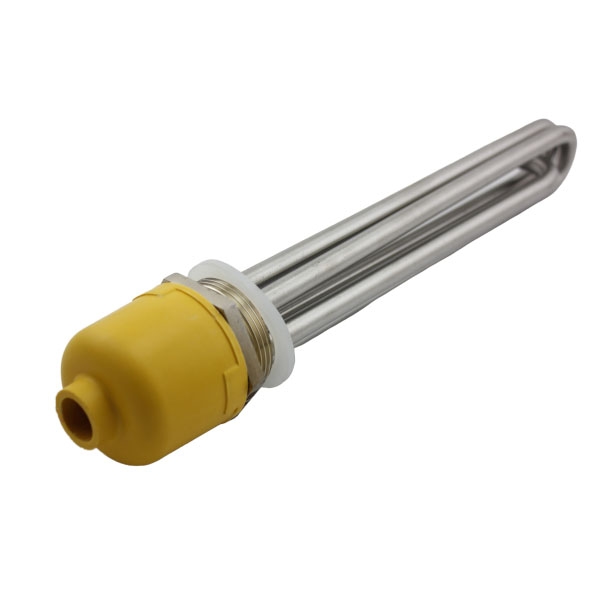

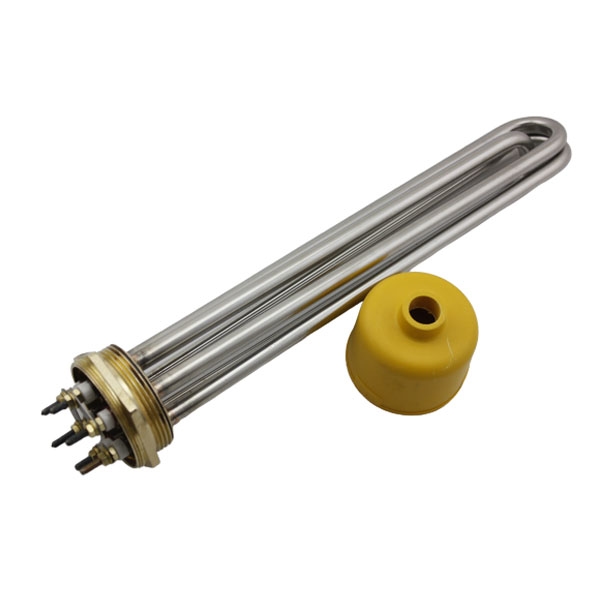

Water Immersion Stainless Steel 304 Tubular Heating Elements With Flange

Product introduction

Heat Water Flange Immersion Heater Element are designed for heating or temperature maintening of liquids, gas or mixture in static or circulation conditions.The design is based on customer process conditions: fluid to heat (type and properties), in/out temperature, pressure, heat exchange conditions (stagnant or flowing), and environment conditions (ATEX or not, onshore or offshore, etc.). Flange immersion heaters can be straight or L-shaped.

SPECIFICATIONS FOR flange immersion water heater

Flange size	DN 50 to DN 800
Screw plug size	1″- 3″
Rør diameter	8-16 mm
Immersion Length	150mm- 1500mm
Heating Element	3 elements, 4 elements, 6 elements, 10 elements etc under customer request
Wattage density	2-8W/cm2
Spænding	UP to 600V
Skede materiale	Rustfrit stål 304 316L 310S Copper Incoloy 800 840
Built in thermostat well	Built-in thermostat wells can be installed upon request. When ordering, please provide length BUILT-IN THERMOSTAT WELL andinternal diameter

Flange

Materiale:

Brass, Kobber, Rustfrit stål

Størrelse:

BSP 1″, 1 1/4″, 1 1/2″, 1 3/4″, 2″, 2 1/4″, 2 1/2″, 2 3/4″

Material of tube sheath

SS201

SS304

SS316

SS321

Incoloy 800

Titanium

Rørlængde	Rør diameter	Thread Diameter	Voltage/Power	Rørmateriale	Thread Material
190mm	10mm	1 1/2″	220V/380V/3KW	304DERES(customized)	304DERES(customized)
200mm	10mm	1 1/2″	220V/380V/4.5KW	304DERES(customized)	304DERES(customized)
250mm	10mm	1 1/2″	220V/380V/6KW	304DERES(customized)	304DERES(customized)
300mm	10mm	1 1/2″	220V/380V/9KW	304DERES(customized)	304DERES(customized)
350mm	10mm	1 1/2″	220V/380V/12KW	304DERES(customized)	304DERES(customized)
