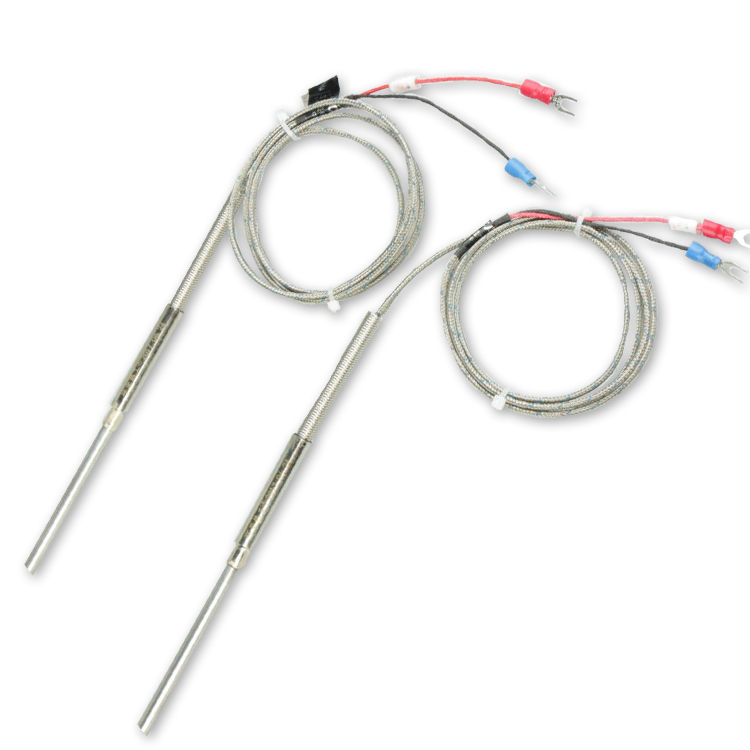

1mm Diameter SS304 mi Cable Probe Type Thermocouple 191 Type K Stainless Steel Probe Armored Thermocouple
Beskrivelse
1mm Diameter SS304 mi Cable Probe Type Thermocouple 191 Type K Stainless Steel Probe Armored Thermocouple
Produkt beskrivelse
Armored thermocouple can bend, high pressure resistance, heat resistance, heat fast response time and strong and durable wait for an advantage, it has to do with prefabricated thermocouple, heat resistance, as measure temperature sensor, and display instrument, instrument and electronic regulator usually used, at the same time also can be used as a prefabricated thermocouple, thermal resistance of thermal components.
It can directly measure the temperature of liquid, vapor and gas media and solid surfacein various production processes from 0℃ to 1100℃(termoelement), -200 ℃ to 500℃(thermal resistance).
Armored Thermocouple Features:①Mindre termisk responstid, reducere den dynamiske fejl; ②Flexible installation and use; ③Large measurement range; ④High mechanical strength, god trykmodstand
Specifikation
Produktnavn | Armored Thermocouple |
Type | Default K type (can be used as PT100/J/T/E/N, etc.) |
Produktmodel | WRNK-191 |
Temperaturområde | 0-1100 grader |
Probe diameter | There are 0.5/1.5/2/2.3/2.5/3/4/5/6/8/10 diameters for selection |
Sondens længde | Tilpasset efter kundens krav |
Blylængde | The default lead length is 1500mm under the price, which can be customized according to customer requirements |
Probe materiale | SS321, SS316L, SS310S, SS446, incl600, incl800, etc. |
Påmindelse: Jo større sondediameter, jo bedre temperaturmodstandseffekt.
Købere anmodes om at give det faktiske måleområde så meget som muligt, så vi kan tilpasse til den passende diameter og materiale.
Ny 304SUS flettet kappe med høj densitet
Høj korrosionsbestandighed og slidstyrke, bruge lang levetid og holdbarhed.
Sonde i rustfrit stål
Vælg national standard 304 rustfrit stål råmateriale.
Vær anti-interferens
Teflon højtemperatur sølvbelægning skjold tetrafluoro materiale, med anti-interferens evne.
Model | Graduering | Temperature Range°C | Protective Tube Material | Mounting Fixtures |
WRPK-231 | S | 0~1300 | GH3039 | No fixture |
WRMK-231 | N | 0~1100 | GH3039 | |
0~800 | 1Cr18Ni9Ti | |||
WRNK-231 | K | 0~1100 | GH3030 | |
0~800 | 1Cr18Ni9Ti | |||
WREK-231 | E | 0~600 | 1Cr18Ni9Ti | |
WRCK-231 | T | 0~350 | 1Cr18Ni9Ti | |
WRFK-231 | J | 0~500 | 1Cr18Ni9Ti |
Den termiske responstid må ikke overstige den, der er angivet i følgende tabel :(s) | ||
Diameter(mm) | Termoelement | |
Ujordet | Jordet | |
2.0 | 0.5 | 0.4 |
3.0 | 1.2 | 0.6 |
4.0 | 2.5 | 0.8 |
5.0 | 4.5 | 1.2 |
6.0 | 6.0 | 2.0 |
8.0 | 8.0 | 4.0 |
Type | Graduering | Toleranceklasse | |||
Ⅰ | Ⅱ | ||||
Toleranceværdi | Måleområde°C | Toleranceværdi | Måleområde°C | ||
WRN | K | ±1,5°C | -40~+375 | ±2,5°C | -40~+333 |
±0,004/t/ | 375~1000 | ±0,0075/t/ | 333~1200 | ||
WRM | N | ±1,5°C | -40~+375 | ±2,5°C | -40~+333 |
±0,004/t/ | 375~1000 | ±0,0075/t/ | 333-1200 | ||
WRE | E | ±1,5°C | -40~+375 | ±1,5°C | -40~+333 |
±0,004/t/ | 375~800 | ±0,004/t/ | 333~900 | ||
WRF | J | ±1,5°C | -40~+375 | ±1,5°C | -40~+333 |
±0,004/t/ | 375~750 | ±0,004/t/ | 333~750 | ||
WRC | T | ±1,5°C | -40~+125 | ±1°C | -40~+133 |
±0,004/t/ | 375~350 | ±0,0075/t/ | 133~350 |
