Anti-Freeze Electric Underfloor Heating Tape Cable Pipe Heating Trace System for Water Pipe Freeze
Beskrivelse
Product Overview

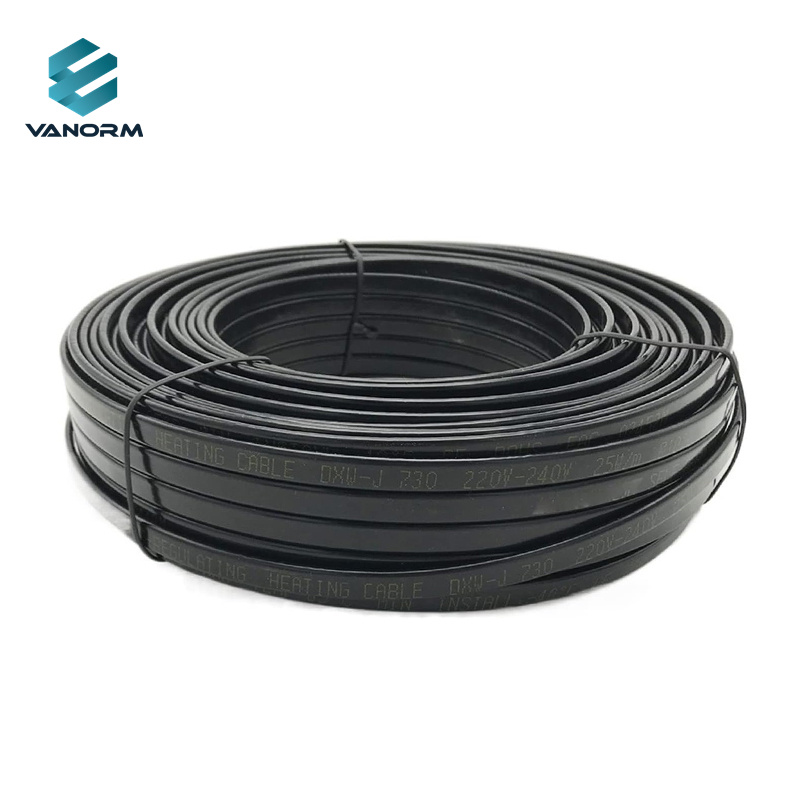

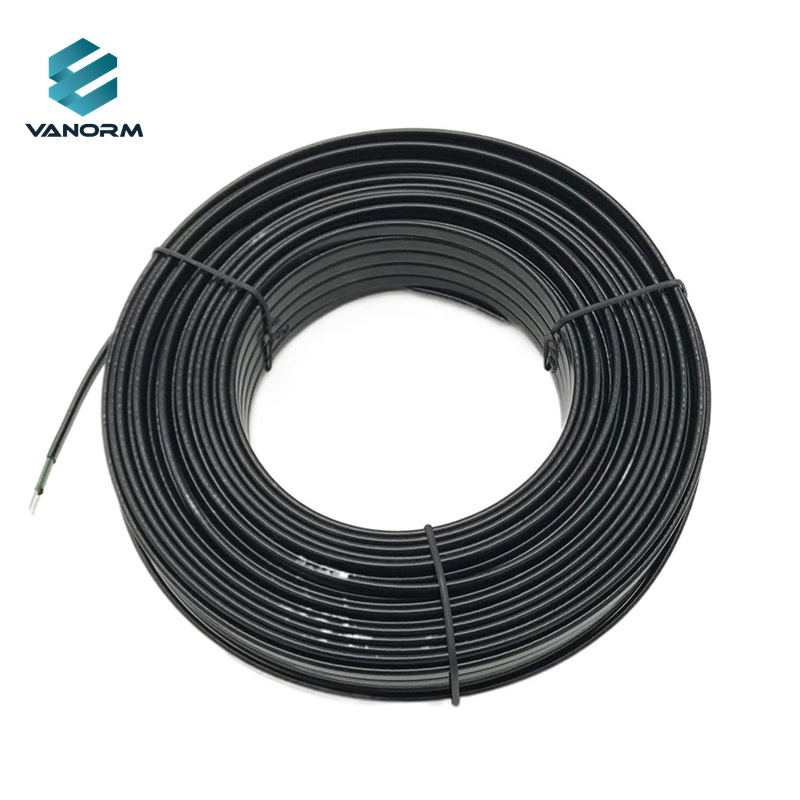

Low Temperature 65degree Pipes Freeze Protection Electric Self Regulating Heat Tracing Cable
Self regulating cables have an adaptable heat output and consist of two parallel bus wires embedded in a networked plastic heat element with surrounding carbon particles. If the temperature increases during operation, the plastic will expand and the distance between the carbon particles increases, resistance increases and output drops. When ambient temperature falls, this process is reversed and heat output increases – this is the principle of self regulation.
Self regulating cables intelligently adjust heat output according to ambient or air temperature – whenever the heat loss of the insulated pipe, tank or heated process increases (as ambient temperature drops), the heat output of the cable increases. Conversely, when the heat loss decreases (as the ambient temperature rises or product flows), the heating cable reacts by reducingits heat output.
Feature
• Energy efficient, self-regulating cable uses less energy when less heat is required.
•Easy to install, can be cut to any length (up to max circuit length) in the field.•lower installed cost than steam tracing, less maintenance expense and less down time.•Can be single overlapped without burn- out, which simplifies heat tracing of in-line process equipment such as valves, elbows andpumps.•Because of self-regulating, over temperature conditions are minimized.•Connection Kits reduce installation time.
Struktur

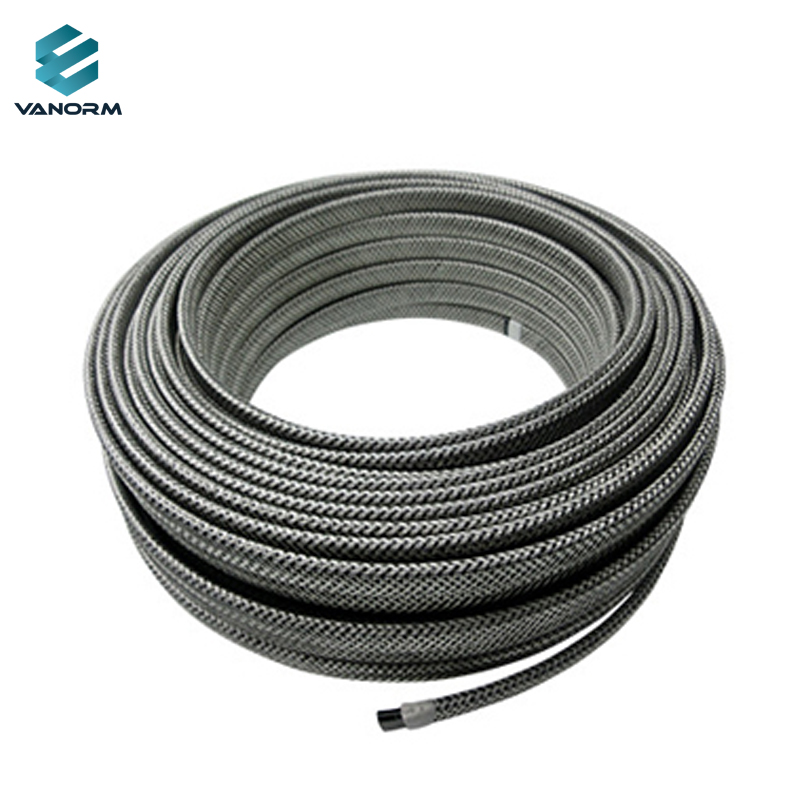

1 copper core wire: 7 × 0.23; 7 × 0.3; 7 × 0.42;2 conductive plastic layer: ordinary PTC; flame retardant PTC; fluorine-containing PTC;3 insulating layer: modified polyolefin; flame retardant polyolefin; fluorine-containing polyolefin; perfluorinated material;4 Shield: tinned soft round copper wire (covering density 80%);5 sheath layer: modified polyolefin; flame retardant polyolefin; fluorine-containing polyolefin; perfluorinated material;
Specifikation
Type | Strøm(W/M 10℃) | Max maintain temp(℃) | Max.exposure temp(℃) | Min. installation temp(℃) | Max. length of single power supply |
Low temperature series | 10,15,25,35 | 65℃±5℃ | 105℃ | -60℃ | 7*0.5 100meters;19*0.32 120meters. |
Medium temperature series | 35,45,50,60 | 105 ℃ ± 5 ℃ | 135℃ | -40℃ | 7*0.5 100meters;19*0.32 120meters |
High temperature series | 35,50,60 | 135 ℃ ± 5 ℃ | 155℃ | -30℃ | 7*0.5 100meters;19*0.32 120meters |
1. Standard color: sort, gray low temperature electric heating2. Temperaturområde: the highest maintenance temperature of 65 ° C, the highest surface temperature of 70 ° C ± 5 ° C maximum temperature: modified polyolefin 105 ° C, flame retardant polyolefin 135 ° C fluorine-containing polyolefin 180 ° C, perfluorinated material 205 ° C.3. Construction temperature: Minimum: -60 °C4. Thermal stability: after cycling back and forth between 10 ° C and 99 ° C 300 times, the heat of the tropical heat is maintained above 90%5. Bending radius: 25.4mm at 20°C at room temperature; 35.0mm at 30°C at low temperature6. Isolationsmodstanden: When the cable length is 100m and the ambient temperature is 75°C, shake it with 2,500VDC for 1 minute. The minimum value of insulation resistance (between conduction and shielding) is 1200MΩ. Working voltage: 12V 24V 36V 110V 220V 380V 10°C output power: 1OW/m 15W/m 20W/m 25W/m7. Explosion-proof mark: ExeIIT4
Detaljer Billeder
Ansøgning
Heating of buildings, pipelines, cold-storages, doors and warehouse floors, chute heating, gutter and roof defrosting, etc.
Installations instruktioner
Relaterede produkter
Our core competencies:
1.Vertical Manufacturing Expertise:The factory which we cooperated with operating professional production facilities, they maintain full control over Research and development. This vertical integration ensures stringent quality compliance (ISO 9001, CE,CQC,Rohs, UL) and enables competitive pricing without intermediaries.
2.Dual-Channel Procurement Solutions:Direct OEM Services, Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
3.Direct OEM Services: Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
4.Technical Partnership Model:Beyond transactional engagements, we provide ventilation system design and Energy efficiency audits for heating solutions,multilingual after-sales technical support.
5.Innovation and Sustainability:Investing 8% of annual revenue in R&D to be committed to creating better new products.
2.Dual-Channel Procurement Solutions:Direct OEM Services, Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
3.Direct OEM Services: Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
4.Technical Partnership Model:Beyond transactional engagements, we provide ventilation system design and Energy efficiency audits for heating solutions,multilingual after-sales technical support.
5.Innovation and Sustainability:Investing 8% of annual revenue in R&D to be committed to creating better new products.
Certificeringer
Our products had passed the CE CQC UL and Rohs certificated.
Product Packaging Solutions
1.Our services include individual unit packaging with optional labeling to streamline operations and reduce time costs.
2.We provided fumigated solid wood pallets for heavy-duty exports and durable plywood crates for lighter loads, exempt from fumigation.
3.All solutions adhere to international trade standards, including certification for shipments to the US, Canada, and the EU, ensuring seamless customs clearance and pest control compliance.
2.We provided fumigated solid wood pallets for heavy-duty exports and durable plywood crates for lighter loads, exempt from fumigation.
3.All solutions adhere to international trade standards, including certification for shipments to the US, Canada, and the EU, ensuring seamless customs clearance and pest control compliance.
FAQ
1. Q:Hvem er vi?
EN:Vores fabrik blev etableret i 1996, og udenrigshandelssalgsteamet blev etableret i 20212.Q: Kan vi bruge vores egen speditør?
EN: Selvfølgelig. Vi kan sende det til dem.
3.Hvilke tjenester kan vi levere?Accepterede leveringsbetingelser: FOB,CFR,CIF,EXW,Hurtiglevering；Accepteret betalingsvaluta:USD,HKD,CNY;Accepteret betalingstype: T/T, PayPal, Kontanter;Talt sprog: engelsk,kinesisk
4. Q: Hvordan afgiver jeg en ordre?
EN: Venligst e-mail din ordre til os, og vi vil bekræfte med dig.
Før tilbud, vi vil gerne bekræfte produktinformationen med dig, såsom størrelse og mængde. I hvert fald, kontakt os venligst direkte via e-mail eller online besked.
5. Q: Hvordan garanterer vi kvalitet?
EN: Vi følger strengt produktionsstandarderne for kvalitetsstyring; Tjek værkstedet hver 2 timer; Og har sit eget forsknings- og udviklingsteam og laboratorium.
6. Q:Hvad kan du købe fra os?
EN: Elektriske apparater og Ventilationsprodukt; Hvis der er andre behov, vi kan også hjælpe kunder med at købe.
